Cub Cadet MMZ Rider - Manual (Page 32)

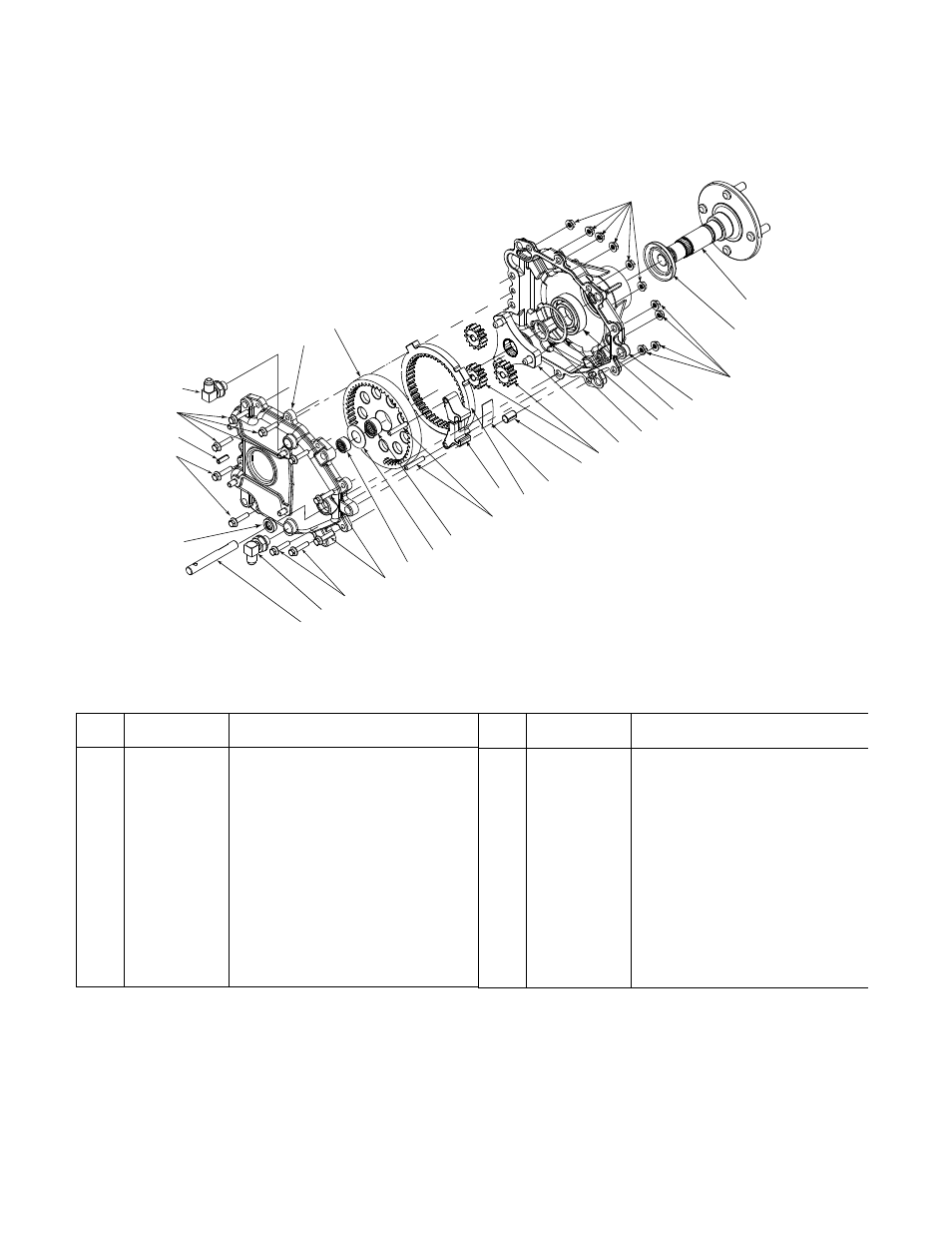

Cub Cadet Commercial M60 Tank - 2002 and prior years
28
1
16
7
15
22
11
12
2
13
10
19
14
24
9
23
21
5
18
18
5
8
5
17
7
6
5
20
4
3
REF.
NO.
PART
NO. DESCRIPTION
618-3110A Drive Ass’y Complete
1. 611-3012 Axle Assembly
710-0852 Ribbed Neck Stud
2. 618-3106 Carrier Assembly, Output
3. 618-3107 Gear Assembly, 51T Internal & 20T
4. 618-3109 Housing Ass’y
5. 710-1342 Hex Washer Screw 1/4-20 x 1-1/8
6. 711-1048 Brake Shaft
7. 712-3027 Hex Flange Lock Nut 1/4-20
8. 715-0156 Roll Pin
9. 715-0219 Dowel Pin
10. 715-3045 Bushing
11. 716-3015 Inverted Retaining Ring
12. 716-3018 Snap Ring
13. 717-3395 Spur Gear 13T
14. 717-3397 Ring Gear 46T
15. 719-3114 Axle Outer Housing
16. 721-0381 Oil Seal
17. 721-0393 Oil Seal
18. 727-3124 Elbow Fitting
19. 732-0752 Brake Shoe Spring
20. 736-0351 Shim Washer .76 x 1.5 x .030
736-0492 Shim Washer .76 x 1.5 x .010
736-0493 Shim Washer .76 x 1.5 x .020
21. 741-0665 Needle Bearing
22. 741-3033A Ball Bearing
23. 741-3080 Needle Bearing
24. 761-3049 Shoe Brake
