6 Utilities tab
32
File name
Concentration of cells pr. mL in the NucleoCassette (Cells/ml (cass.))
Multiplication factor (MF)
Concentration of cells pr. mL in the original cell suspension (Cells/ml (susp.))
Comment
Operator
On the top of the result list a header is printed. The header consists of the location , and
name of the exported file is printed path is printed, company information, address,
department, NucleoCounter serial no., print date and print time are also part of the
header. It is possible to change the information about company, address and depar tment,
see chapter 6.5 Report header.
The results from the active session can be printed (using the default printer) and/or
exported by clicking the “Print”- or the “Export”-button, respectively. Follow the directions
below.
1. When the “Print” or the “Export” button is activated a file list and three further
buttons appear, see Error! Reference source not found..

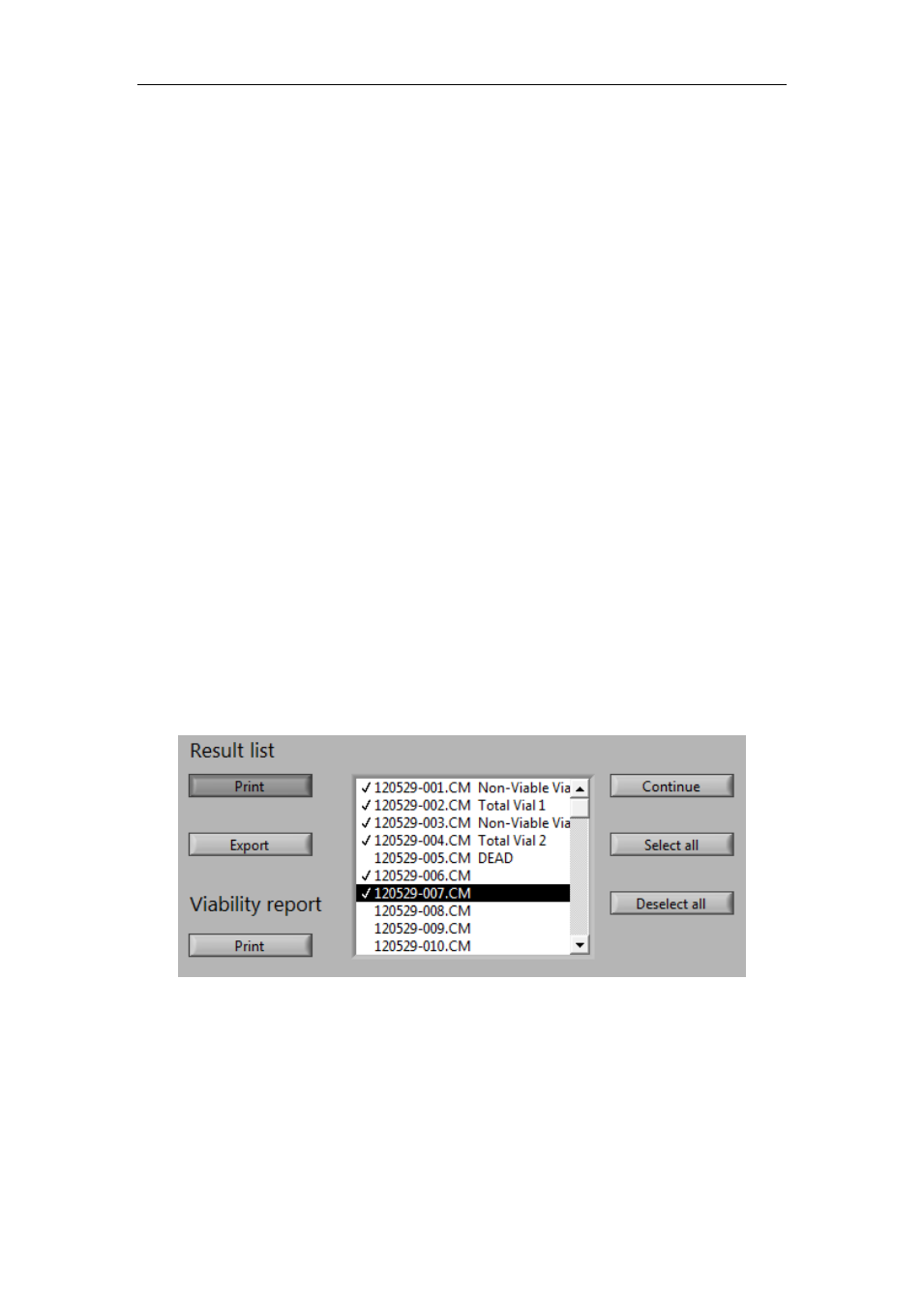

Figure 27 When the “Print”- or “Export”-button is activated a file list and three further
buttons (“Continue”, “Select all” and “Deselect all”) appear.
2. Select the files to be included using the “Select all” - or “Deselect all”-button or use
the mouse to select and deselect files individually (using a single click). Once a file
is selected, a small check mark (
) will appear next to the file. If only one file is
present in the list, you must use the “Select all” - or “Deselect all”-buttons.
