Page 45
Brookfield Engineering Labs., Inc.
page 45
Manual No. M14-223

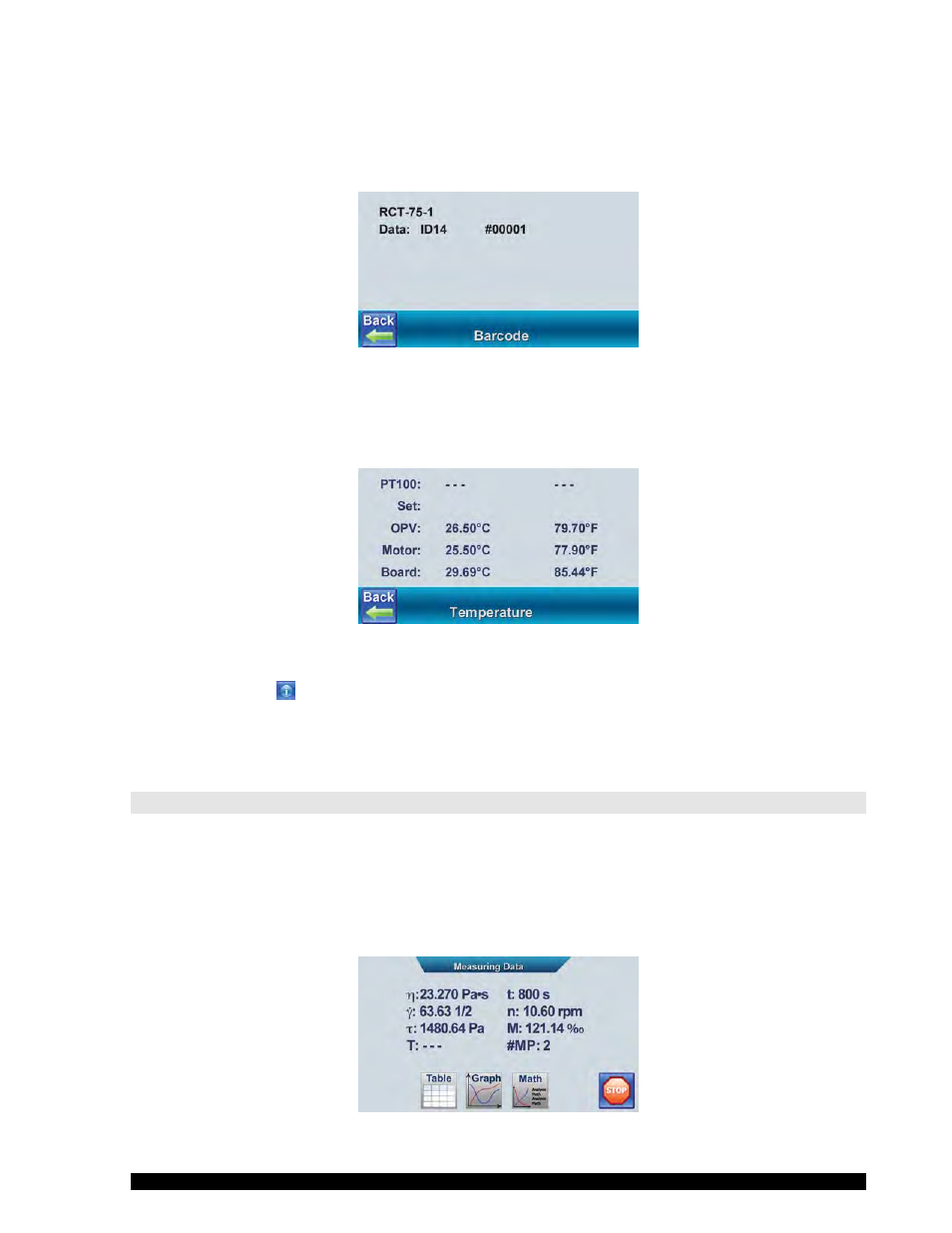

III.8.10 Barcode
Barcode identification for your measuring system can be checked using this feature:
Figure III-53
III.8.11 Temperature
This menu item is relevant for service work only and may be requested by our service technician:
Figure III-54
III.8.12 ABOUT
This screen identifies firmware and hardware information for your RST Rheometer.
III.9 Run Programm 1 to 11
The procedure and functionality of “Run Program 1” is the same as for Programs 2 through 11. Click on
the program icon for the test that you have stored in memory using the “Edit Program” feature. The test
will start up and execute automatically.
While your program is running, you will see the following measured values on the touchscreen:
Figure III-55
