Brookfield RST Rheometer - Manual (Page 40)

Brookfield Engineering Labs., Inc. page 40 Manual No. M14-223
The first block in your program test will normally be a ramp. If it is a torque or shear stress ramp, the
objective could be to determine a yield stress. If it is a speed or shear rate ramp, the objective could be to
establish a flow curve.
An alternative technique for moving the test block into the proram is to click on the test block, then click on
the empty block in the program sequence. The test block will appear in the empty space.

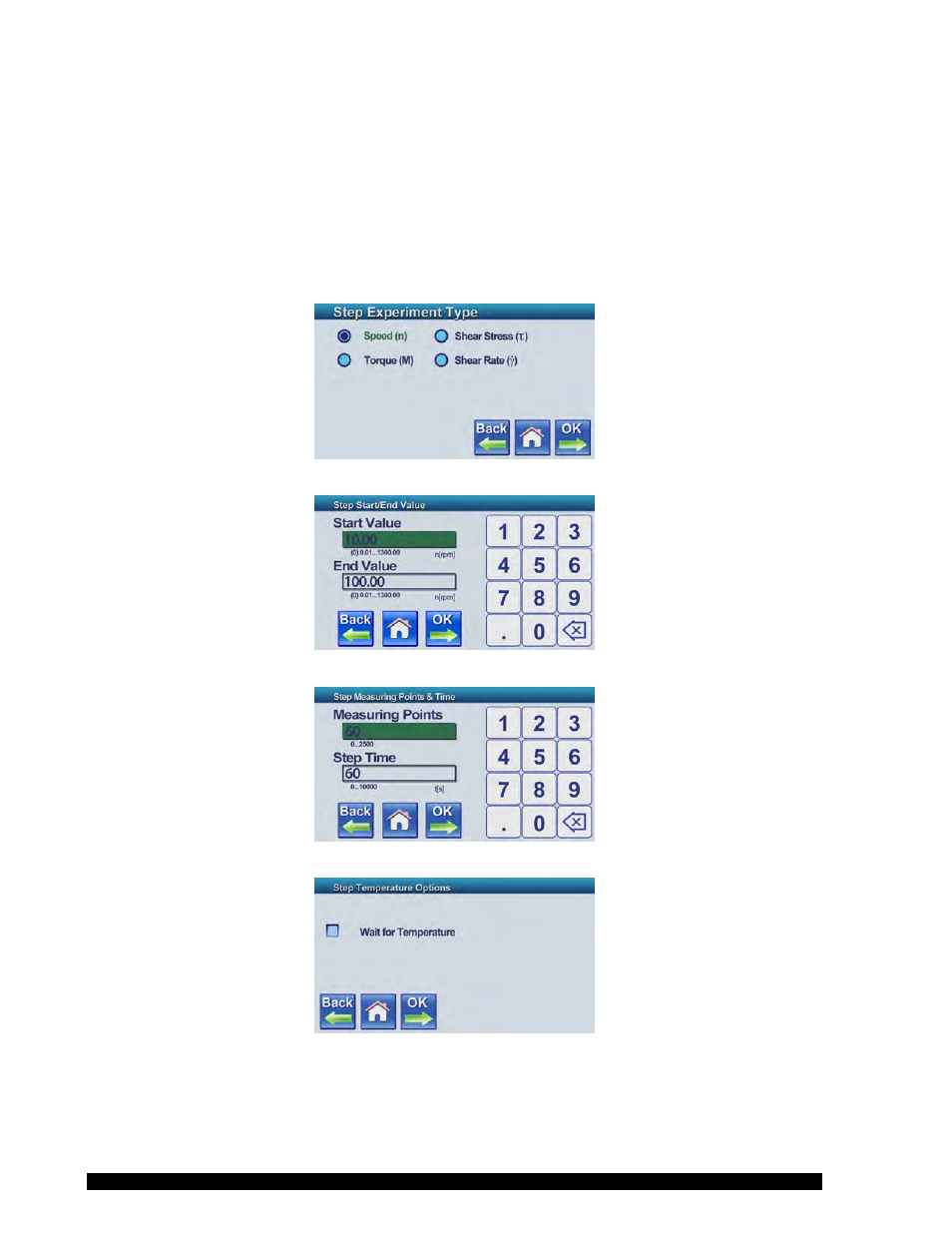

Click on each program block to enter values for the test parameters. The following screens provide the
choices for information that you must enter into the program test block so that you can run the test:
Figure III-41
Figure III-42
Figure III-43
Figure III-44
