Brookfield RST Rheometer - Manual (Page 27)

Brookfield Engineering Labs., Inc. page 27 Manual No. M14-223

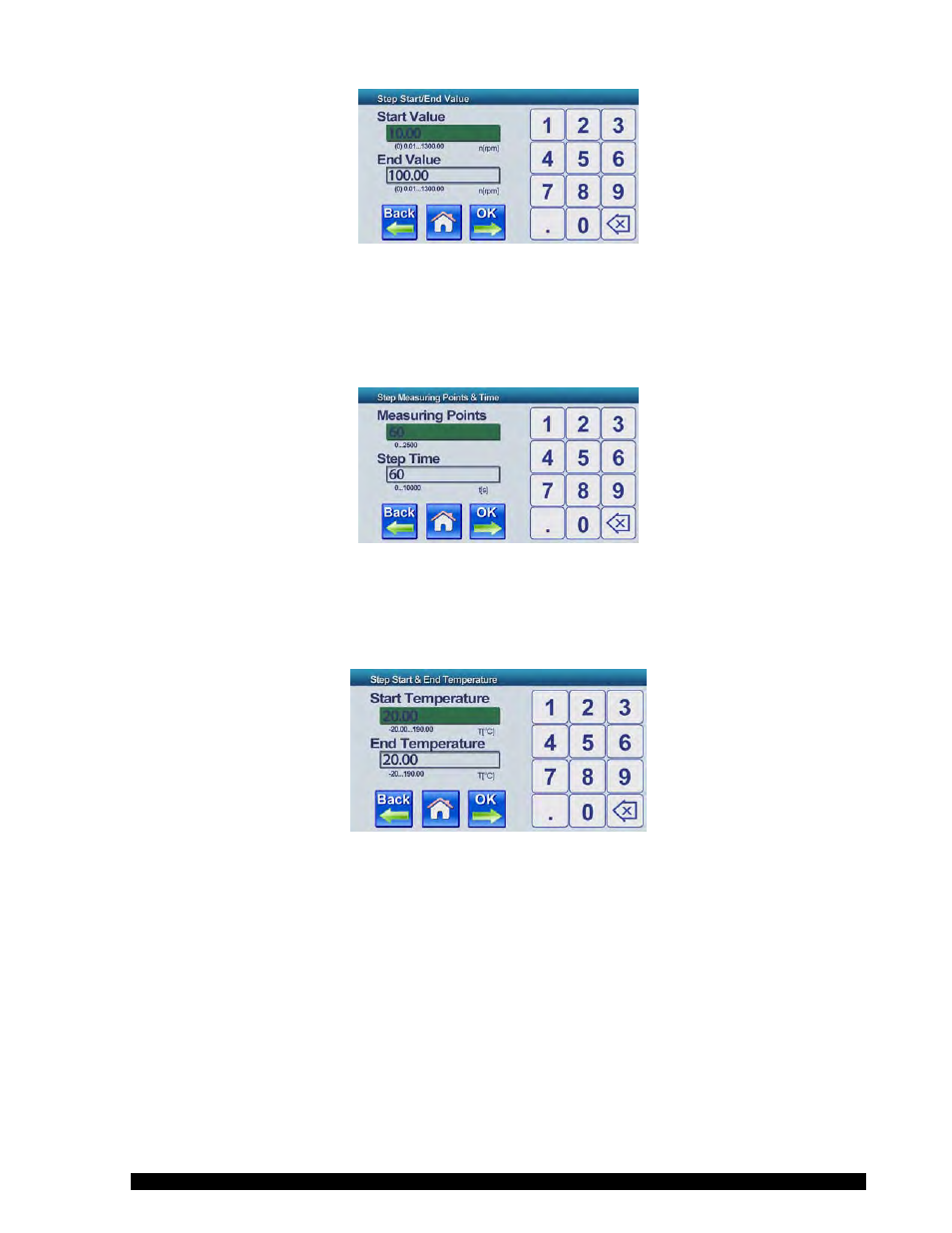

Figure III-9
Push OK to go to the next screen.
9. Enter the number of measuring points and total test time on this screen.
Figure III-10
Push OK to go to the next screen.
10. Check the box “Wait for Temperature” to control the temperature setpoint of the sample material
before the viscosity test begins. Push OK to go to the next screen.
Figure III-11
Enter a value for the control temperature on this screen. Push OK to go to the next screen.
11. Input the substance information for the test material if desired. You can use up to 25 alphanumeric
characters. This is an optional screen.
Push OK and the viscosity test will automatically start.
12. During the test execution, the following screen shows the parameters that are displayed:
