• Insert the socket of the DC cable into the “DC” connector on the back panel of the RST-CPS
stand and fasten it finger-tight.
• Plug the power cord into a grounded mains socket.
• Turn the RST-CPS Rheometer on again, if necessary.

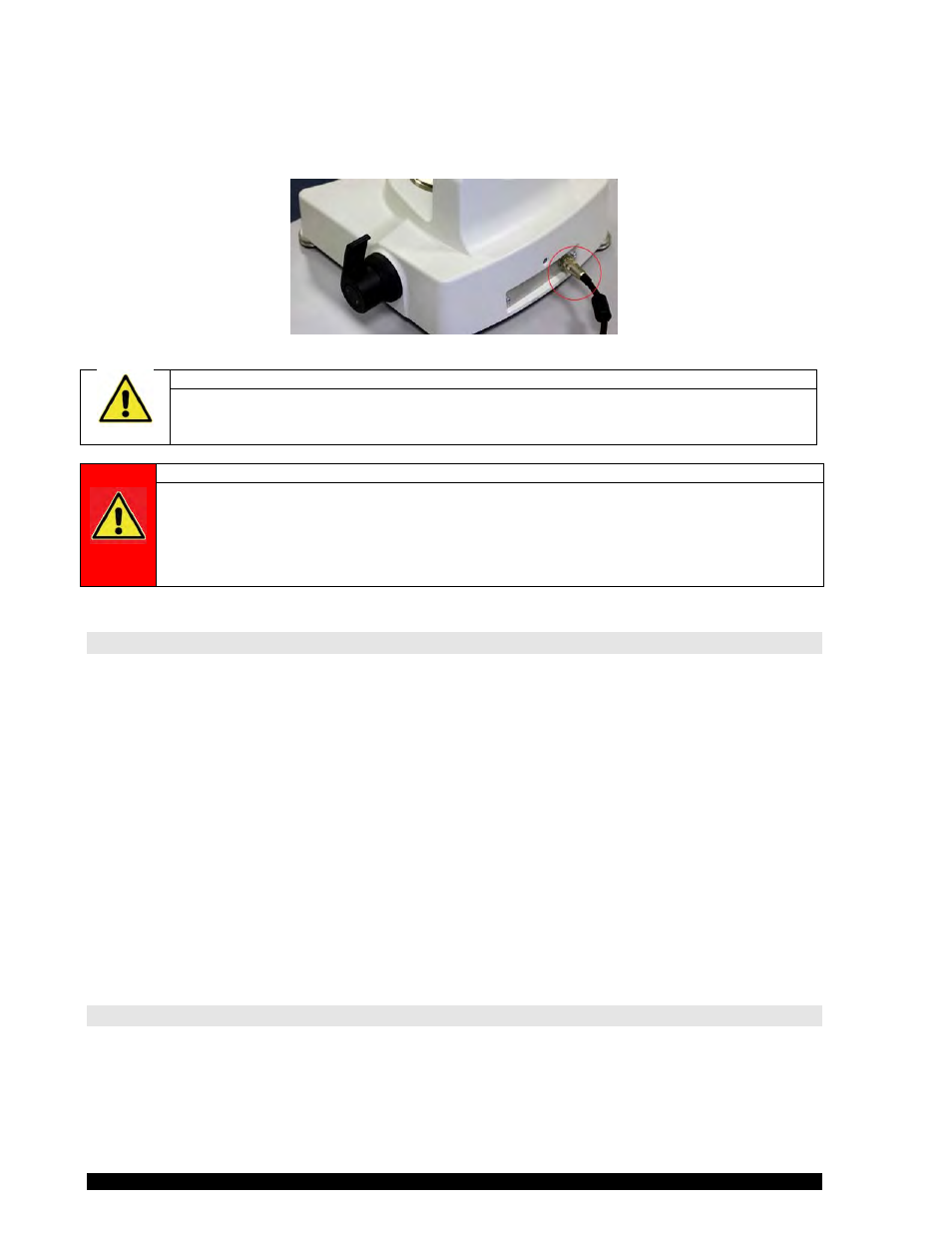

Figure II-9
Caution!
AC adapter
The AC adapter should not remain plugged in long when the socket of the DC cable is
disconnected from the “DC” connector on the back panel of the instrument.
Danger!
AC adapter
Be sure to observe the following instructions:
• Never reach into the AC adapter or touch its contact pieces!
• The AC adapter must lie open and not be covered.
• Position cables and AC adapter in a way to ensure that no-one will stumble over them.
• The AC adapter and the cables must never get into contact with liquids.
II.6 Printer Connection
For measurements without PC support the printer
• DYMO LabelWriter ®
This printer can be connected directly to the USB Host port of the RST Rheometer. To print the measured
values during measurement you must pre-select “Printer” as output device.
Connecting the printer DYMO LabelWriter
®
:
• Turn the RST Rheometer off with the mains switch on the back of the rheometer.
• Insert the printer connecting cable into the USB socket on the back panel of the RST Rheometer.
• Turn the RST Rheometer on again.
A standard USB printer connecting cable can be used to connect the printer. The cable is normally
delivered with the printer.
The printout of measuring results can only be guaranteed for the printer mentioned above. If you use other
printers or need extensive prints (e.g. graphic) or color print you should use the Rheo3000 software.
II.7 Computer Connection
If the RST Rheometer is to be operated in REMOTE mode with PC support (Rheo3000 program
package), connect the two devices using a data transmission line delivered by Brookfield with the USB
conncetion 2.0 or with the “RS232” socket on the back panel of the RST Rheometer:
• Turn the RST Rheometer off using the mains switch on the back of the instrument.
