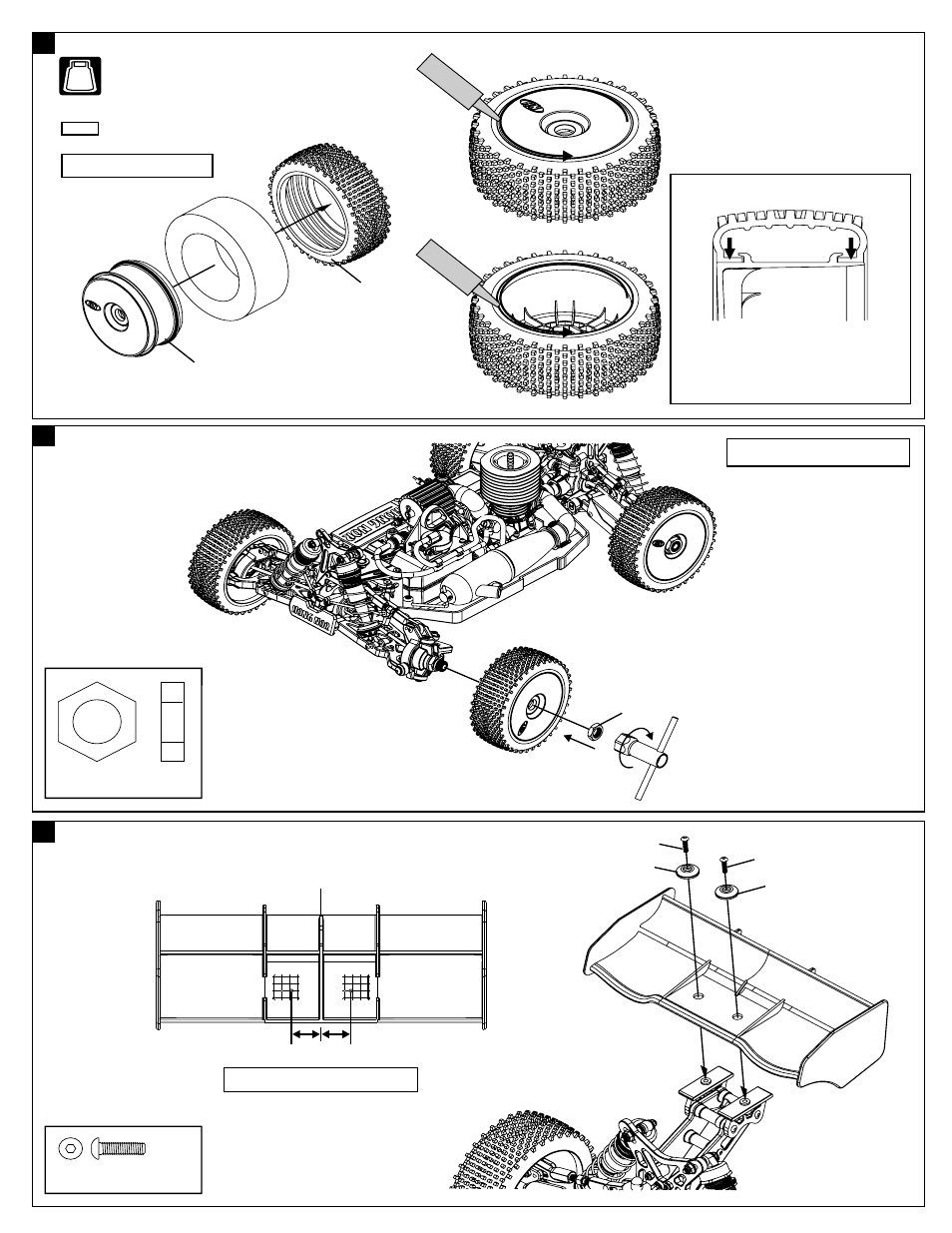

79 ASSEMBLY OF THE TIRES AND WHEELS
Make four tires are the same.
Step 1
T
IN
S
A
N
T
G
L
U
E
IN
S
T
N
T
A
L
U
E
G
•Use CA " Instant glue " and draw a line a round
the rim where it attaches the tire . When it is dry
glue the other side of the rim.
•Repeat the step and ensure the rim and tire are
fully glued.
Step detail
Agglutination place
NO.12
BAG
40550
Wheel Nut
.....x4
80 ASSEMBLY OF THE TIRES ONTO THE FRONT
KNUCKLE AND REAR HUB
Assemble both left and right sides.
40550 HARDCOATED
10994 HARDCOATED SERRATED
94003
3X10mm
Hex Screw
.....x2
19mm 19mm
Drill two 7mm holes for mounting.
81 ASSEMBLY OF THE WING
86072 YELLOW
86073 WHITE
86074 BLACK
80023
94003
94003
41355
41355
16015 WHITE
16016 YELLOW
16017 RED
16018 BLACK
16019 ORANGE
