Page 30

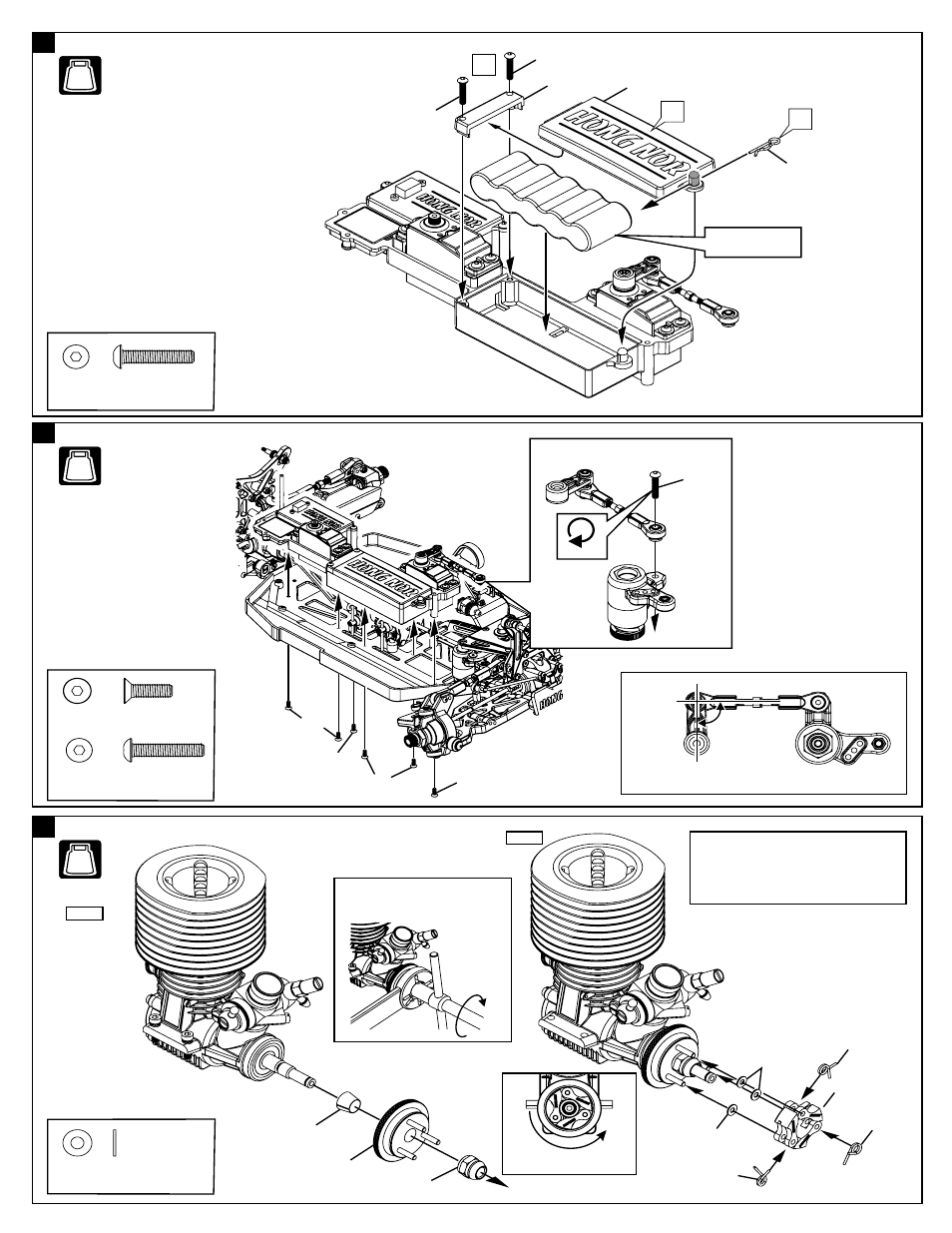

ASSEMBLY OF THE RADIO TRAY ONTO CHASSIS

NO.7

BAG

NO.11

BAG

ASSEMBLY OF THE BATTERY BOX AND RADIO TRAY

94059
2.6x6x0.5mm
Washer

.....x3

94005
3x15mm
Hex Screw

.....x2

ASSEMBLY OF THE CLUTCH

Step 1

Step 2

Tighten the flywheel using a
fly wheel and cross wrench.

Place the clutch shoes with the clutch
springs over the 3 pins of the flywheel.
Use a phillips screw driver or needle
nosed plier and bend the small end of
the clutch springs behind the pilot shaft
41510 then press down.

Engine rotation direction.

94005
3x15mm
Hex Screw

.....x1

NO.11

BAG

94019
3X10MM
Flat Head Hex Screw

.....x6

Tighten

Step detail

Note the direction of servo arm when servo is at neutral.

90 Degree

41358

37410

94005

41358

Receiver Battery 6V
Not included

94005

94019

38313

41509

41510

94059

41512

41511
