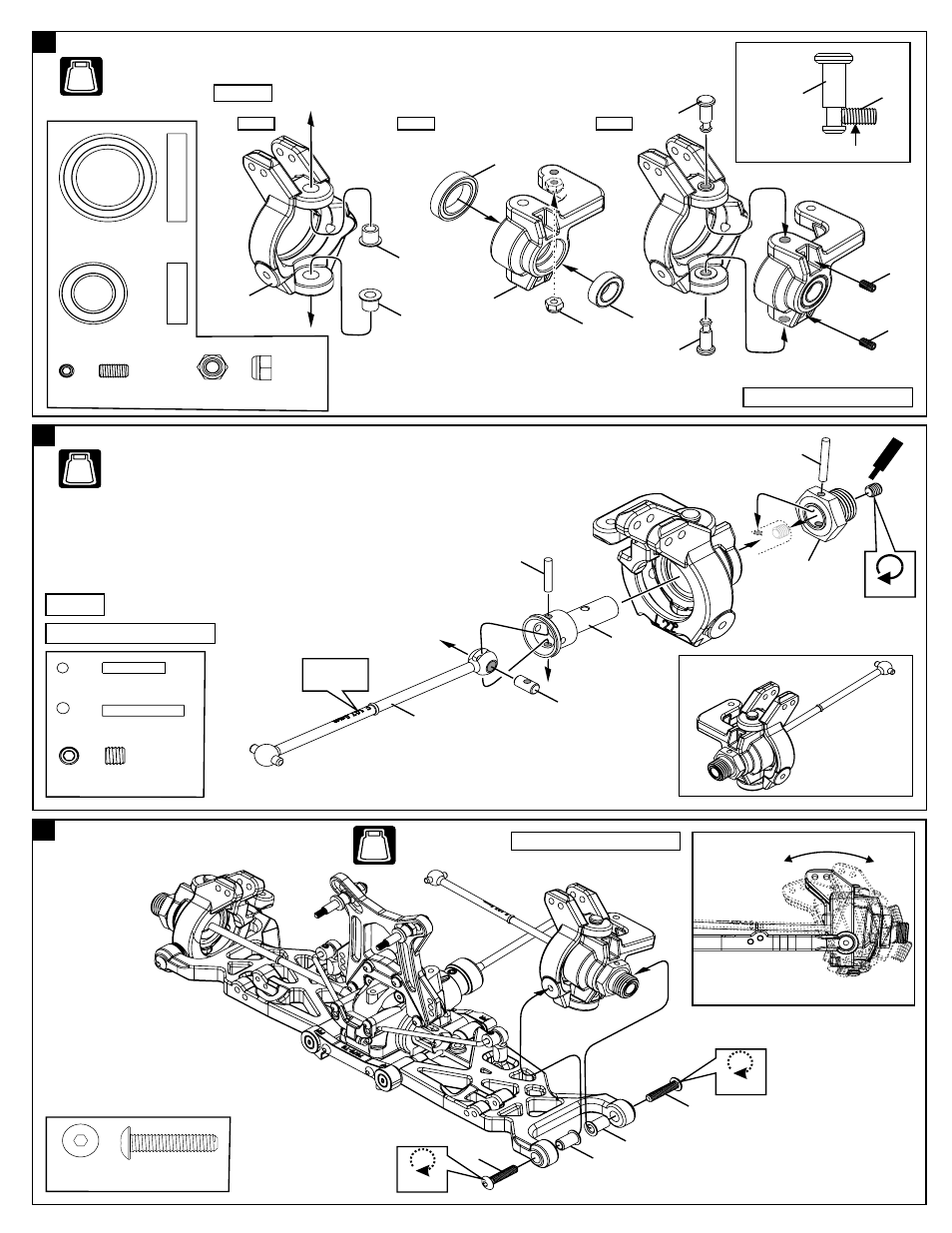

ASSEMBLY OF THE FRONT KNUCKLE ARMS

NO.2

BAG

Step 1

Step 2

Step 3

41348

41347

41361

41314

40527

41362

41314

94067

40527

41362
13x20x4mm
Ball Bearing

.....x2

41361
8x14x4mm
Ball Bearing

.....x2

94067
3x6mm
Set Screw

.....x2

Assemble both right and left sides.

LEFT SIDE

41314

94067

Step detail

Set Screw position

ASSEMBLY OF THE FRONT CVD INTO KNUCKLE ARMS

36055

94034

41307

41500

41306

41335

40526

.....x2

36055
2.5x16.8mm Pin

.....x2

94034
4x4mm
Set Screw

.....x2

NO.2

BAG

F 107.5mm
For Front

Assemble both right and left side.

LEFT SIDE

Right side

ASSEMBLY OF THE KNUCKLE ARMS
ONTO FRONT LOWER ARMS

94064

41315

.....x4

Ensure Free Movement

Step detail

NO.2

BAG

Do Not
Over Tighten

Assemble both right and left sides.

Tighten

94041

3mm Nylon Nut

.....x2

41335
2.5x12.8mm Pin

94067

94064

4x18mm
Hex Screw

94064

94041
