74

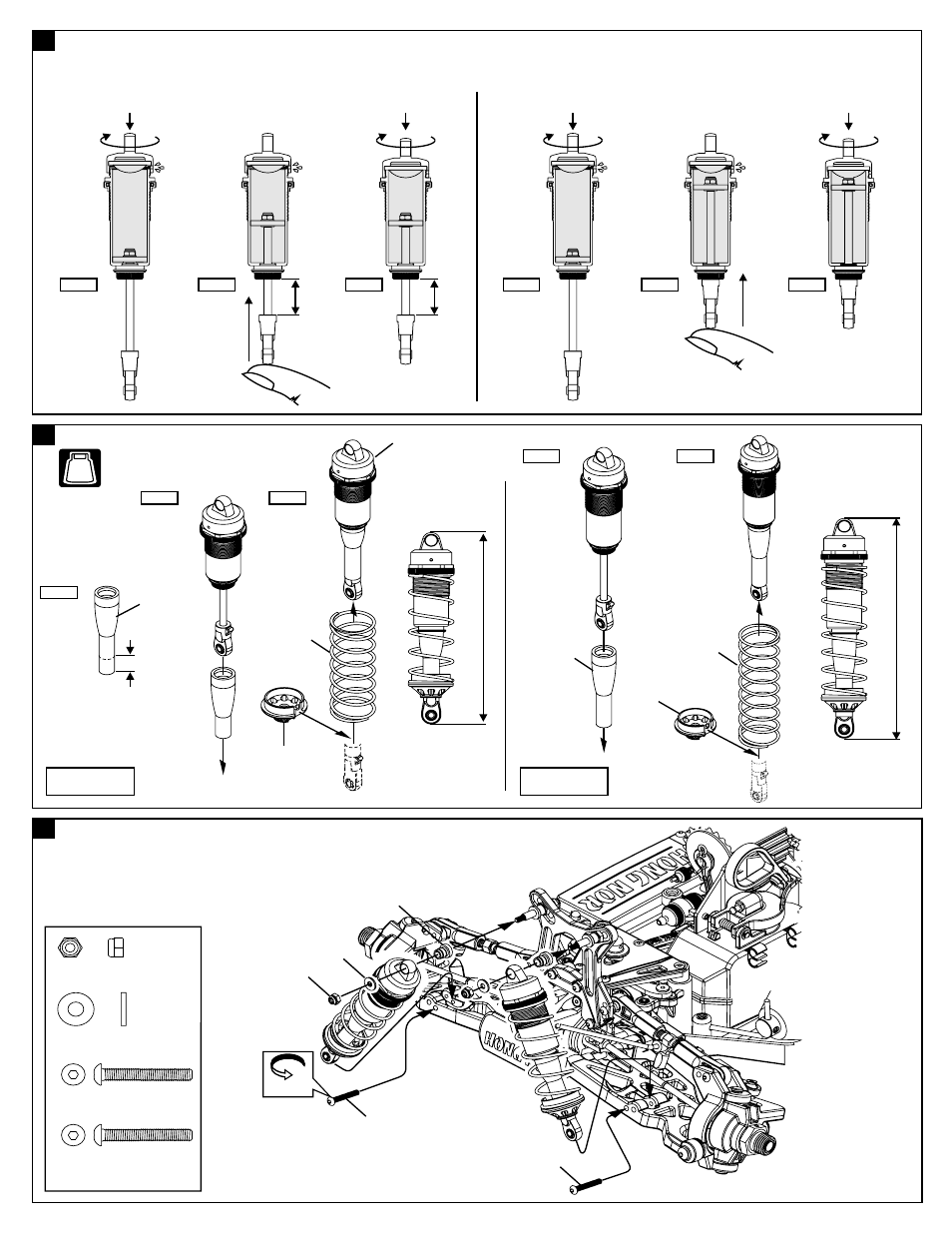

SETTING THE SHOCK REBOUND TO 50% & 0%
(MEDIUM REBOUND & LOW REBOUND)

Step 1

Step 2

TIGHTENED HALF WAY 50%

50%

TIGHTENED 100%

50%

Step 3

Step 1

Step 2

Step 3

TIGHTENED HALF WAY 50%

TIGHTENED 100%

75

ASSEMBLY OF THE SHOCKS SPRING

Step 1

Step 2

Step 3

Cut 7mm

40058

41017(SHORT)

41008

41008

41016(LONG)

Step 1

Step 2

REAR SHOCK

FRONT SHOCK

40058

1

3

1

m

m

11

0

m

m

76

ASSEMBLY OF THE SHOCKS
INTO THE SHOCK STAY

94040
3x8x0.5mm
Washer

.....x2

94041
3mm
Nylon Nut

.....x2

94007
3x20mm
Hex Screw

.....x1

40559
3x20mm
Left Thread Hex Screw .....x1

NO.9

BAG

94040

94041

40559

94007

This screw has LEFT
HAND THREAD (SILVER)

Rotate
Direction

41346

41329
