NO.11

BAG

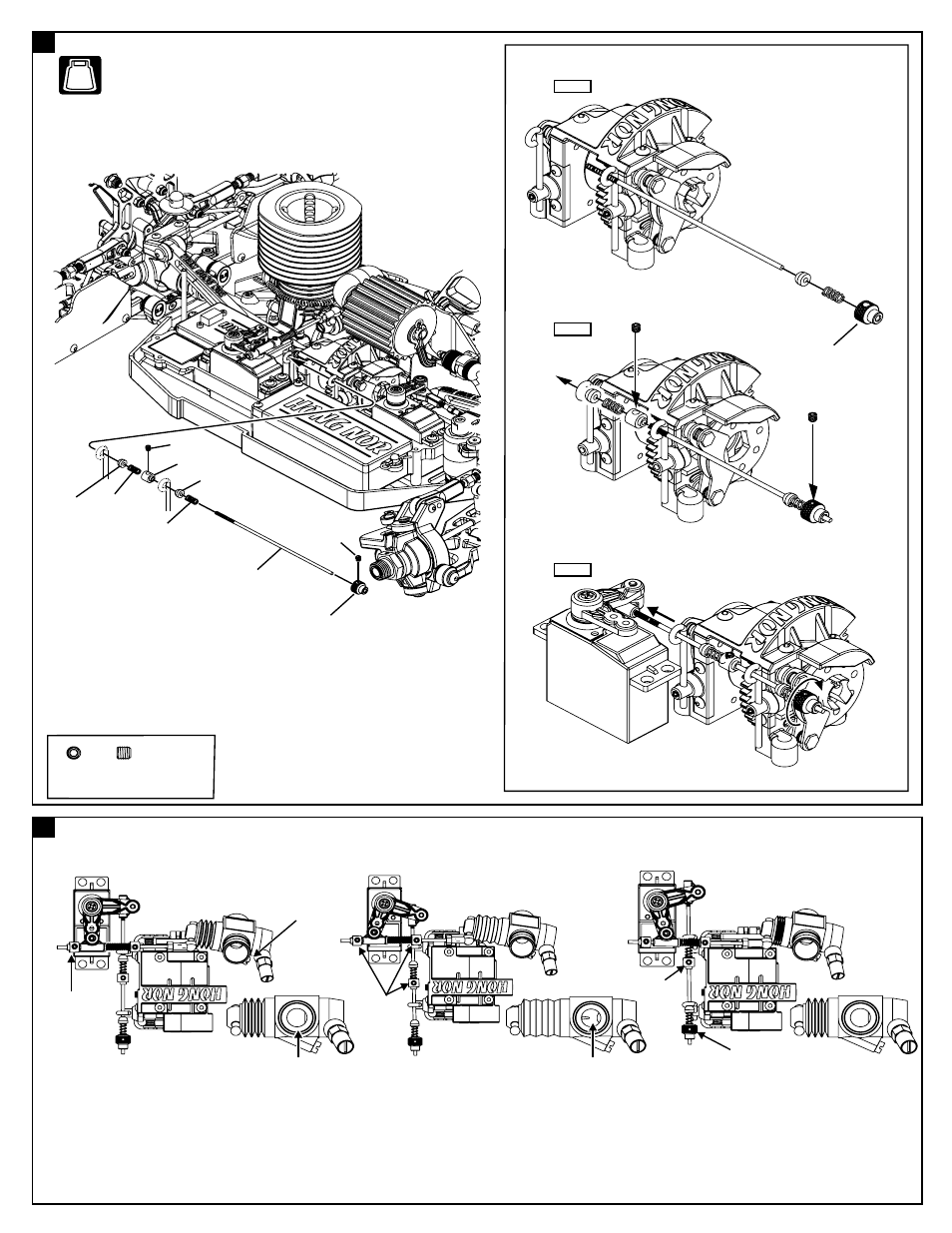

ASSEMBLY OF THE BATTERY BOX AND RADIO TRAY

ADJUSTING THE ENGINE CONTROL LINKAGES

•Turn on the Transmitter then Receiver and set the
Engine Control Servo Trim at the neutral position.

•Adjust the idling adjusting screw on the Carburetor

to be open approx. 1mm gap.

•Adjust both of the 41513 Engine Control and Brake linkage
accordingly.

•Adjust the Engine while it is not running.

•Adjust the Servo-Horn mounting position for the

Carburetor to be full open.

•Change the pivot mounting position on the servo

horn in case the Carburetor is not opening fully or
if it is opening excessively. Or if available on the
Transmitter, adjust the Throttle high end point.

•Adjust 41513 so the brakes work smoothly.

•If the brakes apply too much or not enough,

adjust 41514 accordingly. Or if available on the
Transmitter, adjust the High-End Brake
adjustment.

•Adjust 41514 and 41513 to Change the front or
rear brake.

Approx. 1mm gap

(Neutral)

(Throttle High)

(Brake)

Idling adjusting
Screw

Approx. 0.5mm

Carburetor is Opening fully

41513

Step 1

Step 2

Step 3

94033
3x3mm
Set Screw

.....x2

Step detail

41514

41359

41328

94033

41513

41359

41336

41328

41514

41513

41514
