Page 40

background image

94040
3x8x0.5mm
Washer

.....x2

94041
3mm
Nylon Nut

.....x2

94007
3x20mm
Hex Screw

.....x1

40559
3x20mm
Left Thread Hex Screw .....x1

77

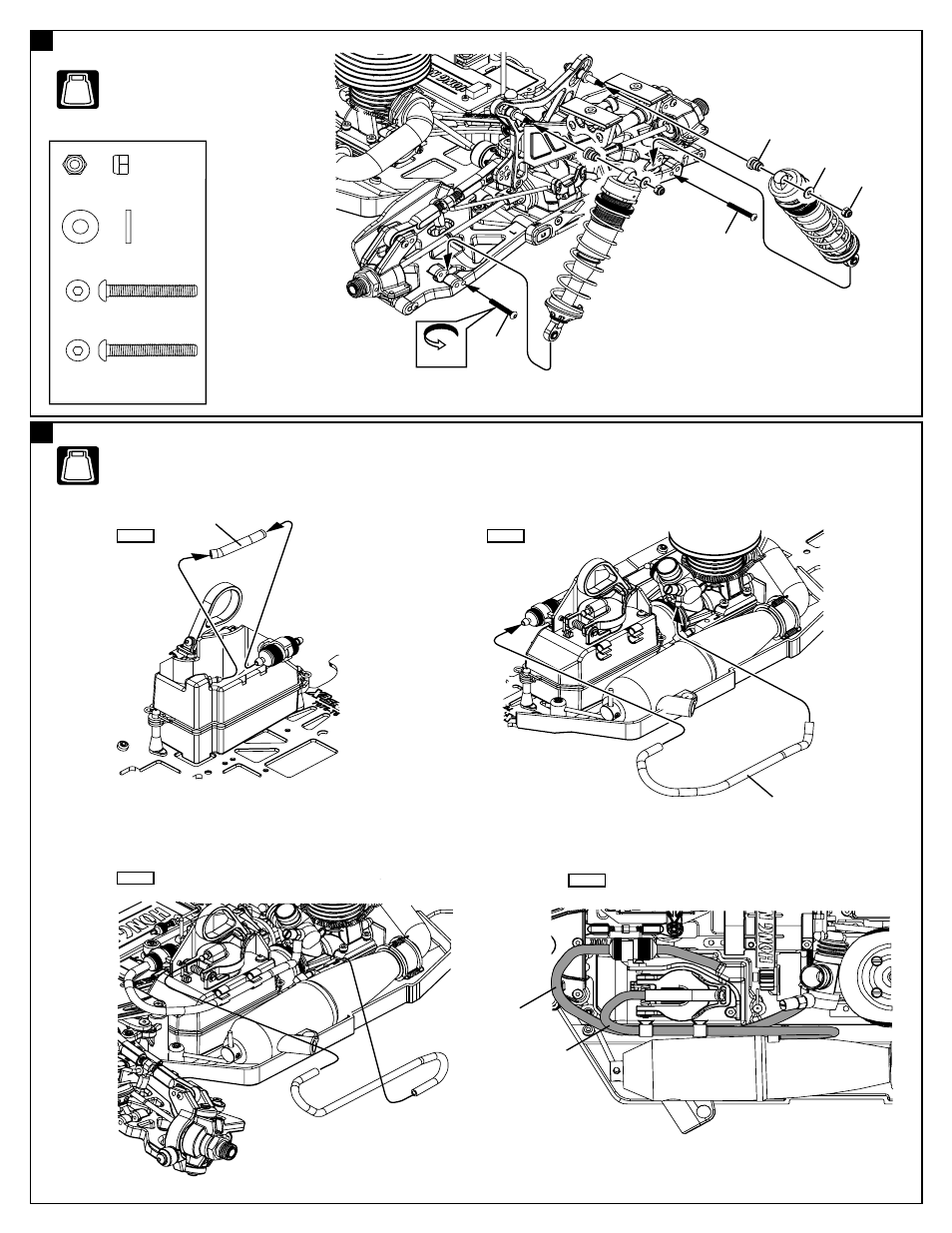

ASSEMBLY OF THE SHOCKS
INTO THE SHOCK STAY

NO.9

BAG

Rotate
Direction

This screw has

LEFT HAND THREAD.

(SILVER)

40559

94007

41346

94040

94041

Step 2

78

ASSEMBLY OF THE FUEL TUBE

NO.10

BAG

Step 1

Step 3

Step 4

To carburetor

To muffler

10177
Fuel Tube (Black)

Fuel Tube
10177 BLACK/GRAY
10178 YELLOW
10179 BLUE
