Assembly of the front shock stay onto gear case 9, No.2, 10 assembly of the front lower arms no.2 – OFNA Racing X3 Sabre User Manual

Page 15: Assembly of the front stabilizer rod 11

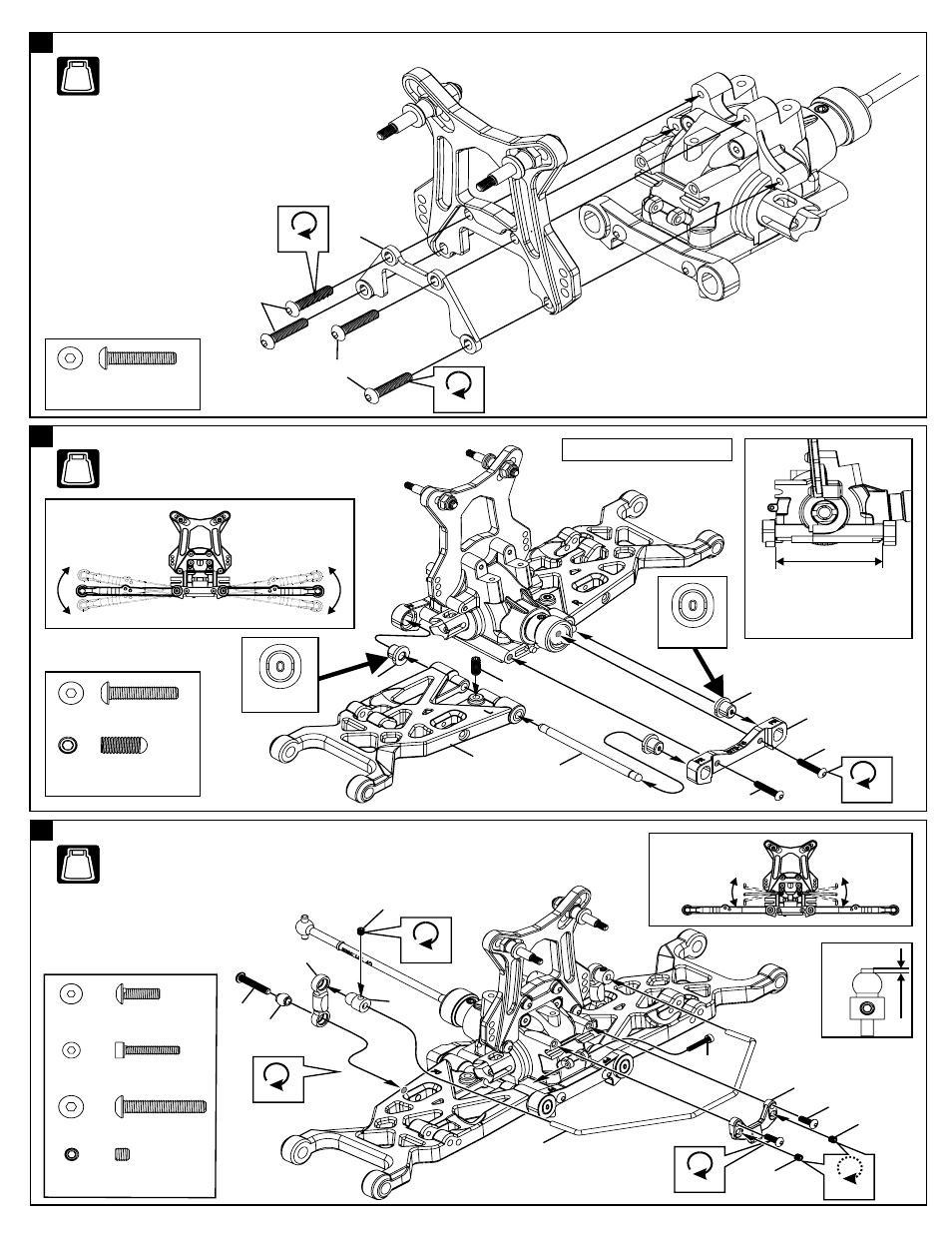

ASSEMBLY OF THE FRONT SHOCK STAY ONTO GEAR CASE

94005

41344

Tighten

NO.2

BAG

94005
3x15mm
Hex Screw

.....x4

ASSEMBLY OF THE FRONT LOWER ARMS

NO.2

BAG

94005
3x15mm
Hex Screw

.....x2

41340
4x10mm
Round Head Set Screw .....x2

Assemble both right and left sides.

41340

41346

41345

41312

41346

Tighten

41407

94005

Step detail

Ensure Free Movement

Initial setting

55 mm

After assembly the gear case
should be 55mm measured
from the ends of the installed
front suspension block.
If differential is longer,
re-tighten the 4 screws.

ASSEMBLY OF THE FRONT STABILIZER ROD

94006
3x18mm
Hex Screw

.....x2

94033
3x3mm
Set Screw

.....x4

94006

94033

30341

30403

41350

94044

94033

94072

41310

94072
2x12mm
Cap Screw

.....x1

94044
2.5x8mm
Hex Screw

41344

NO.2

BAG

Tighten

.....x2

Step detail

Ensure Free Movement

Do Not

Over Tighten

Step detail

Tighten

94005

94033
