Page 31

94074
3x12mm
Cap Screw

.....x4

94073
3x5mm
Cap Screw

.....x1

NO.7

BAG

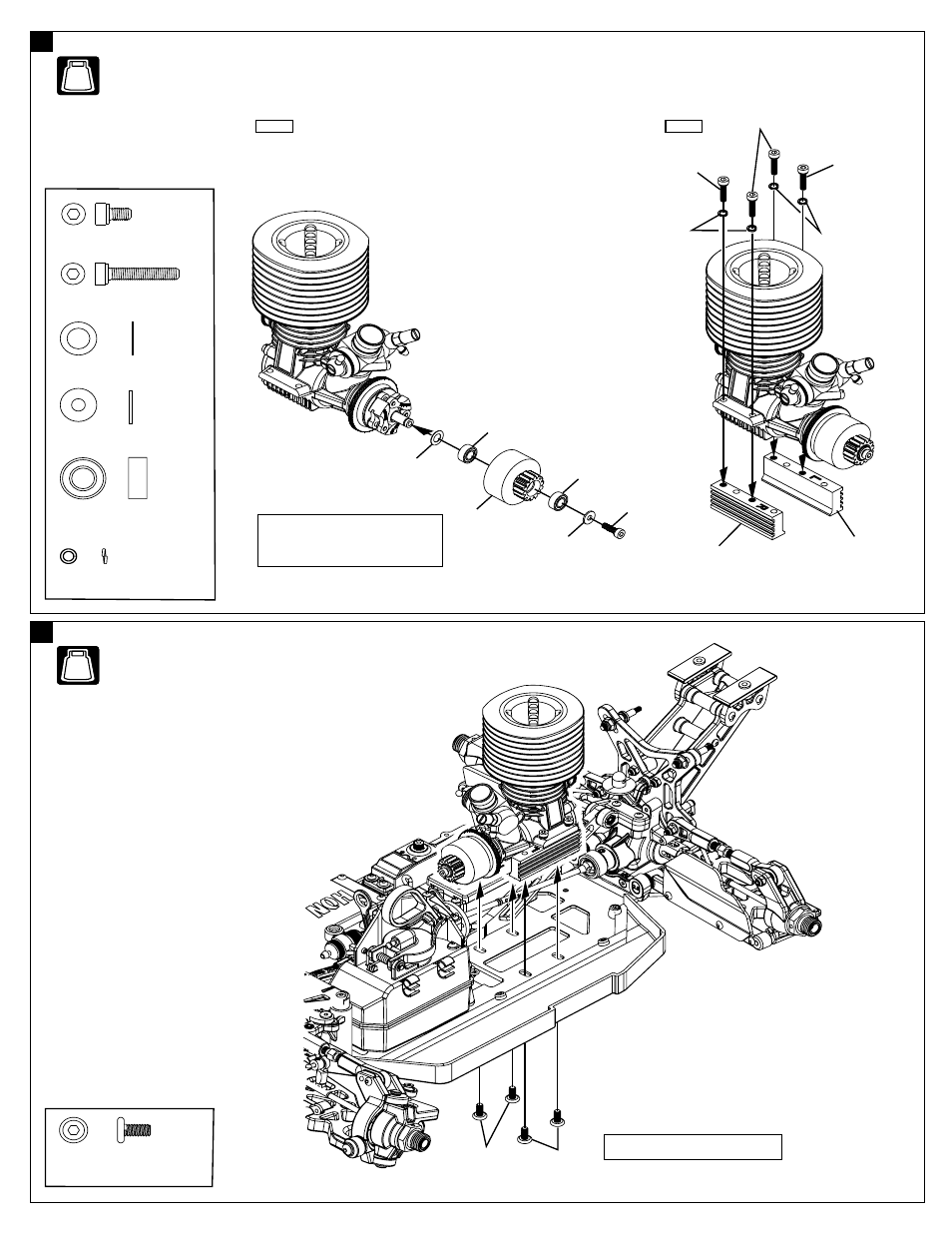

ASSEMBLY OF THE CLUTCH BELL AND ENGINE MOUNT

94075
5x8x0.3
Washer

.....x1

94040
3x8x0.5mm
Washer

.....x1

Step 1

Step 2

94069
3x5mm
Spring Washer

.....x4

34110
5x10x4mm
Ballbearings

.....x2

ASSEMBLY OF THE ENGINE ONTO CHASSIS

NO.7

BAG

41339
4x8mm
Engine Mount Screw

.....x4

Tighten the 41339 screw temporary.

94075

10410

34110

10400

94073

41337

94074

94069

41339

NOTE:

SHIMMING A CLUTCH MAY VARY
FROM ENGINE TO ENGINE DURING
CLUTCH ASSEMBLY.
