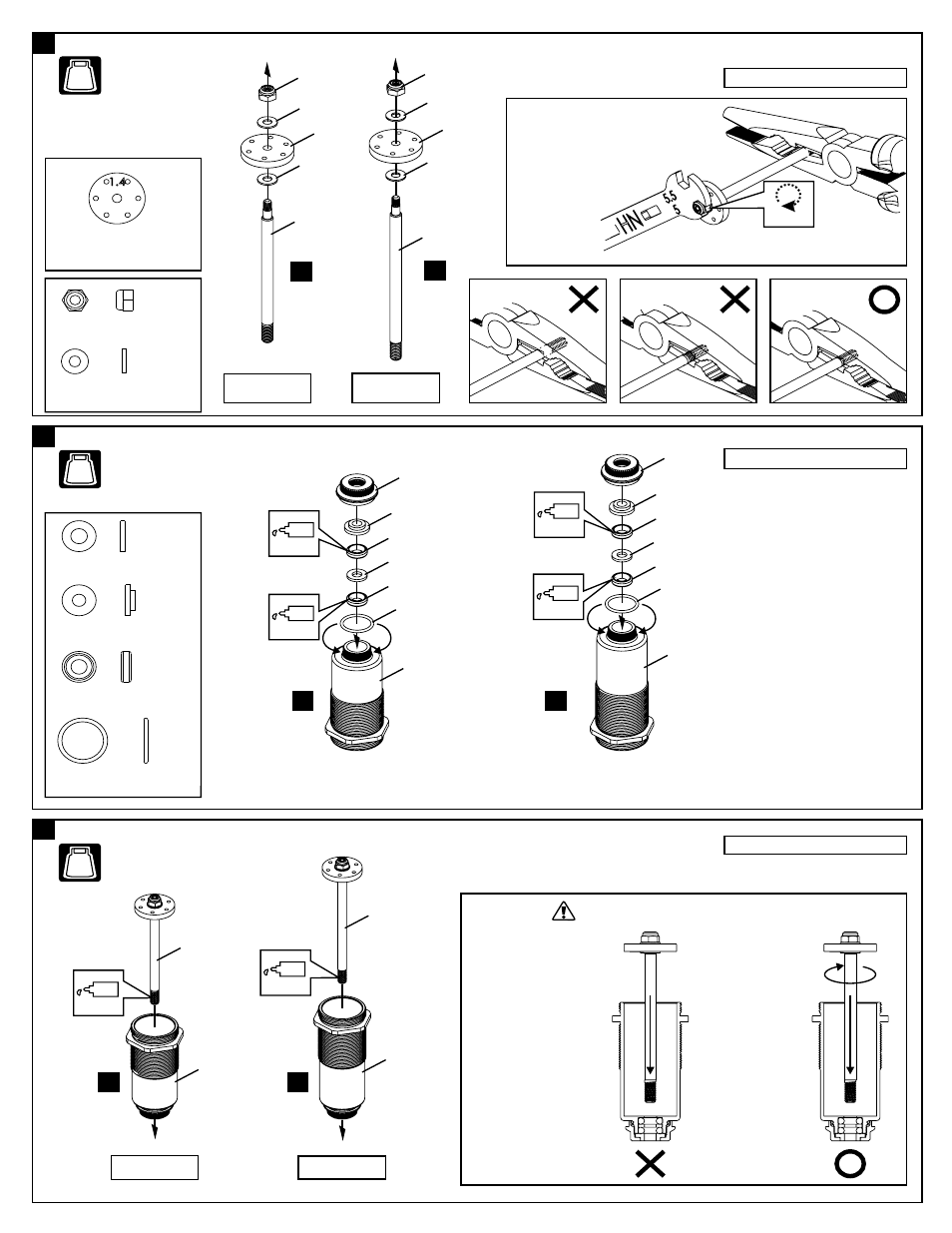

ASSEMBLY OF THE SHOCK SHAFTS INTO SHOCK BODIES

Assemble both left and right sides.

Oil

(LONG)

(SHORT)

(LONG)

Do not push the shock
shaft straight down,
O-ring can be damaged.

Slowly twist the shock
shaft down to the
bottom. It also help if
you put a couple of
drops of shock oil in
before putting shaft
through.

EXTREMELY IMPORTANT

Oil

Assemble both left and right sides.

ASSEMBLY OF THE SHOCK SHAFTS

REAR SHOCK
(LONG)

FRONT SHOCK
(SHORT)

Step detail

Use tools to tighten as shown.

94059
2.6x6x0.5
Washer

.....x4

40060

94059

41011

30602

40055

41011

.....x2

40060
2.6mm
Nylon Nut

Do Not

Over Tighten

•Hold the shock rod at it's thread
with side needle nosed pliers.

•Be careful not to damage the shock
rod.

ASSEMBLY OF THE SHOCK O-RING

Assemble both left and right sides.

41019
P10 O-RING

.....x4

41012
3.5mm O-Ring

.....x8

FRONT SHOCK

41012
2mm Washer

.....x4

41012
1mm Washer

.....x4

41003 (SHORT)

41004 (LONG)

41019

41012

41012(1mm)

41012

41012(2mm)

41008

41012(2mm)

41012

41012(1mm)

41012

41019

Oil

NO.9

BAG

NO.9

BAG

NO.9

BAG

94059

Use 1.4x6 holes piston for
front and rear.

REAR SHOCK
