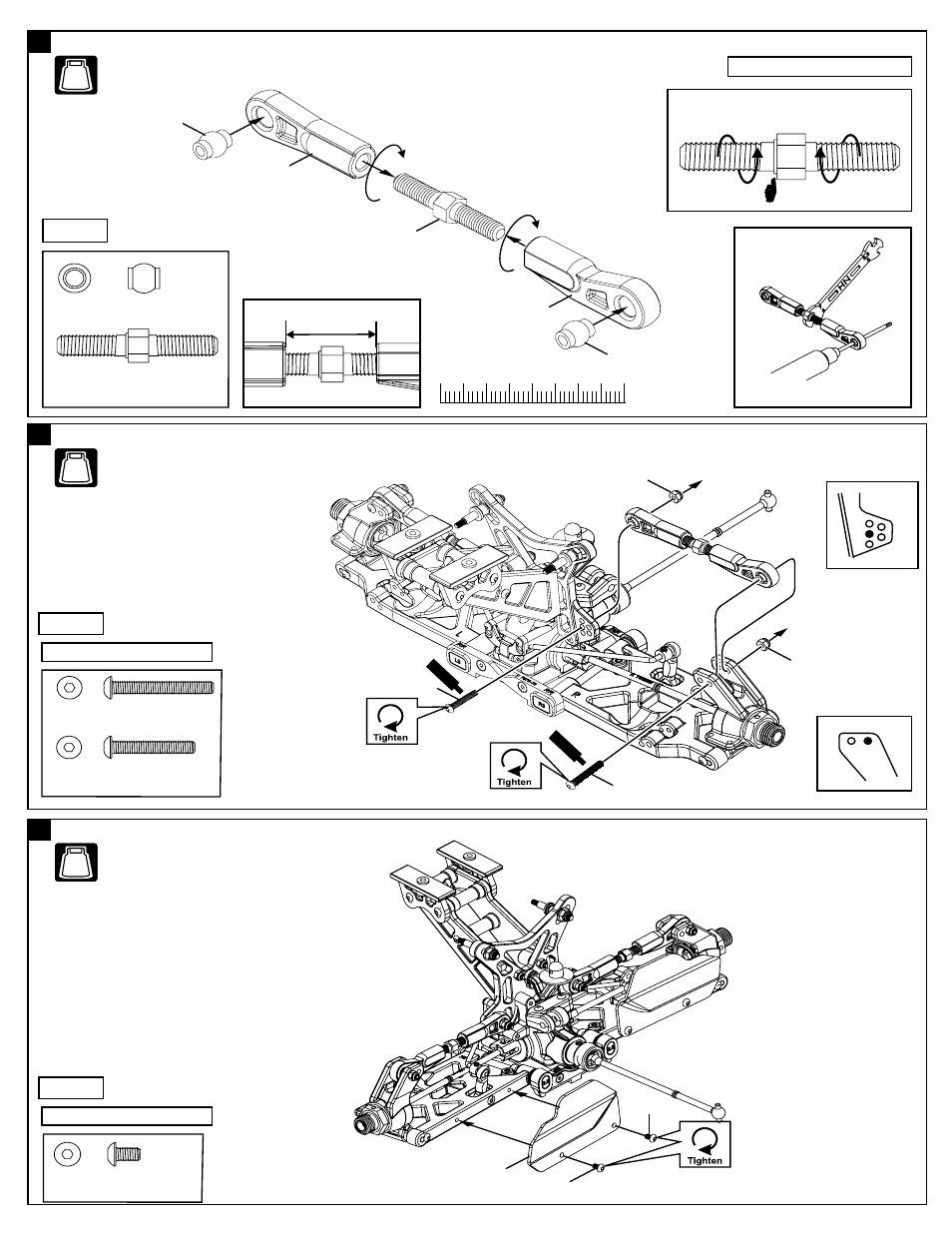

ASSEMBLY OF THE REAR UPPER ARMS

Assemble both right and left side.

ASSEMBLY OF THE REAR MUD DEFLECTOR

36861
5x40mm
Turnbuckle

.....x2

36850
7mm Ball

.....x4

Assemble both left and right sides.

Step detail

Note the locking direction!

Use tools to tighten as shown.

Approx. 19mm

41350

36861

36850

41350

36850

RIGHT SIDE

94062

94006

3x18mm
Hex Screw

.....x2

3x22mm
Hex Screw

.....x2

RIGHT SIDE

ASSEMBLY OF THE REAR UPPER ARMS

NO.4

BAG

94001

41352

NO.2

BAG

NO.4

94001
3x5mm
Hex Screw

.....x2

NO.4

BAG

NO.2

94041

Counter-Clockwise

Clockwise

Detail

Shock Stay

Rear Hub

Assemble both right and left side.

RIGHT SIDE

94062

94006

94001
