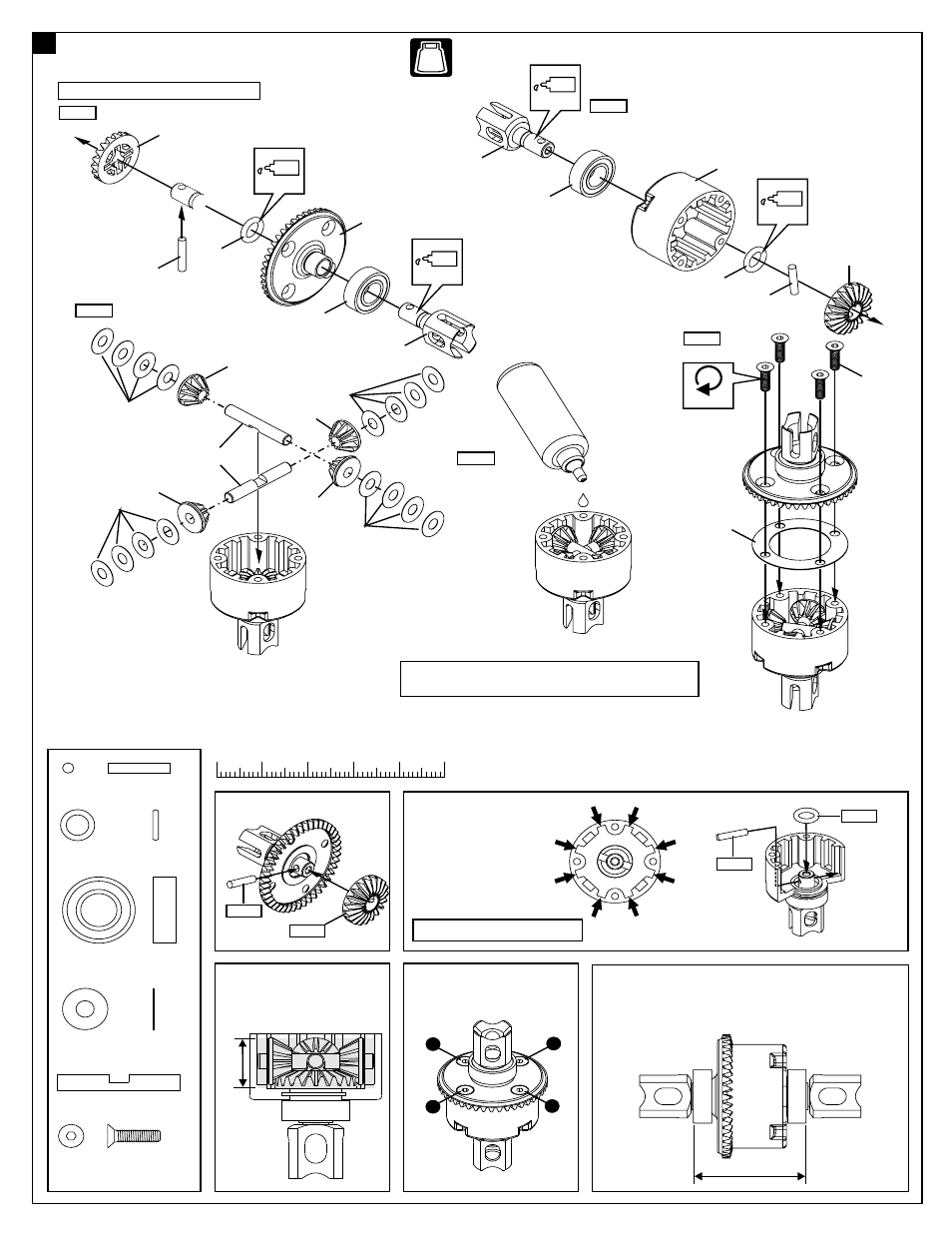

ASSEMBLY OF THE FRONT AND REAR DIFF.

Build two differentials, for front and rear.

Oil

40009

41301(43T)

Oil

36053

Oil

36053

41343

41303

41334

40009

Step 2

Step 1

41334
2.5x11.8mm Pin

.....x4

40009
P6 O-Ring

30774

30776

Step 3

Step 5

94020
3x12mm

Step 4

Tighten

•Use the Diff. Oil #7000 for front and #2000 for rear.

•Use a silver sharpie to mark front and rear diff. Case.

41404

Step 1

Step 2

Step detail

Step 1

Step 2

Step detail

Repeat tightening in this order

After assembly the differential should be 30.35mm
measured from the ends of the installed ball-bearings.
If differential is longer, hold the bevel gear and
retighten the 4 screws.

30.35 mm

Fill the diff oil just level with the
top of the satellite gears.

Step detail

80%

30776
4x10x0.15mm
Washer

.....x16

30774
4mm Alum. Cross Pin .....x4

36053
8x16x5mm
Ball Bearing

.....x4

94020
3x12mm
Flat Head Hex Screw

.....x8

BAG

NO.1

41303

41334

41404

41303

41338

Instructions into the Pin as shown.

0 10 20 30 40 50

30776

41303
