Page 12

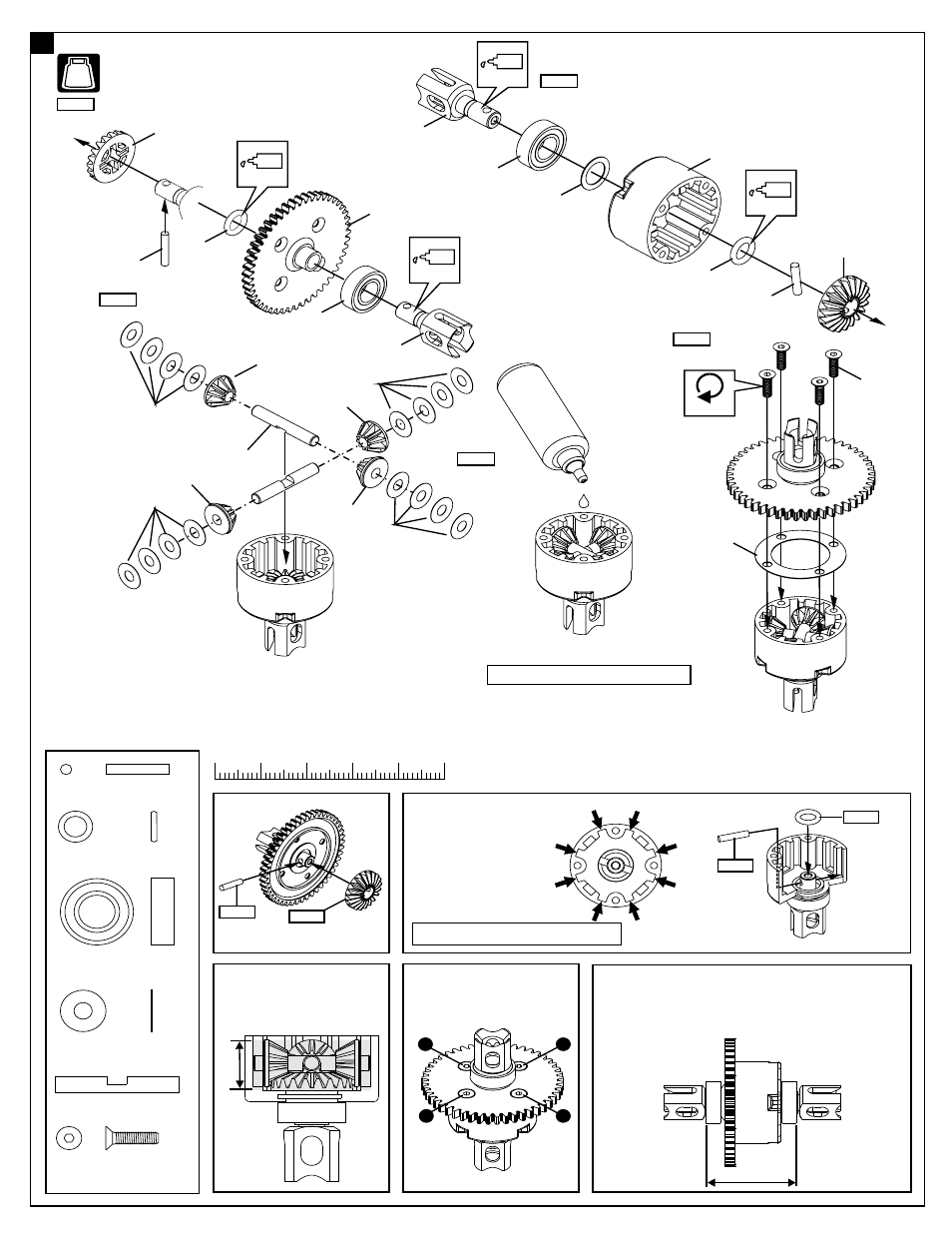

ASSEMBLY OF THE CENTER DIFF.

Oil

41303

40009

40518(48T)

Oil

36053

41404

Oil

36053

41343

41303

41334

40009

Step 2

Step 1

Step 5

41338

94020
3x12mm

Step 4

Tighten

41334

Step 1

Step 2

Step detail

Repeat tightening in this order

After assembly the differential should be 31.2mm
measured from the ends of the installed ball-bearings.
If differential is longer, hold the bevel gear and
retighten the 4 screws.

31.2 mm

Fill the diff oil just level with the
top of the satellite gears.

Step detail

80%

Use the Diff. Oil #5000 for the center diff.

Step 3

41303

30774

NO.1

BAG

40218

41404

Step 1

Step 2

Instructions for inserting the Pin as shown.

0 10 20 30 40 50

30776

41303

30776

41303

41334
2.5x11.8mm Pin

.....x2

40009
P6 O-Ring

30776
4x10x0.15mm
Washer

.....x8

30774
4mm Alum. Cross Pin .....x2

36053
8x16x5mm
Ball Bearing

.....x2

94020
3x12mm
Flat Head Hex Screw

.....x4
