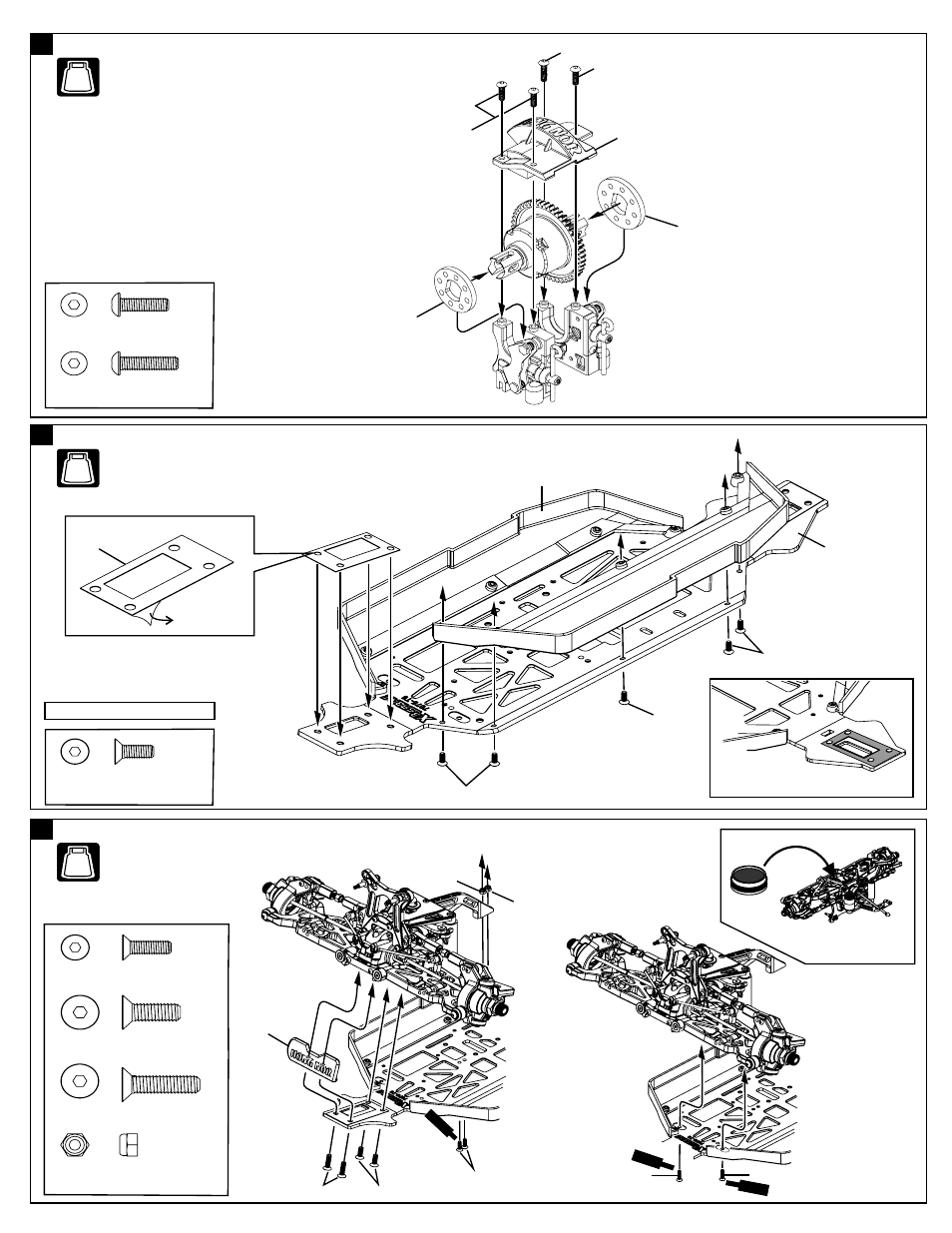

ASSEMBLY OF THE CENTER DIFF. MOUNT

NO.5

BAG

94004

94003

41356

94003

41324
(27mm)

94004
3x12mm
Hex Screw

.....x1

94003
3x10mm
Hex Screw

.....x3

30688
(31mm)

ASSEMBLY OF THE STONE GUARD

Assemble both right and left sides.

94017
3x8mm
Flat Head Hex Screw

.....x10

Rear

41364

NO.6

BAG

NO.16

41401

41357

94017

94027
4x16mm
Flat Head Hex Screw

.....x2

94003
3x10mm
Flat Head Hex Screw

.....x2

94041
3mm
Nylon Nut

ASSEMBLY OF THE FRONT GEAR CASE ONTO CHASSIS

NO.2

BAG

NO.16

Apply a small amount of
grease to bevel gears.

GEAR

GREASE

Step detail

94026
4x12mm
Flat Head Hex Screw

.....x2

Screw

C me

Screw

C me

94026

94027

94003

94041

41352

94003
