Page 32
NO.7
BAG

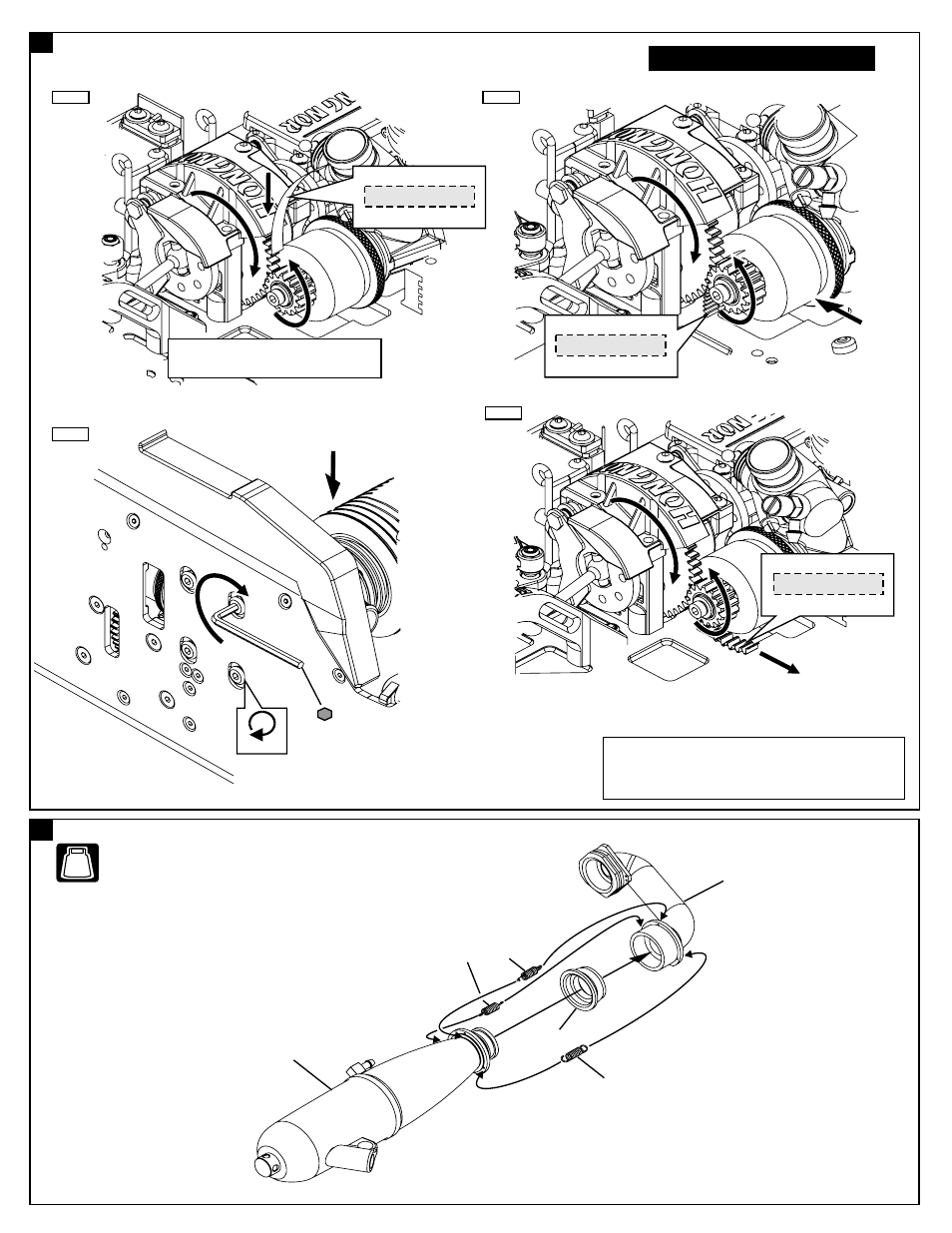

ASSEMBLY OF THE MANIFOLD AND MUFFLER
60
59
ADJUST ENGINE AND SPUR GEAR MAINTENANCE
EXTREMELY IMPORTANT
Tighten
Adjust the engine mount position to get proper gear mesh.
To get a perfect gear mesh , place a piece of notebook paper
between the gears and tighten the engine mount screws.
If the gear mesh is not correct the spur gear will be damaged.
10079
97505
95700
SPRING AND
GASKET
3mm
Paper for Gear Mesh
Step 2
Step 1
Step 3
Step 4
Insert a piece of notebook paper between
spur gear and clutch bell to make correct
gear mesh.
PUSH
PUSH
Paper for Gear Mesh
PULL OUT
Paper for Gear Mesh
97501
97501
SPRING ONLY
