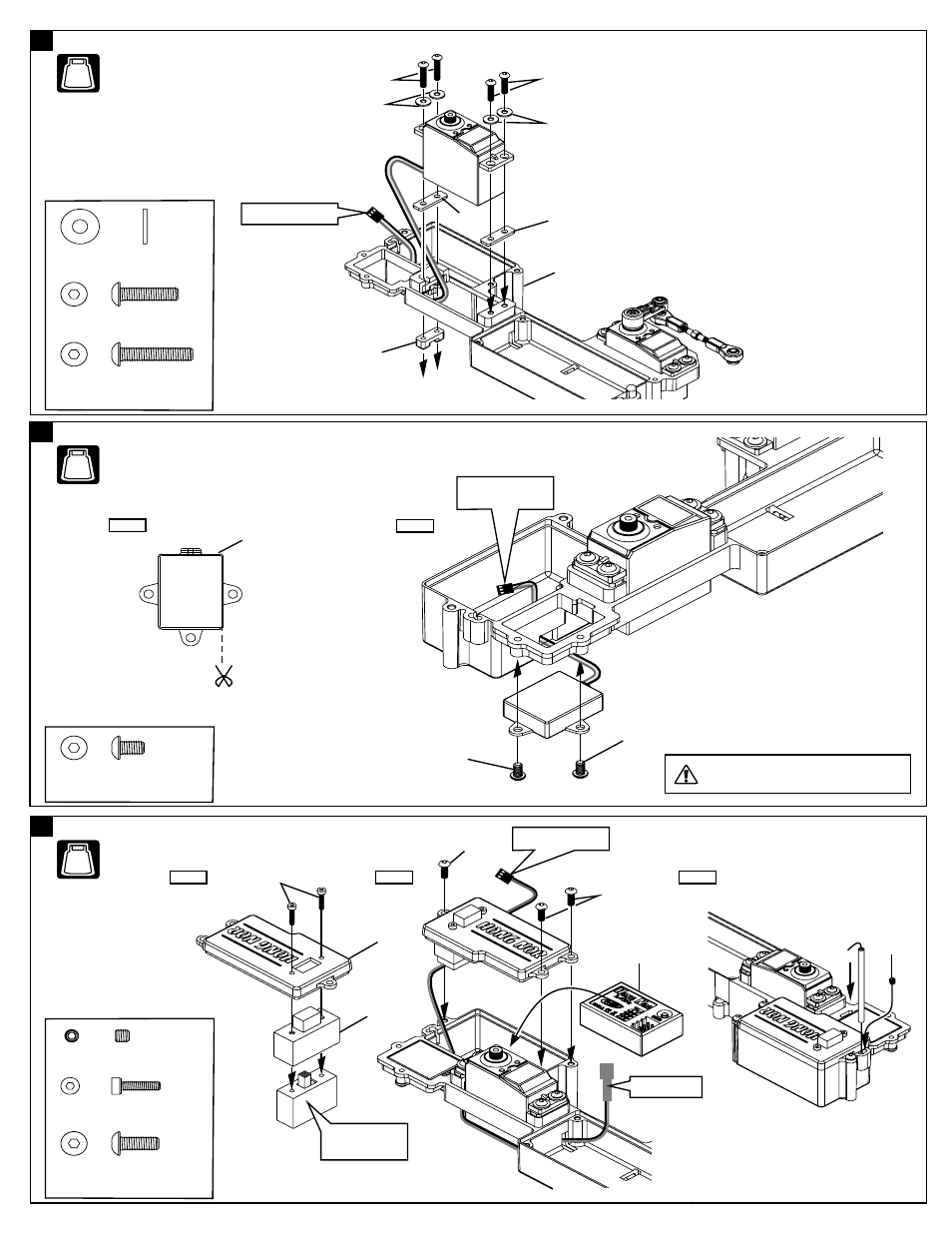

ASSEMBLY OF THE PERSONAL TRANSPONDER

NO.11

BAG

NO.11

BAG

NO.11

BAG

ASSEMBLY OF THE THROTTLE SERVO AND RADIO TRAY

94002
3x8mm
Hex Screw

.....x3

94071
2x8mm
Cap Screw

.....x2

94005
3x15mm
Hex Screw

.....x2

94004
3x12mm
Hex Screw

.....x2

94040
3x8X0.5mm
Washer

.....x4

Personal transponder
(Not included)

Step 1

If participating in a competition, bring your
own transponder.

94001
3X5mm
Hex Screw

.....x2

Step 2

ASSEMBLY OF THE RECEIVER INTO RADIO CASE

94033
3x3mm
Set Screw

.....x1

Step 1

Step 2

Step 3

To receiver Ch2.

To Batteries

To receiver B/C.

Receiver
(not included)

41359

94040

94005

To receiver Ch3.

94001

94071

94002

10282

41358

94033

Receiver switch
(Not included)

Cut

41358
