PRODUCT SUPPORT 800.927.2120 8am - 6pm EST
LUDLOW
Volume Control Valve Trim
INSTALLATION GUIDELINES
Page 2 of 2
10.30.2013
These guidelines have been prepared for the professional contractor to aid in the installation of:
LUDLOW VOLUME CONTROL VALVE TRIM WITH METAL CROSS HANDLE (STYLE# LDVC01) &
METAL LEVER HANDLE (STYLE # LDVC10)
All dimensions are based on original specification and are subject to change and variation.
Please consult your Design Associate for current specifications.
SEE SERVICE PART DOCUMENT FOR PART ORDERING, AVAILABLE ON WATERWORKS.COM

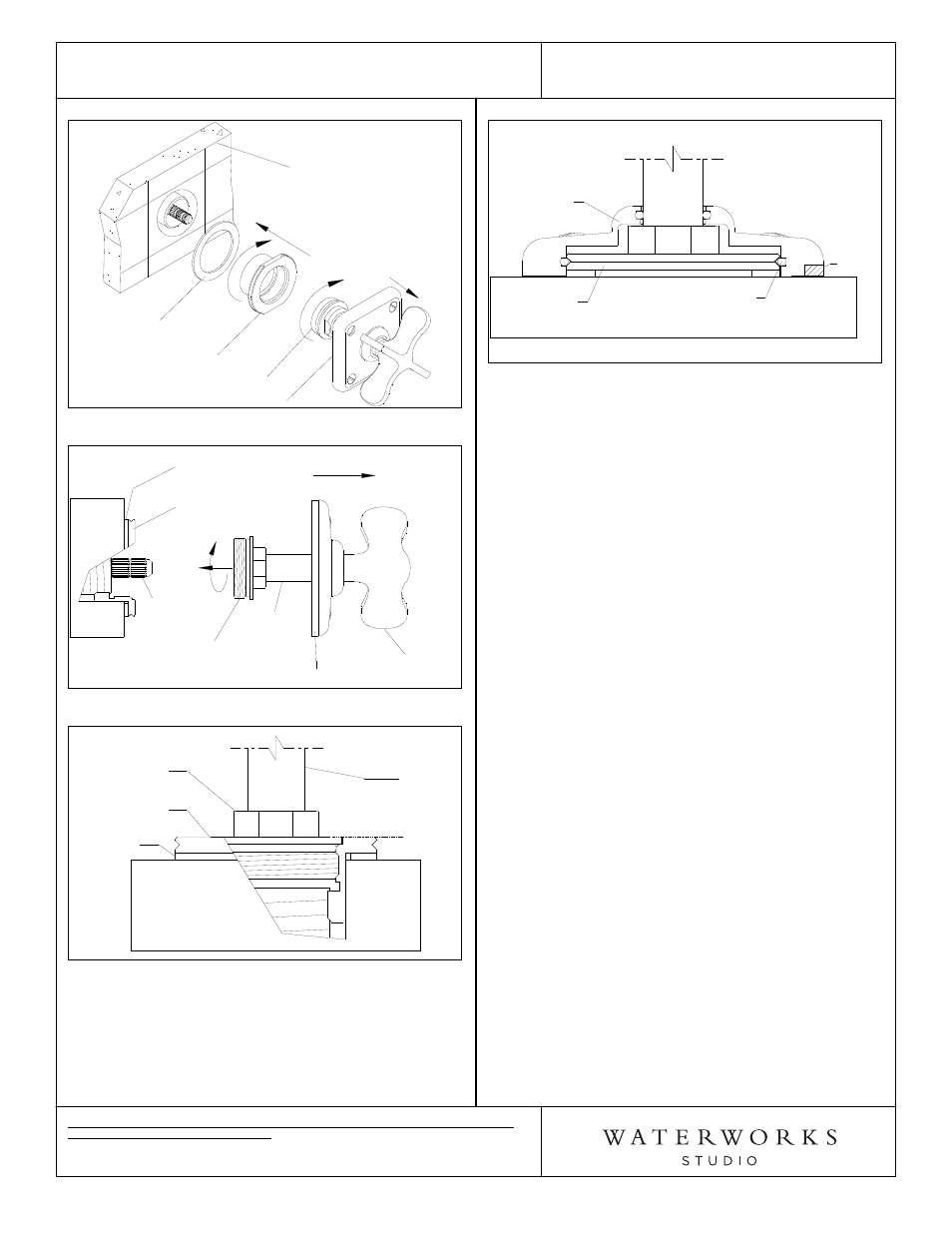

Figure 2
RED FIBER
WASHER
TRIM ADAPTER
ESCUTCHEON
FINISHED WALL
HANDLE FASTENING NUT
Figure 3
HANDLE FASTENING
NUT
ESCUTCHEON
HANDLE ASSEMBLY
HANDLE
STEM
TRIM
ADAPTER
CARTRIDGE
STEM
RED FIBER
WASHER
WALL
Figure 3a
FLUSH
HANDLE
FASTENING
NUT
TRIM
ADAPTER
HANDLE
STEM
RED FIBER
WASHER
¾ During installation make sure to rotate the
ESCUTCHEON to orient the NOTCH out of sight. The
NOTCH is for easy removal of the handle assembly.
Figure 3b
NOTCH
ESCUTCHEON
O-RING
ESCUTCHEON
TRIM
ADAPTER
¾ The screws on the escutcheons are aesthetic and do
not serve any mechanical purposes, and should not
be removed.
¾ If further assistance is required, please contact
Product Support at 1-800-927-2120 (8am-6pm EST).
¾ See service part document for parts ordering,
available on WATERWORKS.COM.
