Waterworks Formwork Ceiling Mounted 15" Recessed Square Shower Head - Manual (Page 2)

PRODUCT SUPPORT 800.927.2120 8am - 6pm EST
FORMWORK
15" Ceiling Mounted Recessed Showerhead
INSTALLATION GUIDELINES
Page 2 of 2 4.30.2014
These guidelines have been prepared for the professional contractor to aid in the installation of:
FORMWORK 15" Ceiling Mounted Recessed Showerhead (STYLE# FMSH10)
All dimensions are based on original specification and are subject to change and variation.
Please consult your Design Associate for current specifications.
MOUNTING
BRACKET
2x4
BLOCKING
MOUNTING
TAB 4X
MOUNTING
BRACKET
2x4
BLOCKING
MOUNTING
TAB 4X
13-1/4"
[337 mm]

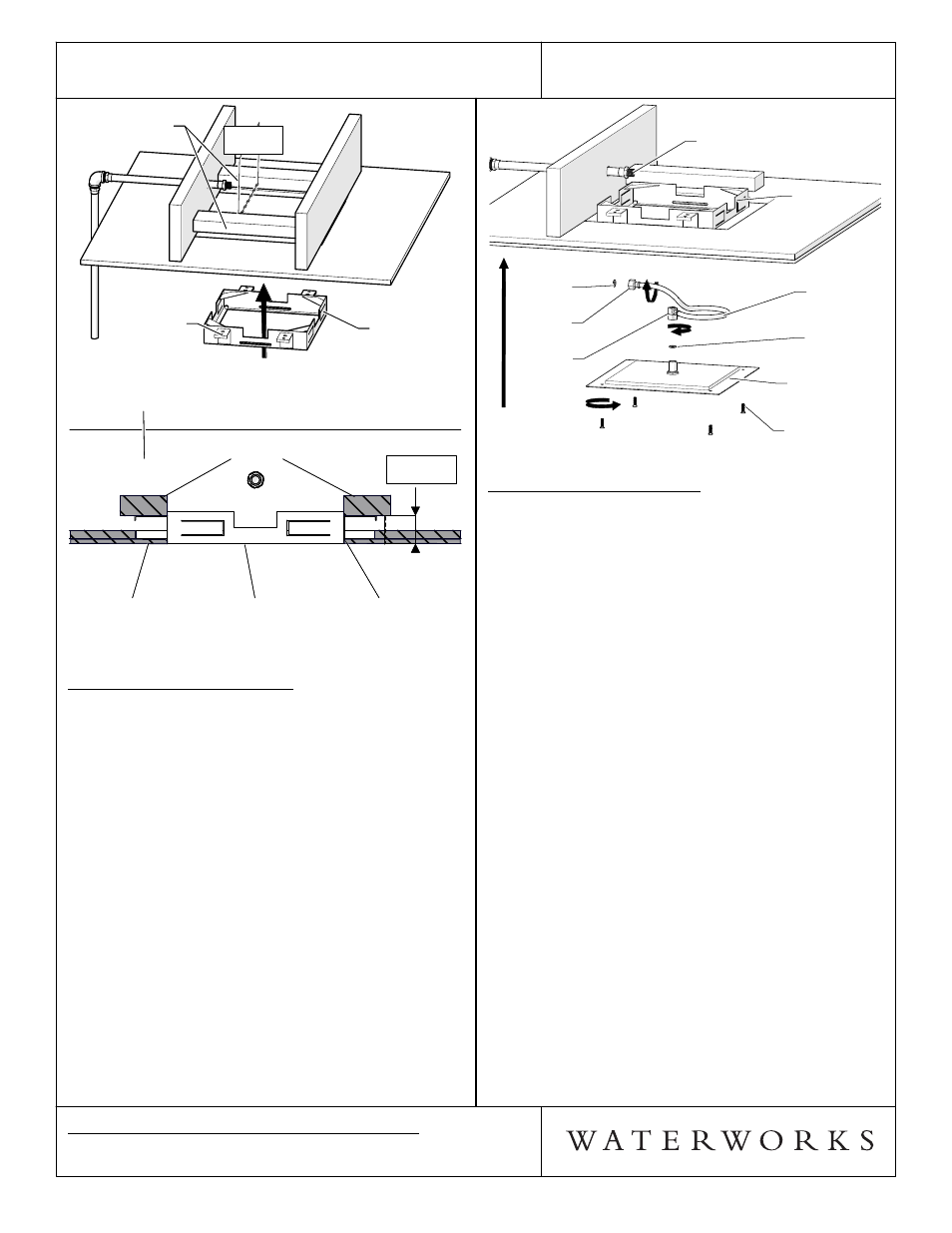

FIGURE - 02
FINISHED
CEILING
JOIST
MOUNTING
BRACKET
2x4
BLOCKING
FLUSH WITH
FINISHED CEILING
FINISHED
CEILING
JOIST
MOUNTING
BRACKET
2x4
BLOCKING
FLUSH WITH
FINISHED CEILING
2-1/4" MIN
2-3/4" MAX
FIGURE - 03
SHOWERHEAD INSTALLATION:
¾ Prior to showerhead installation, it is recommended
that the supply line be flushed.
¾ See Figure 4 for Steps 7 -9.
7. Connect the HEX END of the SUPPLY HOSE to the
SUPPLY PIPE making sure the RUBBER WASHER is
between.
8. While holding the SHOWERHEAD just below the
finished ceiling, tighten the ANGLED END of the
SUPPLY HOSE to the threading on the
SHOWERHEAD, making sure the RUBBER WASHER
is between.
9. Hold SHOWERHEAD flush to finished ceiling and
install SCREWS into the threaded holes on the
MOUNTING BRACKET using a 4mm Allen key.
RUBBER
WASHER
SCREW
(4mm Allen Key)
RUBBER
WASHER
SHOWERHEAD
HEX END
ANGLED
END
SUPPLY PIPE
SUPPLY
HOSE
MOUTING
BRACKET
RUBBER
WASHER
SCREW
(4mm Allen Key)
RUBBER
WASHER
SHOWERHEAD
HEX END
ANGLED
END
SUPPLY PIPE
SUPPLY
HOSE
MOUTING
BRACKET
FIGURE - 04
INSPECT THE INSTALLATION:
10. Inspect all connections for leaks.
¾ If further assistance is required, please contact
Product Support at 1-800-927-2120 (8am-6pm EST).
¾ See service part document for parts ordering,
available on WATERWORKS.COM
