Pressure Balance Valve Trim With Diver ter
Installation Guidelines
1
3
8
12
6
10
5
4
13
11
2
9
7
9 : threaded
1
5
2
11
7
3
9
6
4
10
8
7
11
9
4
7
8
6
3
2
10
7
1
5

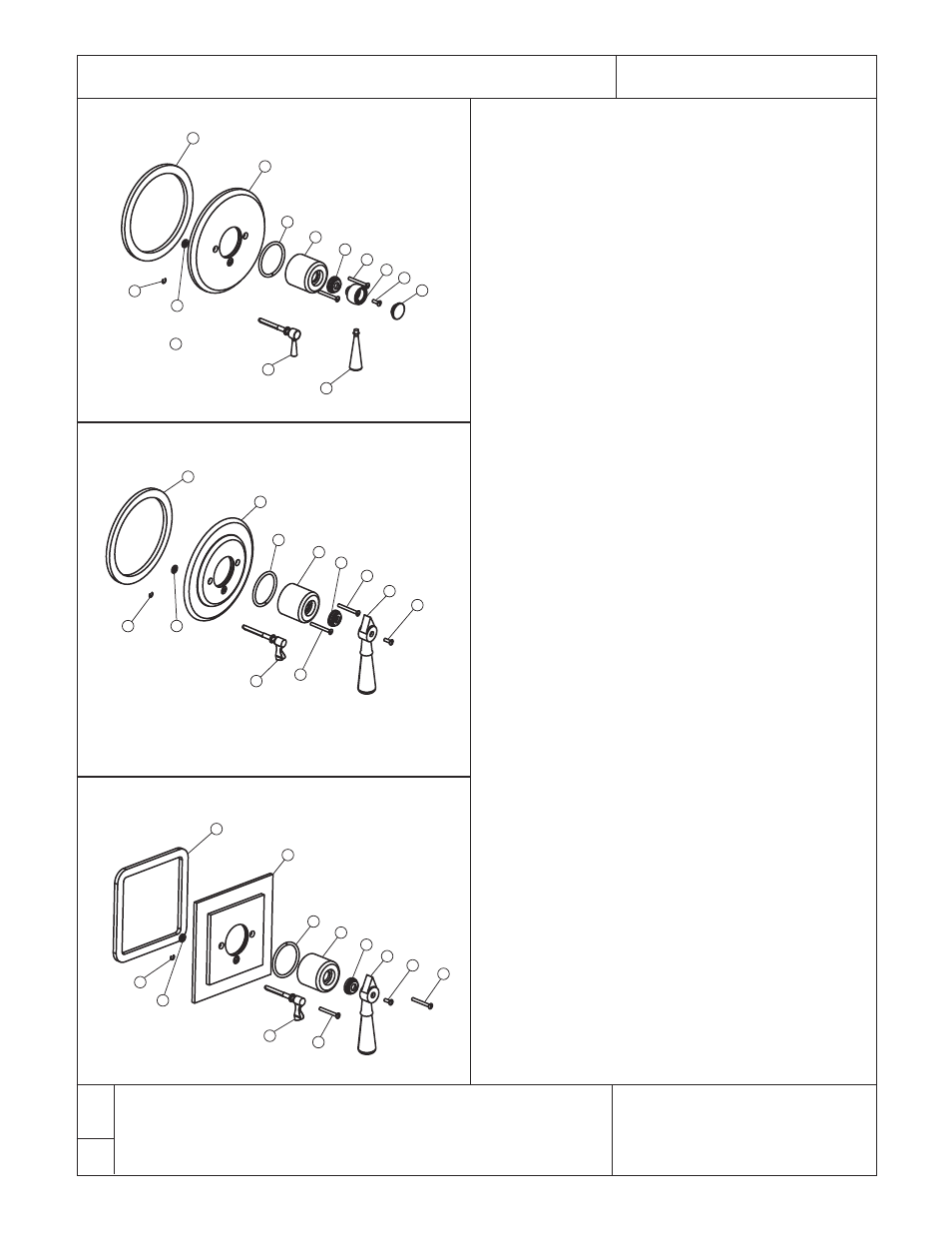

BNSV88-K(Beacon trim)
WWSV86-K(Round trim with metal lever handle)
WWSV87-K(Round trim with porcelain handle)
WWSV84-K(Square trim with metal lever handle)
WWSV85-K(Square trim with porcelain handle)
8. Allow the valve to run in warm position for a few minutes to
completely flush the system. If system is quite dirty, remove
valve spindle to ensure proper flushing.
9. IMPORTANT: This valve is equipped with a limit stop screw(T-
34) to be used to limit the valve handle from being turned to
excessively hot water discharge temperatures.
10. Setting the limit stop screw: Open the valve to the maximum
desired temperature then turn the limit stop screw(T-34) in until
it seats.
11. WARNING: FAILURE TO ADJUST THE LIMIT STOP SCREW
PROPERLY MAY RESULT IN SERIOUS SCALDING.
INSTALL THE TRIM:
12. Slide the trim plate assembly(1,2,4-6) over the valve stem while
making sure the diverter shaft/handle(4) is aligned with the
diverter spindle(T-23A,B). IMPORTANT: T-23A,B must be
properly aligned and the handle must rest at 6 o-clock position.
If the handle and diverter spindle are not properly aligned, the
valve will not function. See Figure 1.
13. Secure the plate against the wall using the screws(7 or 11)
provided. If desired, a bead of clear silicone can be applied to
the back side of the trim plate(1).
14. Apply a small mount of lubricant to the o-ring(2) then hand
tighten the dome cover(3) completely down onto the
spindle(TA-10). The dome cover MUST be tightened to prevent
damage to the handle.
15. Slide the handle trim spacer(9 or 13) onto the valve stem then
attach the handle using the handle screw provided(10 or 11).
16. Open the valve and confirm the temperature setting, adjust as
required. Verify that the diverter is functioning properly. NOTE:
After diverting to the shower head, a small trickle of water may
continue to flow from the tub spout which is normal.
➢
If further assistance is required, please contact Product Support
at 1-800-927-2120 (8am-7pm EST).
7/05
W A T E R W O R K S
Æ
These guidelines have been prepared for the professional contractor to aid in the installation of:
PRESSURE BALANCE VALVE TRIM WITH DIVERTER
(BNSV88-K & GUSV86R) (WWSV86-K & GUSV86R) (WWSV87-K & GUSV86R)
(WWSV84-K & GUSV86R) (WWSV85-K & GUSV86R)
All dimensions are based on original specifications and are subject to change and variation.
Please consult your Design Associate for current specifications.
2
GUSV87R
GUSV87R
GUSV87R
GUSV87R
GUSV87R
