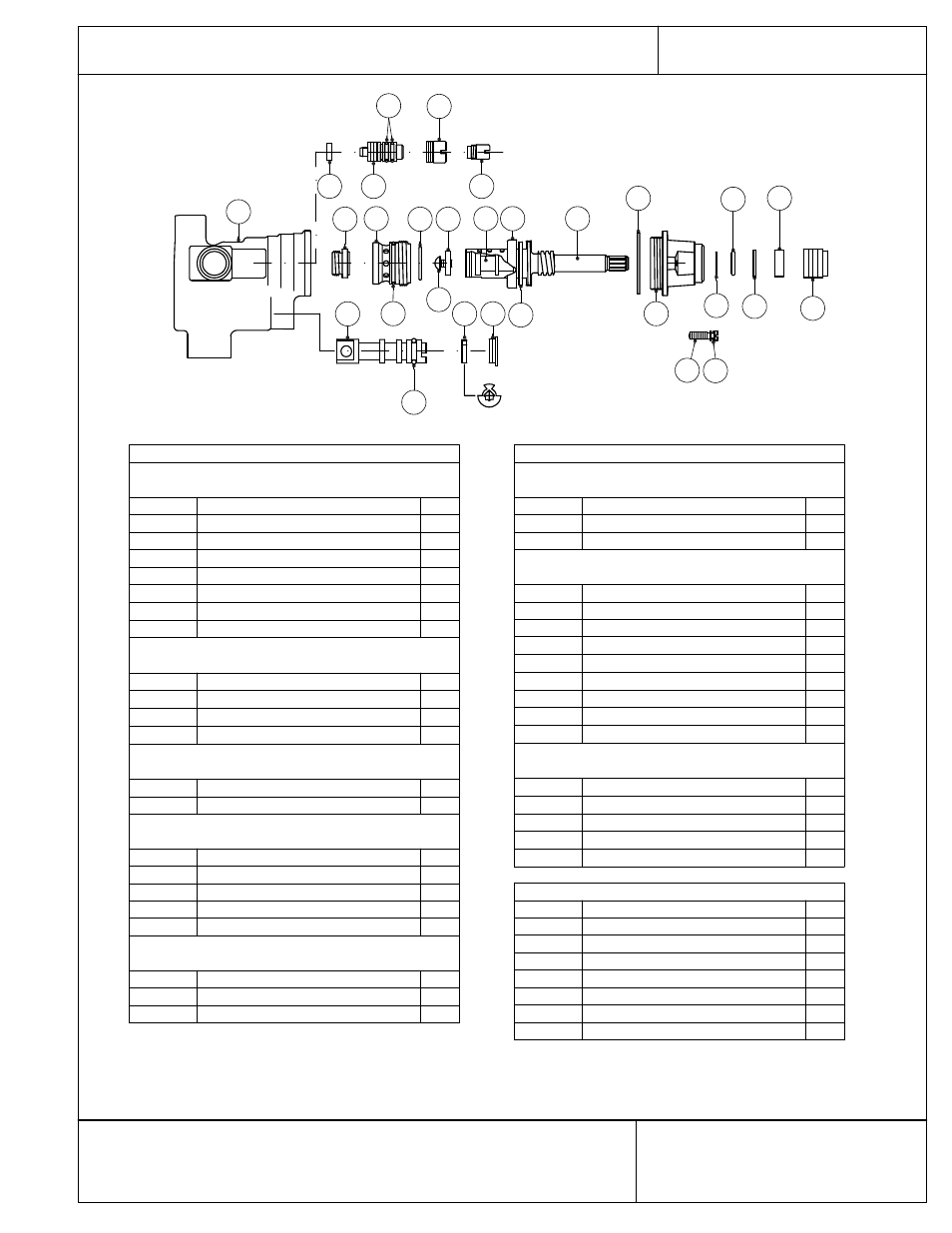

Installation Guidelines
W A T E R W O R K S
Waterworks is a registered trademark of Waterworks Inc.
1
27
28
29 30
20 21
18
19
17
16 13
14
2
3
8 9
4
5
6
7
10
24 22
23 25
26
REPLACEMENT PART KITS
ITEM NO. DESCRIPTION QTY.
1
1
1
1
1
1
1
1
1
1
2
2
2
1
1
1
1
1
1
1
CONTROL STEM REPLACEMENT KIT
2 CAP GASKET
11 CONTROL STEM
12 CONTROL PISTON
13 COLD WASHER RETAINER
14 COLD WASHER
16 HOT WASHER
17 WASHER RETAINING SCREW
SEAT REPLACEMENT KIT
18 COLD SEAT O-RING
19 INT. COLD SEAT O-RING
20 HOT WATER SEAT
21 COLD WATER SEAT
SEAT REPACEMENT KIT
COLD SEAT TOOL
HOT SEAT TOOL
CONTROL STEM WASHER REPLACEMENT KIT
2 CAP GASKET
13 COLD WASHER RETAINER
14 COLD WASHER
16 HOT WASHER
17 WASHER RETAINING SCREW
SERVICE STOP REPLACEMENT KIT
22 VALVE STOP
23 STOP O-RING
24 STOP GASKET
ITEM NO. DESCRIPTION QTY.
1
1
1
1
1
1
1
1
1
1
1
PACKING REPLACEMENT KIT
2 CAP GASKET
4 O-RING WASHER
5 O-RING
ADJUSTMENT SCREW REPLACEMENT KIT
8 ADJUSTMENT SCREW
9 O-RING
CAP REPLACEMENT KIT
2 CAP GASKET
3 BONNET
4 O-RING WASHER
5 O-RING
6 PACKING WASHER
7 RUBBER PACKING
8 ADJUSTMENT SCREW
9 ADJUSTMENT SCREW O-RING
10 PACKING NUT
6 PACKING WASHER
7 RUBBER PACKING
1
1
1
1
1
REPLACEMENT PART KITS
ITEM NO. DESCRIPTION QTY.
1
2
1 VALVE BODY
25 STOP RETAINER
ADDITIONAL ITEM LIST
11
26 SERVICE STOP CAP
27 DIVERTER SPINDLE
28 DIVERTER SPINDLE O-RING
29 DIVERTER KEY
30 DIVERTER RETAINER
2
1
1
1
1
12
