PRODUCT SUPPORT 800.927.2120 8am - 6pm EST

HENRY

Volume Control Valve Trim

INSTALLATION GUIDELINES

Page 2 of 2


11.2.2012

These guidelines have been prepared for the professional contractor to aid in the installation of:
HENRY VOLUME CONTROL VALVE TRIM WITH METAL CROSS HANDLE (STYLE# HNVC40) &
METAL LEVER HANDLE (STYLE # HNVC50)
All dimensions are based on original specification and are subject to change and variation.
Please consult your Design Associate for current specifications.
SEE SERVICE PART DOCUMENT FOR PART ORDERING, AVAILABLE ON WATERWORKS.COM

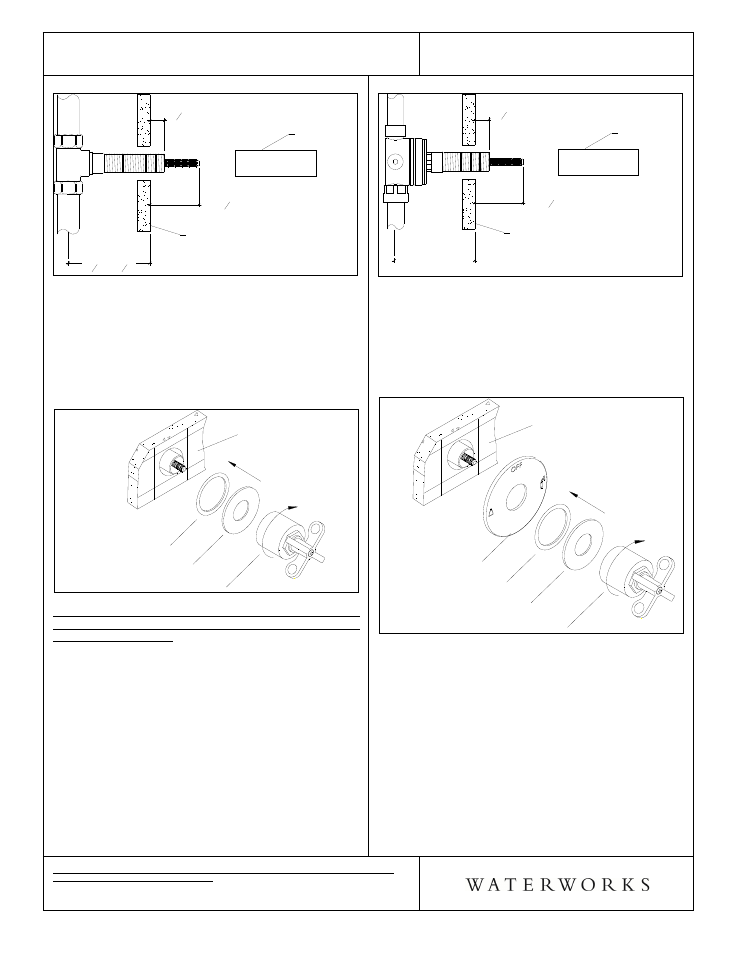

Figure - 01

ROUGH-IN

2

3

8

" - 3

3

8

"

FINISHED WALL

CUT SLEEVE

1

2

" FROM

FINISHED

WALL

CUT STEM*

1-

3

8

"FROM

FINISHED WALL

TILE GUARD

¾

See Figure - 02 for step 4

4. Pass the escutcheon, with rubber washer behind it,

over the cut threaded sleeve. Hold the escutcheon
against the wall and thread the handle assembly
onto the threaded sleeve, making sure the
escutcheon is centered and handle is in the correct
orientation.

Figure - 02

RUBBER WASHER

ESCUTCHEON

HANDLE ASSEMBLY

FINISHED WALL

CONTROL VALVE TRIM INSTALLATION WITH 2- WAY
or 3-WAY DIVERTER CONTROL VALVES
GUDV14R/23R/65/66:

¾

See Figure - 03 for steps 5, 6 & 7

5. Pull the tile guard off the threaded sleeve on the

diverter valve rough. Mark the threaded sleeve at
the finished wall. Unthread the sleeve and cut 5/8" in
front of the mark.

6. Mark the cartridge stem at the wall, then unthread

the cartridge from the valve body. Cut the cartridge
stems 1-1/2" in front of the mark.

7. After the cuts have been made, thread cartridge and

handles sleeves back onto valve body.


Figure - 03

ROUGH-IN

[SEE

SPECIFICATIONS]

FINISHED WALL

CUT SLEEVE

5

8

" FROM

FINISHED

WALL

CUT STEM*

1-

1

2

"FROM

FINISHED WALL

TILE GUARD

¾

See Figure - 04 for step 8

8. Hold the diverter plate† (SOLD SEPARATELY) and

escutcheon, with rubber washer behind it, up to wall
and thread the handle assembly onto the threaded
sleeve, making sure the diverter plate & escutcheon
are centered and handle is in the correct orientation.

Figure - 04

RUBBER WASHER

ESCUTCHEON

HANDLE ASSEMBLY

FINISHED WALL

DIVERTER PLATE

† Diverter Plates Sold Separately. (2-Way

Thermostatic Plate Shown).

¾

Installation with a rough-in depth greater than the

Maximum (indicated in the specification section)
requires extension kit WWPSV01.

¾

If required, a 1" stem extension is available

Style No. 890831
Item No. 29-72873-53591

¾

If further assistance is required, please contact

Product Support at 1-800-927-2120 (8am-6pm EST).

¾

See service part document for parts ordering,

available on WATERWORKS.COM.
