One Hole High Profile Kitchen Faucet with Lever Handle and Spray Installation Guidelines
Page 3 of 3
Rev - 01
10.31.2014
These guidelines have been prepared for the professional contractor to aid in the installation of:
.25 ONE HOLE HIGH PROFILE KITCHEN FAUCET WITH METAL LEVER HANDLE AND METAL SPRAY
(STYLE No. PTKM10, PT10KM UK).
All dimensions are based on original specification and are subject to change and variation.
Please consult your Design Associate for current specifications.
13. Inspect all connections for leaks.
14. With the SPOUT on, operate the SPRAY to ensure that
water is being diverted properly. No water should flow
out of the SPOUT while the SPRAY is being operated.
15. Shut the water off and re-install the AERATOR.
SERVICING THE PRODUCT:

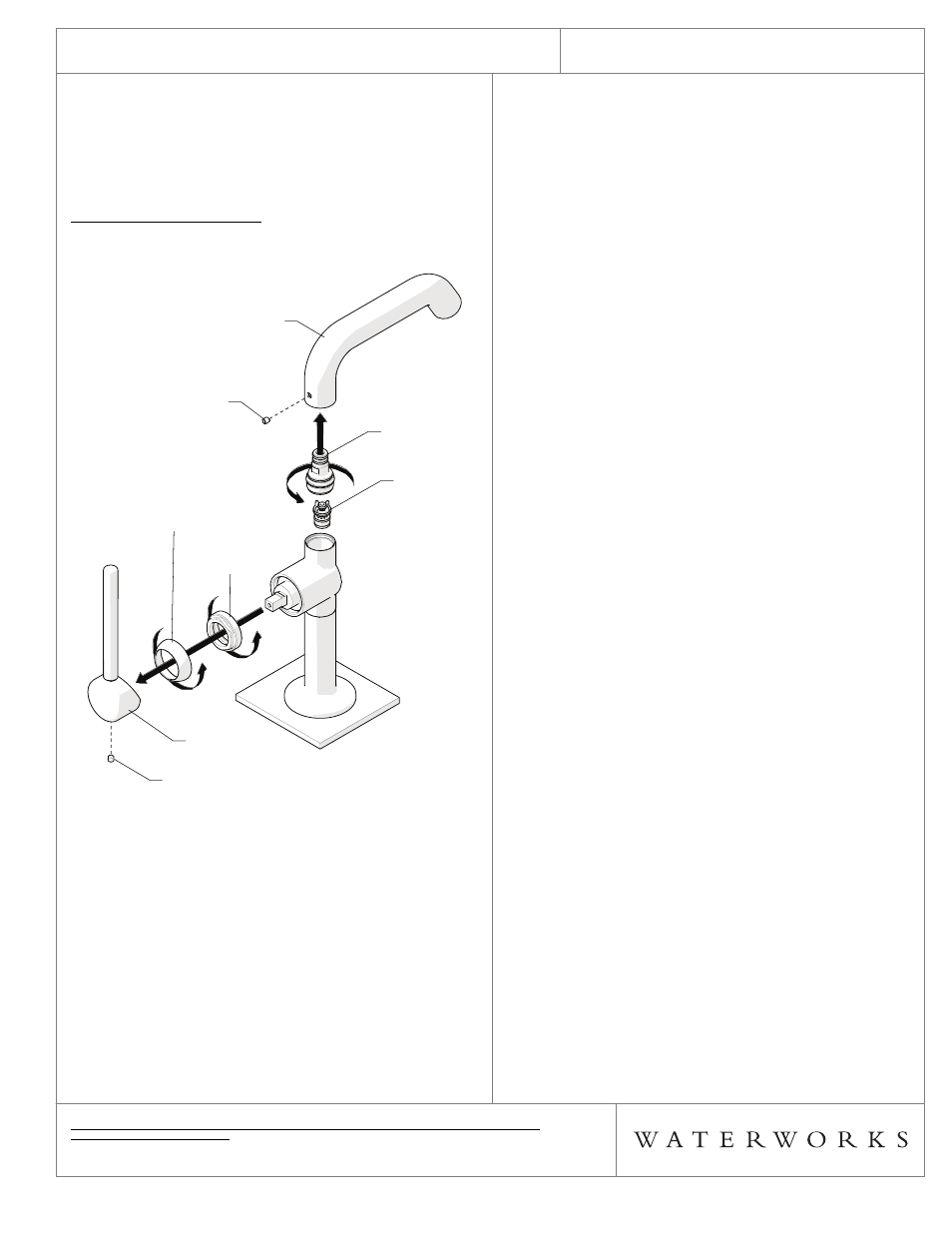

 Refer to FIGURE – 05 for steps 16 & 18.
FIGURE - 05
16. To remove the SPOUT, loosen the SET SCREW behind
the SPOUT then pull the SPOUT up to remove.
17. To access the DIVERTER, remove the SPOUT then
unthread and remove the SPOUT SLIP POST.
18. To access the CARTRIDGE, loosen the SET SCREW
beneath the HANDLE, pull the HANDLE off, unthread
the GLAND COVER then unthread the RETAINING
COLLAR to expose the CARTRIDGE.

If further assistance is required, please contact Product
Support at 1-800-927-2120 Ext 2 Monday through
Friday, 8am - 6pm EST.
DIVERTER
SET SCREW
SPOUT SLIP
POST
RETAINING
COLLAR
GLAND
COVER
SPOUT
HANDLE
SET SCREW
DIVERTER
SET SCREW
SPOUT SLIP
POST
RETAINING
COLLAR
GLAND
COVER
SPOUT
HANDLE
SET SCREW
* Putty contains oil and can cause permanent
discoloration on certain materials such as marble,
granite and any porous surface.
