Operating Manual

PSEN op4B Series

39

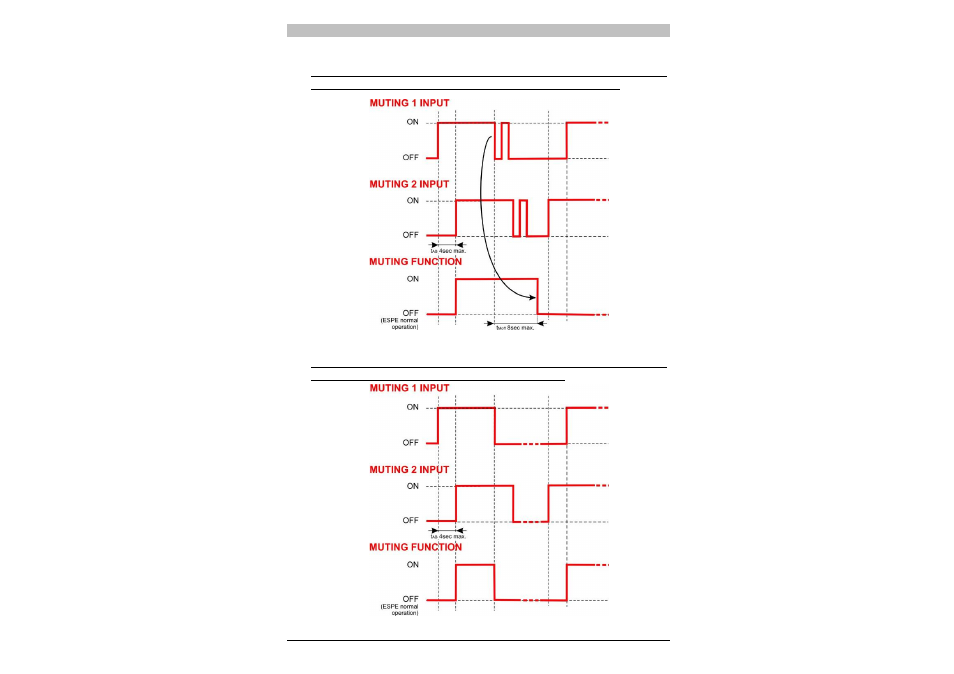

Timing diagram of the muting function for configurations with 2 sensors
(L-shaped version or linear version with 2 intersecting beams)

Timing diagram of the muting function for configurations with 4 sensors
(T-shaped version or linear version with 4 sensors)
