Operating Manual PSEN op4B Series
19

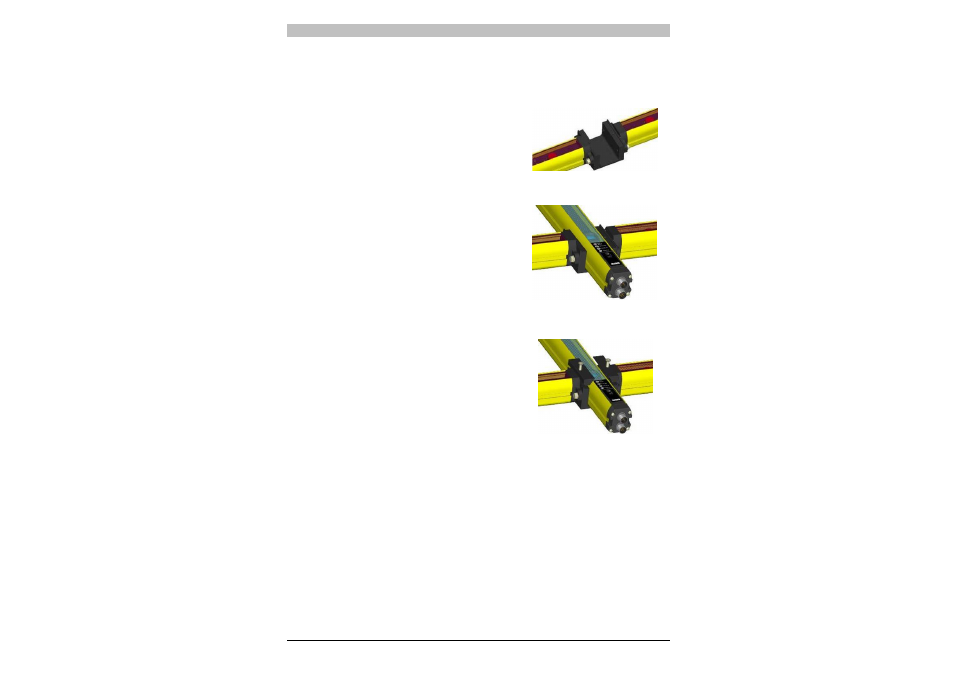

Fig. 14a
Fig. 14b
Fig. 14c
3.1 Installing the integral muting sensor profiles
with "L" and "T" shaped configuration
• Install the unit with the active muting
sensors on the receiver (RX) and the
unit with the reflectors on the emitter
(TX) of the safety light curtain.
• Use the fastening clip to attach the
muting sensor profile to the emitter
(TX) and receiver (RX) of the safety
light curtain. This ensures that the
muting sensor profiles are aligned
precisely and are perpendicular to the
light curtain units (Fig. 14a, Fig. 14b).
• With an "L" shape configuration:
Install the profile so that the object
can be detected before it reaches the
safety light curtain’s sensing area.
• Both muting sensor profiles must be
aligned in parallel. The muting
sensors are already aligned. Slight
adjustments may be made by moving
the fastening clip.
• For areas of heavy vibration
• You can choose where to position the
muting sensor profiles on the light
curtain units. (Typically 14 cm from
the bottom end of the light curtain unit).
