PSEN op4B Series Operating Manual
14
So, when installing the device close to reflective surfaces (metal walls,
floors, ceilings or workpieces), it is vital that the minimum distance in
relation to reflective surfaces is maintained, as shown in the diagram in
Fig. 8. This minimum distance depends on:
• The range between the emitter (TX) and receiver (RX)
• The maximum open angle of the light beams transmitted by the
emitter (TX):
5° for Type 4 ESPE (± 2.5° to light axis)

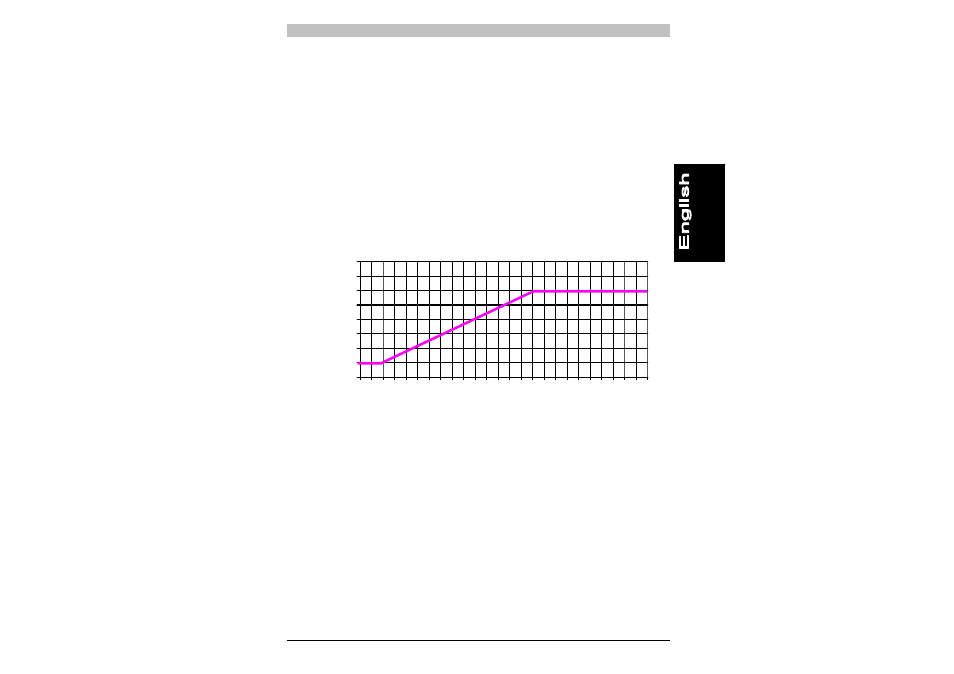

The values for the minimum distance in relation to the operating range
can be taken from the illustration in Fig. 8.
0
100
200
300
400
500
600
700
800
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
distanza operativa (m)
di
st
an
za super
fici
e r
ifl
et
tent
e (
m
m
)
Fig. 8
Type 4
safety
light curtain
re
flec
ting s
ur
fac
e
di
st
anc
e (
m
m
)
Operating distance (m)
