• Make sure that the muting sensors are used appropriately and in
accordance with the following specifications. Avoid connections
that are inappropriate and unmonitorable, so that any accidental,
potentially hazardous activation can be prevented.
2.2 General information on positioning the device
For effective protection it is necessary to proceed very carefully when
positioning the device; in particular, the device must be installed in
such a way that the danger zone cannot be accessed without
interrupting the protected field.

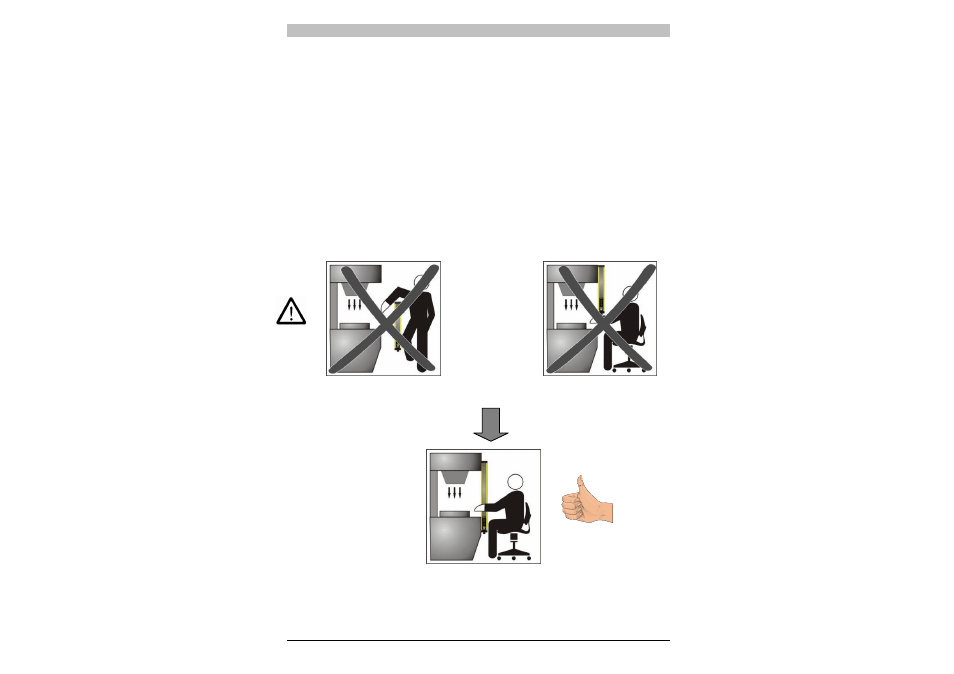

To exclude the possibility of the machine being accessed from above
or below (Fig. 3a), it is necessary to install a safety light curtain that is
long enough to completely cover access to the danger zone (Fig. 3b).
Fig. 3a
Fig. 3b
NO
