Operating Manual PSEN op4B Series
35
6.7 Muting function
The muting function enables the safety light curtain to be suspended
temporarily while material is transported through the protected field
(Fig. 24).
• "L" shape configuration: is suitable for applications in which an
object leaves the danger zone in one direction.
• "T" shape configuration: is suitable for applications in which an
object moves in two directions.
• Linear models: Are suitable for applications on which the sensors
are intended to be positioned individually. A plug connector
enables the muting sensors to be connected simply.

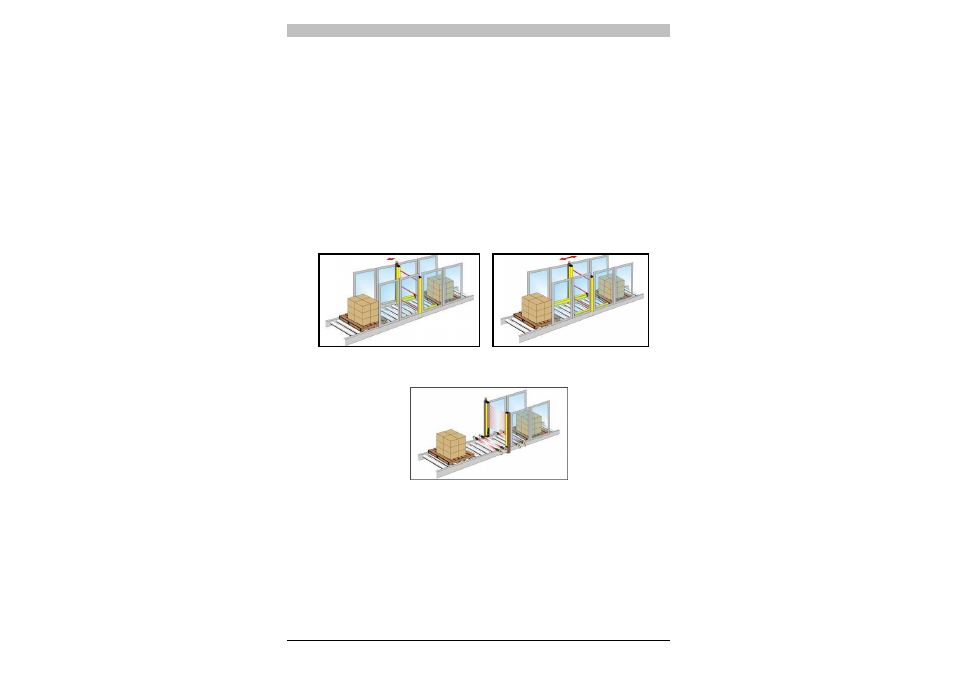

L-shape version with integral muting
sensors for muting in one direction
(leaving the danger zone) T-shape version with integral muting
sensors for muting in two directions
Linear version with external muting sensors
Fig. 24
