LB-MAN-100W / 270W 1-3
English
CAUTION
• Do not place anything on top of the Light Source. Do not store liquid above the Light
Source.
• Clogged or blocked vents may cause Light Source overheating and will result in thermal
shutdown. Keep the Light Source clear of any obstructions.
• Fully close the attenuator before turning on the Light Source or when operational but not
in use.
4 Operating Instructions
4.1 Controls
Power On/Off Switch
Plug hospital grade Power Cord into a grounded “Hospital Grade” or “Hospital Use” receptacle to
ensure grounding reliability.
Press Main Power Switch ON (I pressed in).
The lamp will continue to operate until the power switch is moved to the OFF position (O pressed
in). If the lamp cannot be started or stops operating see Section 8: Troubleshooting.
NOTE: • It is normal to hear clicking (10 pulses or less) before the lamp is started.
• To insure proper operation, wait thirty (30) seconds between on/off cycles.
Fiber Port
To increase the versatility and applicability of use, the CL Series light sources are designed to use
either a Micro Link
®
Fiber or a fiber bundle via the Multi Link™ Port and Multi Link™ Expansion Port.

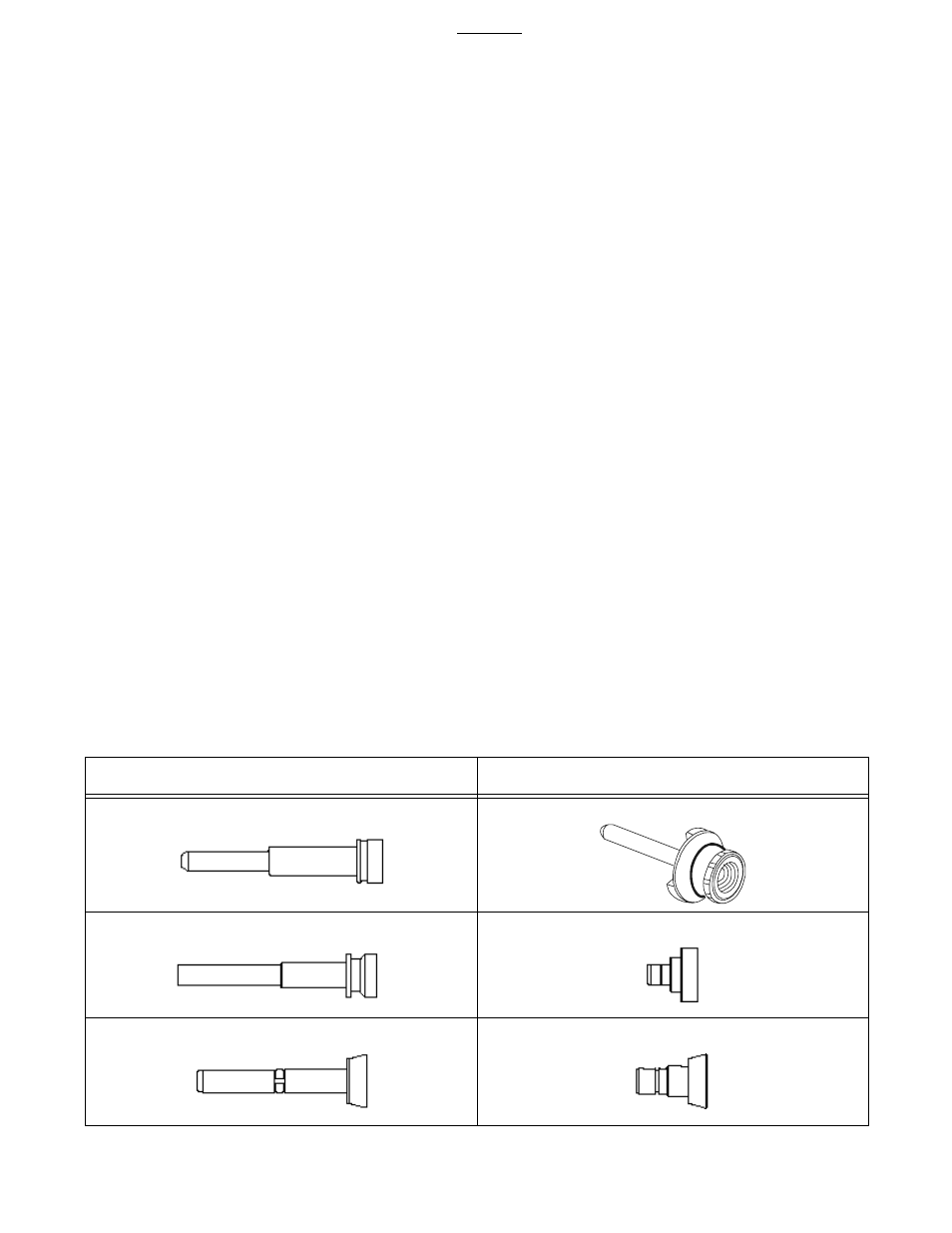

Cable Compatibility Table
Multi Link™ Port Multi Link™ Expansion Port
Welch Allyn Micro Link
®
Fiber
Karl Storz ACMI
Olympus Wolf, Dyonics
