3 System Description
System Components
The system consists of a Sensing Unit and a Bedside Unit connected by a cable.
1.Bedside Unit
2. Sensor

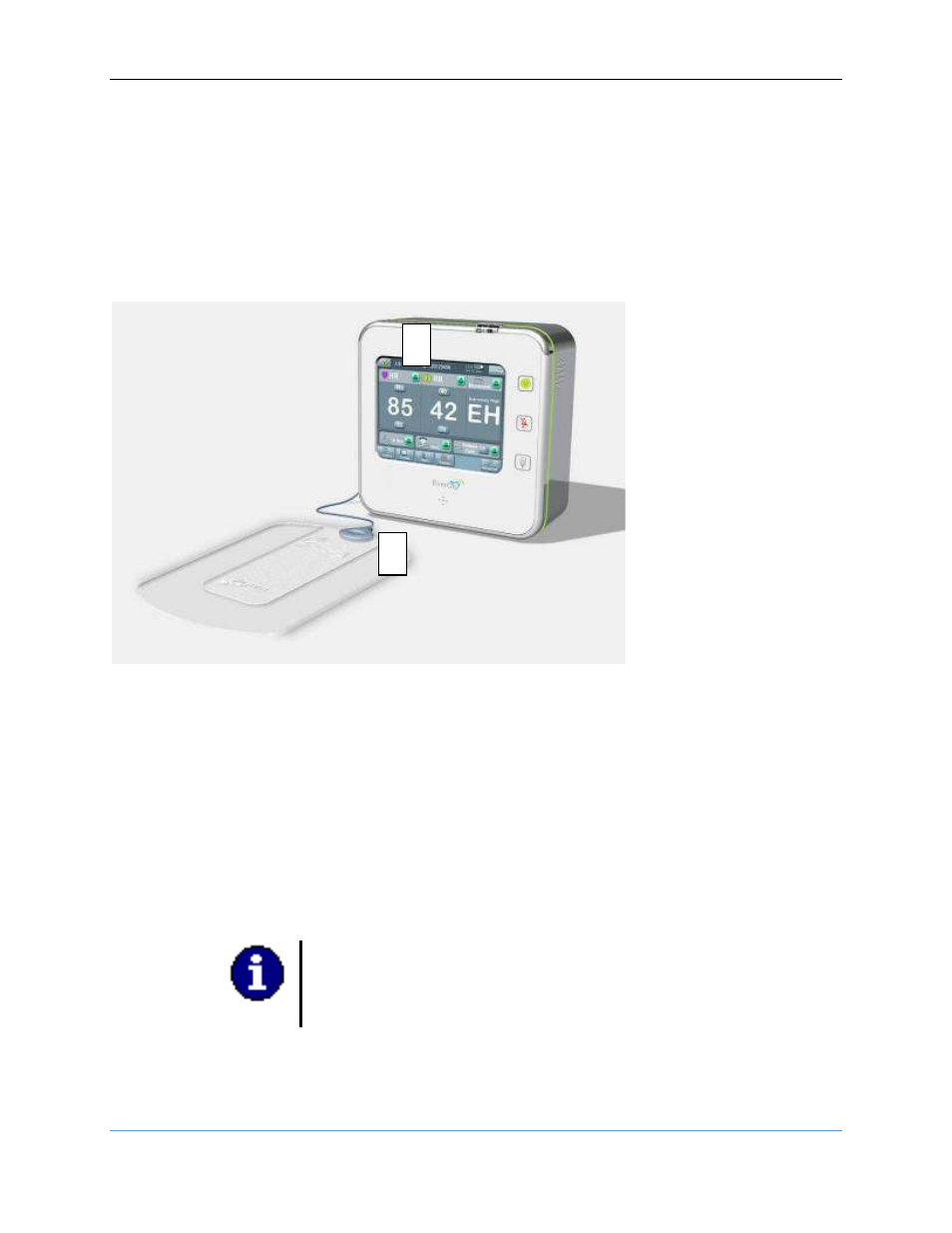

Figure 4: The EarlySense System Components
Sensor
The Sensor is placed under the mattress (See Positioning the Bedside and Sensing Unit,
page 23) and detects a signal generated by the patient's breathing, heartbeat and motion.
The sensor’s cable, which should be connected to the bedside unit, is three-meter long.
Sensor Extension Cable
Only if required, an optional two-meter extension cable for the sensor is available.
Note
Use only one extension cable per sensor.
1
2
