Displaying storm characteristics
Conditions: the Storm Characteristics
layer is active (
Y
page 267) and weather data
is available.

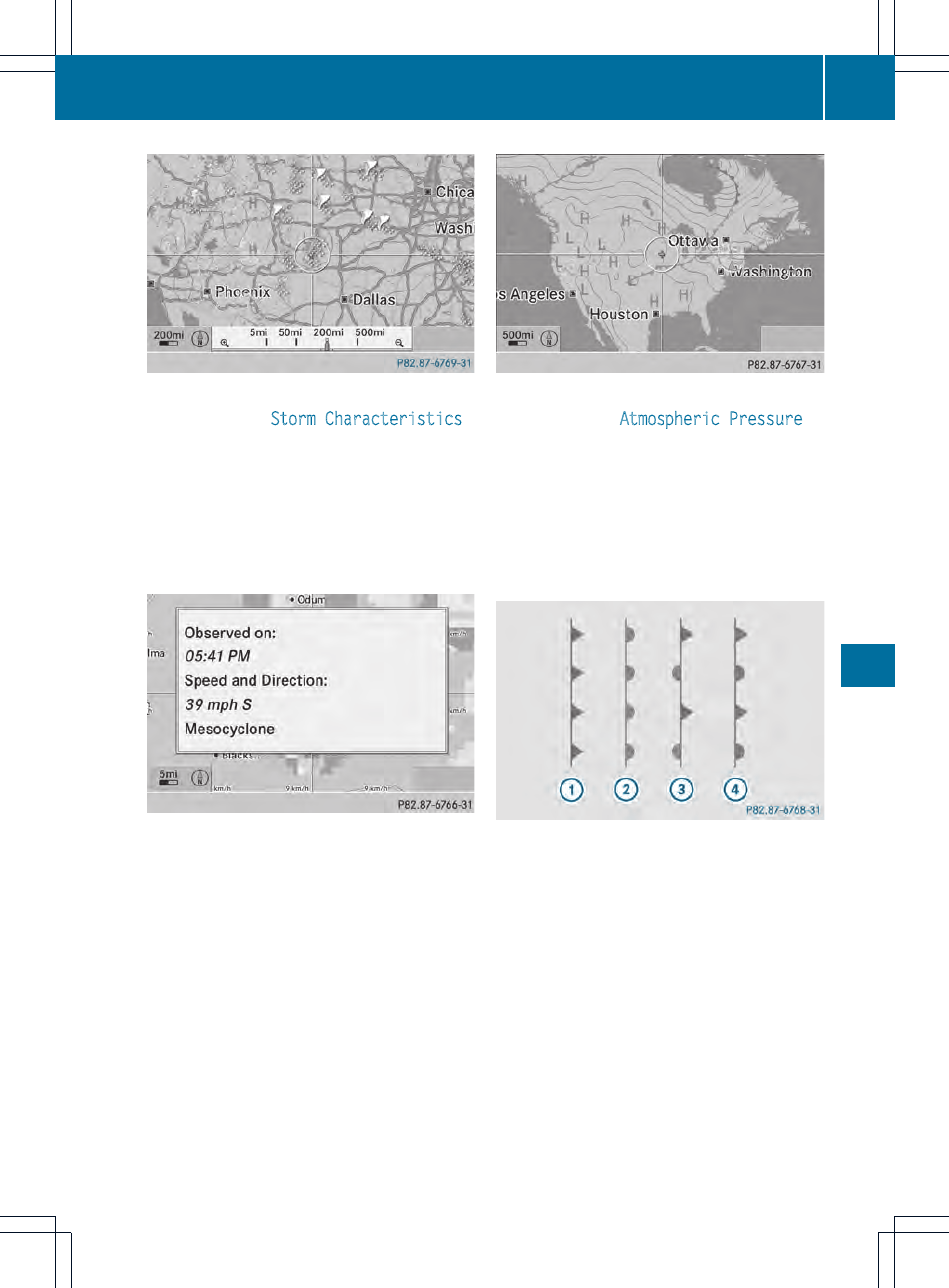

In the example, the weather map shows a
hailstorm and tornadic storms with the path
and directional movement speed.
The storms legend can be called up
(
Y
page 271).
Example: weather map with information on a
cyclone
X
Slide XVY, ZVÆ or aVb the COMAND
controller and move the crosshair onto a
corresponding symbol.
X
Press W the COMAND controller.
The following information is shown (if
available):
R characteristics of the storm cell
R date and time of observation (time stamp)
R directional movement speed and path
i The directional movement speed is the
speed at which the storm cell moves.
Example: weather map showing weather fronts
Conditions: the Atmospheric Pressure
layer is switched on (
Y
page 267) and weather
data is available.
The example shows the position of high and
low-pressure areas (H, L), weather fronts and
isobars.
i Isobars are lines that show where the air
pressure is the same.
Legend: weather fronts
:
Cold front (blue line with blue triangles)
; Warm front (red line with red semi-circles)
= Stationary front (red-blue line with red
semi-circles and blue triangles)
? Occlusion (violet line with a violet semi-
circle and triangles)
Weather map
