Explanation of the layers on the weather map
Layer Map display Selectable
scales
Radar Map Shows the rain radar as a colored area on the map.
For an explanation of the colors, see the legend
(
Y
page 271).
All
Storm
Characteristics
Shows the characteristics of a storm
Characteristics are:
R tornadic storm:
storm cell with strong winds (super cell), from
which a tornado can develop. Tornadoes are
also known as twisters.
R cyclone:
storm cells from which a tornadic storm can
develop
R hailstorm
R the likelihood of a hailstorm
All
Atmospheric
Pressure
Shows the position of high and low-pressure areas
(H, L), weather fronts and isobars
200 mi
(200 km)
500 mi
(500 km)
Tropical Storm
Tracks
Shows the path/directional movement speed of a
tropical storm with time and strength information
All
Winds Shows the wind direction and wind speed 5 mi (5 km)
Sample displays of weather data in
the map

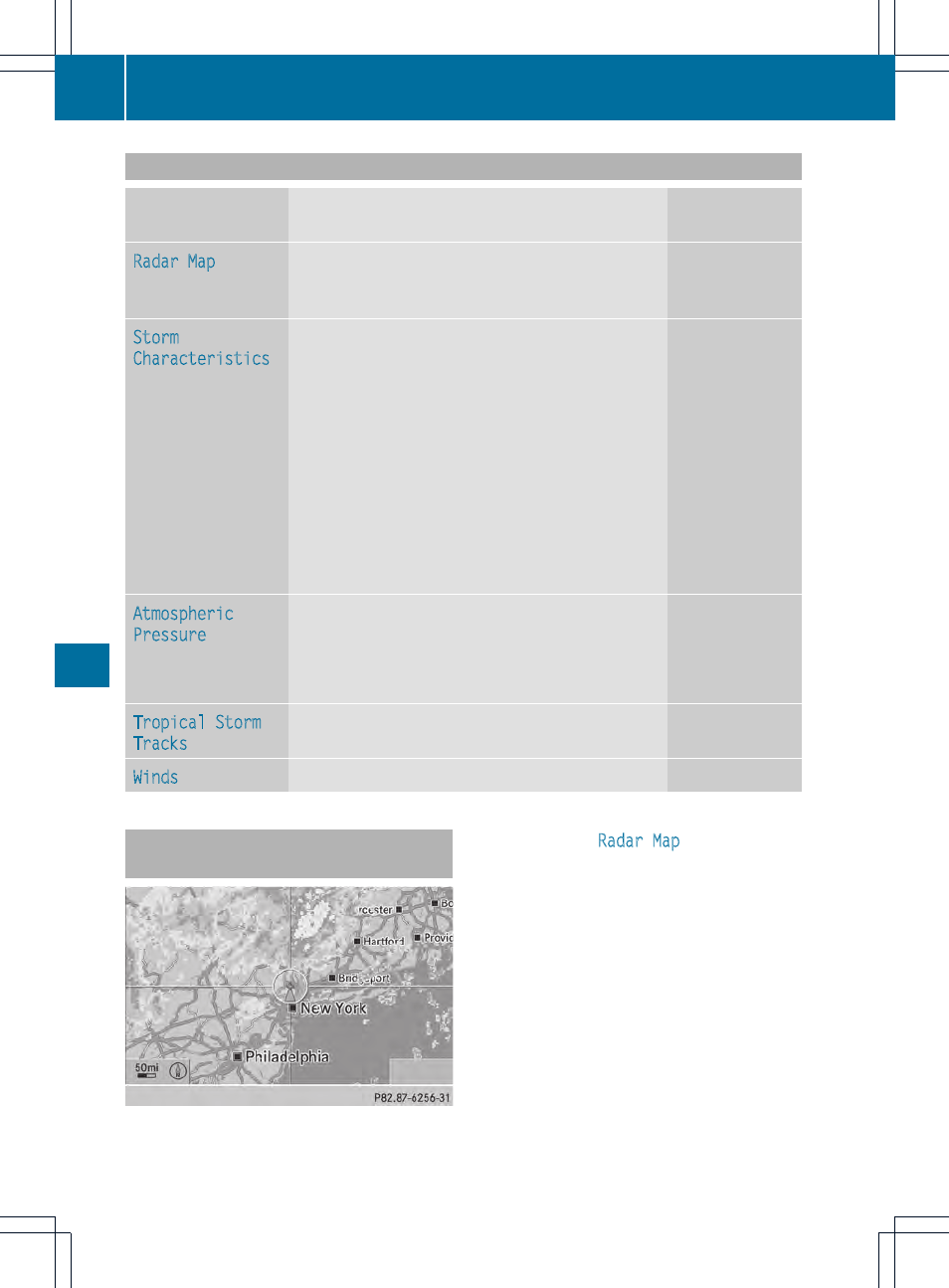

Weather map showing the rain radar
Conditions: the Radar Map layer is active
(
Y
page 267) and weather data is available.
The precipitation radar legend can be called
up at (
Y
page 271).
268
Weather map
