6 SATA Flash Module
The AM4024(E) provides an optional SATA Flash module with up to 64 GB NAND flash memory. The SATA
Flash module is connected to the AM4024(E) via the board-to-board connectors J7 located on the
AM4024(E) and J2 located on the SATA Flash module. The SATA Flash module has been optimized for
embedded systems providing high performance, reliability and security.
Note: If the SATA Flash module is installed, the J7 interface is not available for the RTC Backup
Battery module.
6.1 Technical Specif ications
Note: Write protection is available for this module. Contact Kontron for further assistance if
write protection is required.
6.2 SATA Flash Module Layout

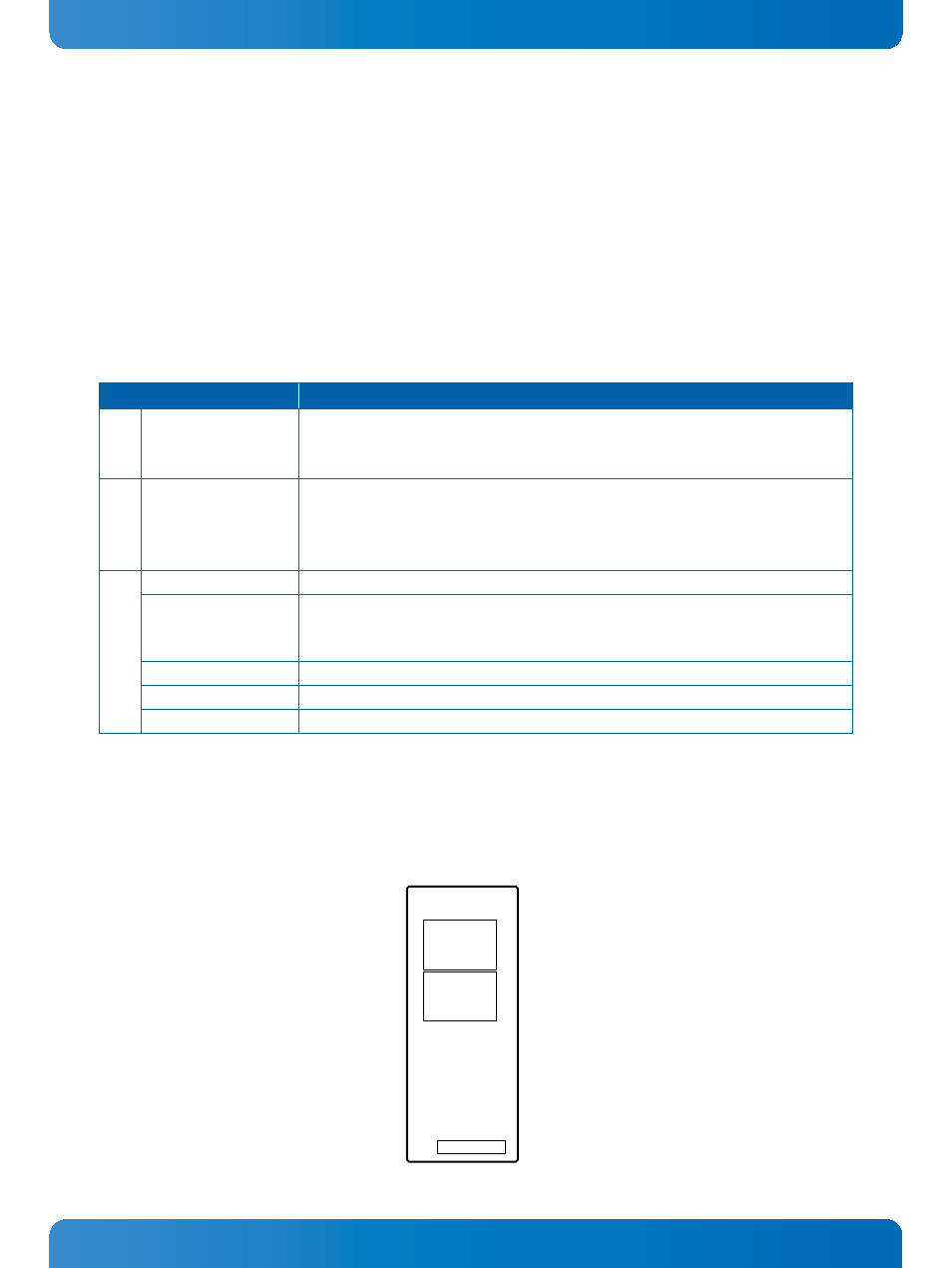

Figure 16: SATA Flash Module Layout (Bottom View)
Table 41: SATA Flash Module Main Specifications
FEATURES SPECIFICATIONS
In
te
rf
ac
e Board-to-Board
Connector One 34-pin, male, board-to-board connector, J2, for interfacing with the AM4024(E)
Mem
or
y
Memory Up to 64 GB SLC-based NAND flash memory
» Built-in full hard disk emulation
» Up to 100 MB/s read rate
» Up to 90 MB/s write rate
Ge
ner
al
Power Consumption typ. 1.0 W; 3.3 V supply
Temperature Range Operational: 0°C to +60°C Standard
-40°C to +70°C Extended (on request)
Storage: -40°C to +85°C
Climatic Humidity 93% RH at 40°C, non-condensing (acc. to IEC 60068-2-78)
Dimensions 70 mm x 28 mm
Board Weight ca. 14 grams
J2
NAND
Flash
NAND
Flash
