Page 56
D R A F T — F O R I N
T E R N A L U S E O N L Y
56
www.kontron.com
User Guide
AM4024(E)
5.1.1 Airflow Impedance
The following figure shows the airflow impedance curves of the AM4024(E) module.
No card guides or struts have been used for the measurements because the resulting airflow impedance
depends on individual configuration of the AMC carrier or MicroTCA system.

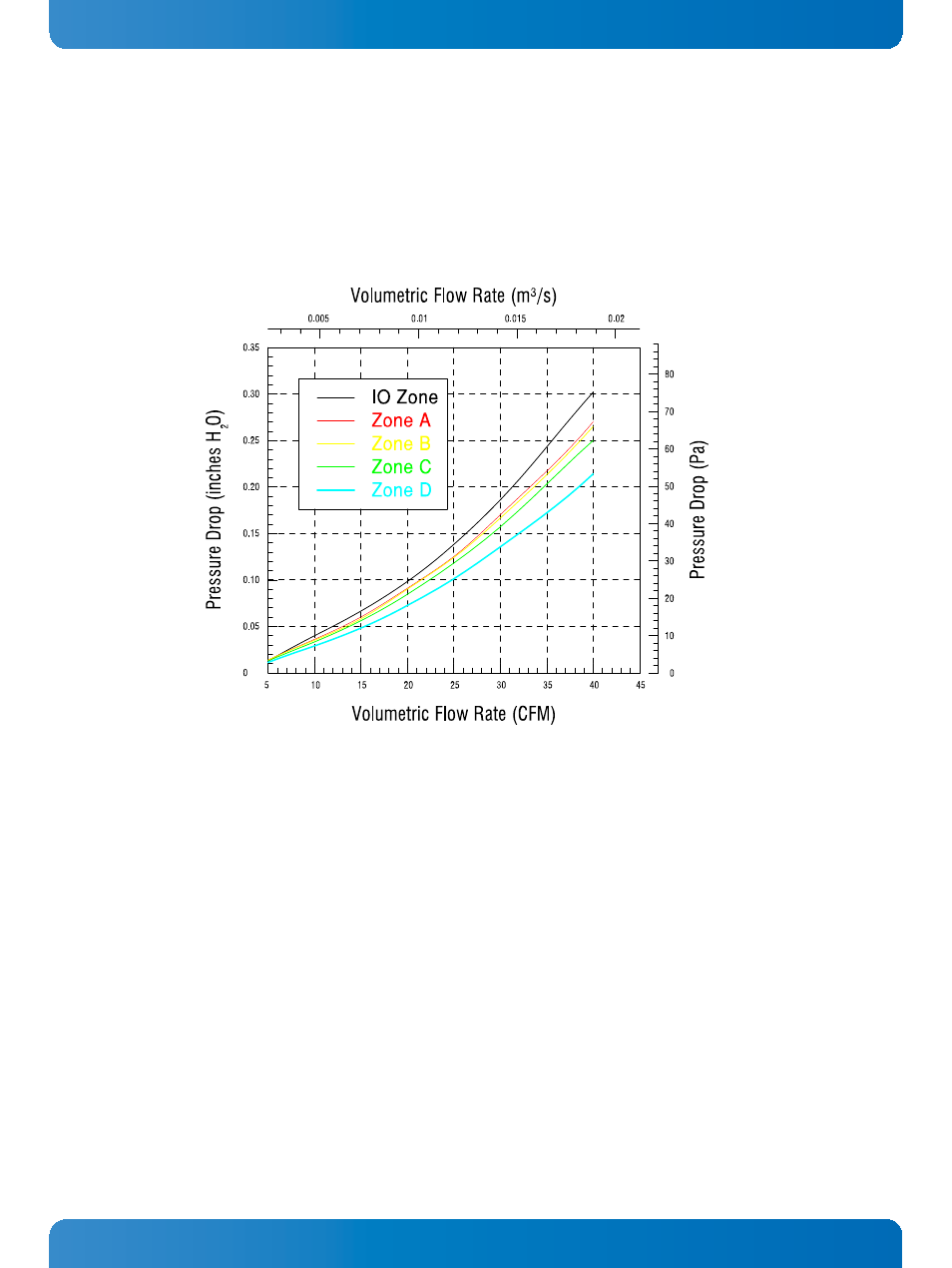

Figure 14: AM4024(E) Airflow Impedance
The following table indicates the pressure drop ranging from 5 to 40 cfm volumetric flow rates.
