4 battery connector, Pitx-sp user's guide – Kontron pITX-SP User Manual
Page 37
KTD-S0002-I
Page 32
Power Supply
p
ITX-SP User's Guide

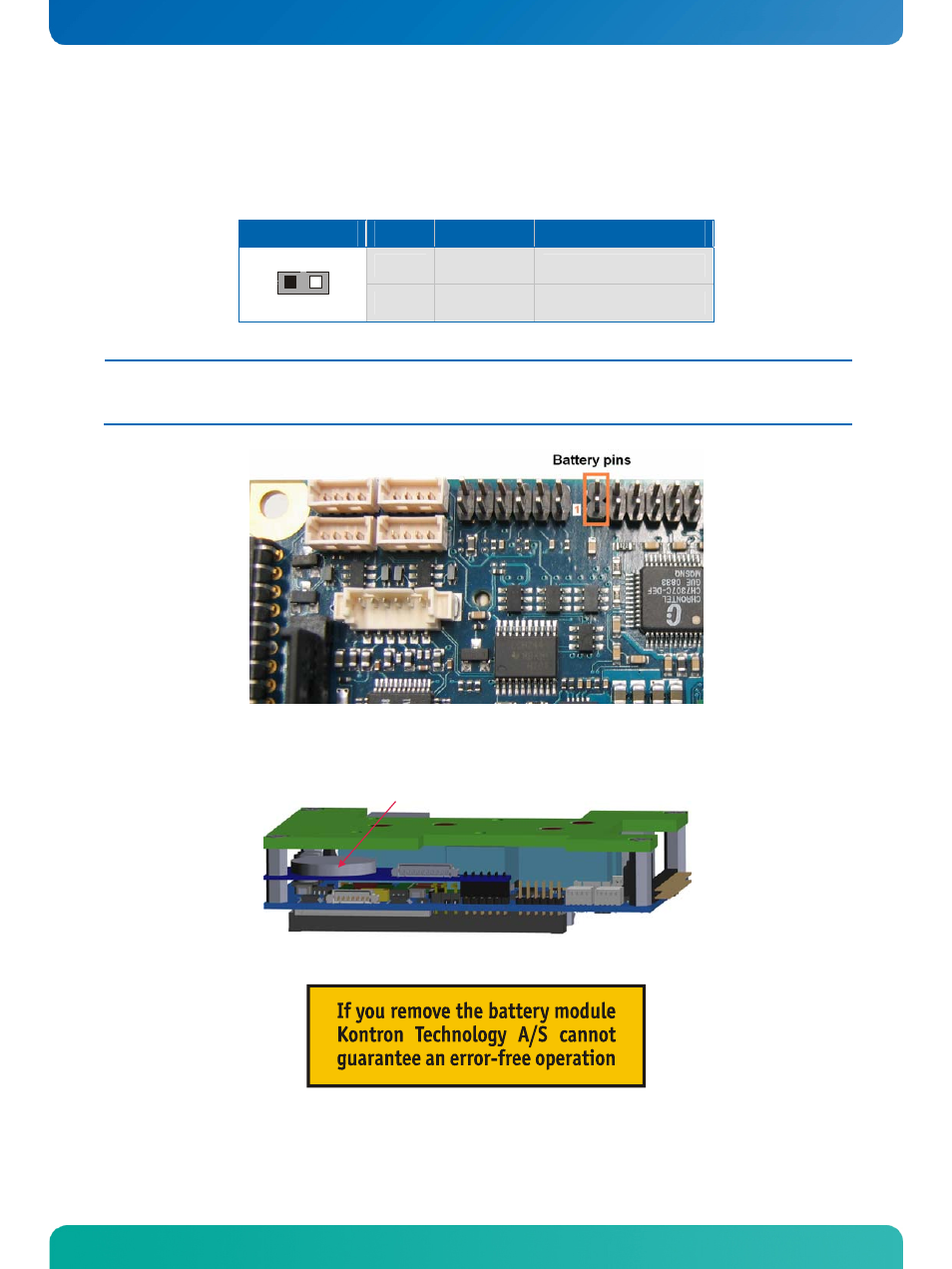

14.4 Battery Connector
The battery interface is available through the pin strip J1800 (2 pins).
Header
Pin
Signal Name
Function
1
VBAT
1)
Battery input voltage +3V
1
2
2
GND
Ground
Note:
1)
To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
When the board is shipped the RTC battery is mounted on the RTC battery module.
Battery
