KTD-S0002-I Page 14 Graphics Interface
p ITX-SP User's Guide
Note: 1) To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
Warning: Check jumper J1803 (Panel Power) for correct settings for your panel – not doing so might cause permanent damage to
your panel.
6.3 Connecting a Flat Panel
To determine whether your flat panel is supported check the Display Cable Guide on the KONTRON web site.
If you use one of those adapters supplied by KONTRON configuration is easy:
Check whether you have the correct adapter and cable for the panel you plan to use. Inspect
the cable for damages. Disconnect the power from your system.
† Check jumper J1803 for correct panel voltage ( Pos. 1-2 = +3.3V 2-3 = +5V ).
‡ Connect an external power supply for the correct backlight voltage.
ˆ Connect the cable to the flat panel connector J1802 on the pITX-SP and connect the other end
to your display.
‰ Connect a DVI monitor to the DVI-D connector. Hint: the default boot display setting in the
BIOS Setup is DVI.
Š Supply power to your system. Enter the BIOS Setup and choose the option 'LCD Only' at menu
'Advanced/Display Configuration/Boot Display Device' and in addition set the desired display
resolution at 'Flat Panel Type'.
‹ If you still do not see improvement consider contacting the dealer for technical support.

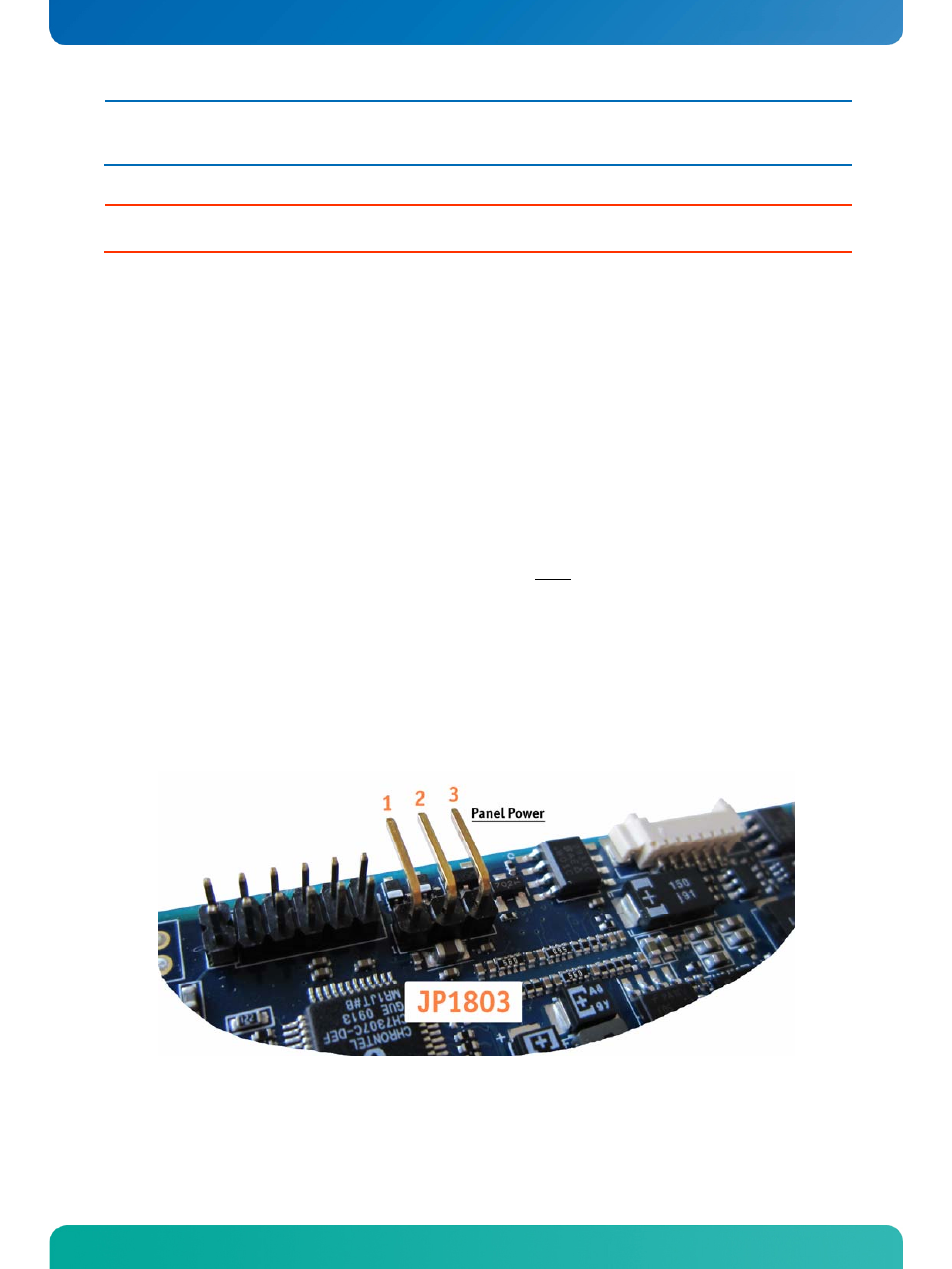

6.4 Flat Panel Jumper
