KTD-S0002-I Page 31 Power Supply
p ITX-SP User's Guide
+3.3V
300R
C
o
nn
e
c
to
r
+
-
Harddisk LED
14.2.1 Harddisk LED

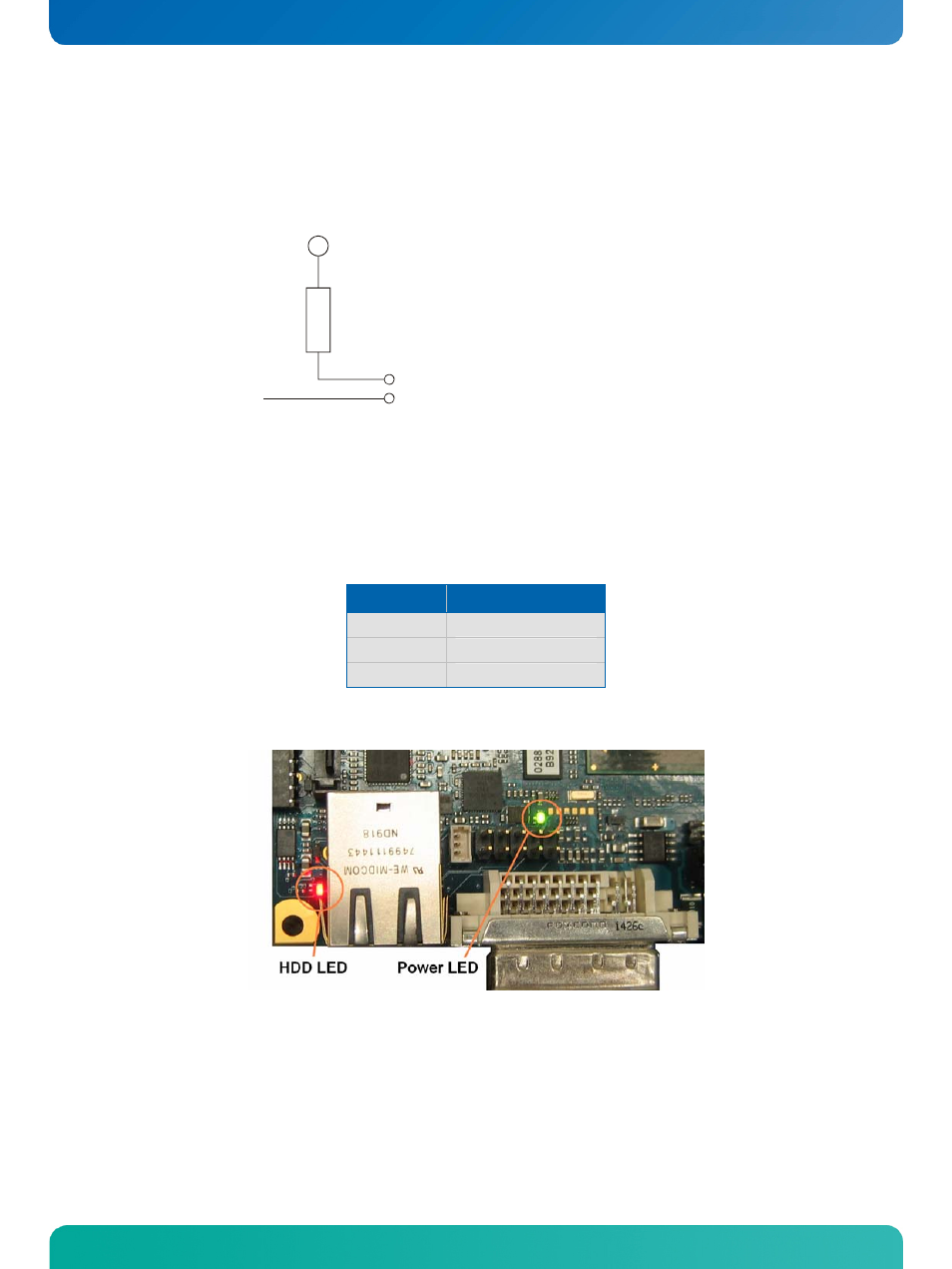

The following picture illustrates the onboard wiring.
14.3 Onboard Status LEDs
Two additional LEDs indicate the power and the harddisk status. The power LED can take the following
states.
Power State LED Display
S0 Continuous ON
S3 Blinking
S5 Continuous OFF
