C H A P T E R 3
Bridge Installation—Stationary Dyno
3-36
I NSTALLING THE R UNNER M OUNTS AND R UNNER S UPPORTS
Refer to Appendix D for instructions on installing the bridge extension kit.
1
Place the runner mount (z-shaped) with eight round holes on top of the drum
guard.
Note: The standard runner mount is smaller than the extended runner mount
used with the bridge extension kit. Be sure to use the correct runner mount for
your installation.
2 Place the runner clamp plate with eight round holes on top of the runner mount.
3 Loosely secure each runner mount and runner clamp to the dyno using three
3/8 x 1.5-inch flange hex bolts.
4 Secure two runner support pillars to each runner support using two
1/2 x 3-inch hex bolts, lock washers, and nuts per support pillar.
Note: Use the inner holes on the runner support closest to the outside of the
dynos. Use the outer holes on the runner support closest to the center of the
dynos.
5 Stand up the runner support assemblies and place approximately 119.38 cm
(47.00 in.) from the stationary dyno.
Note: Do not secure the runner support to the floor at this time.

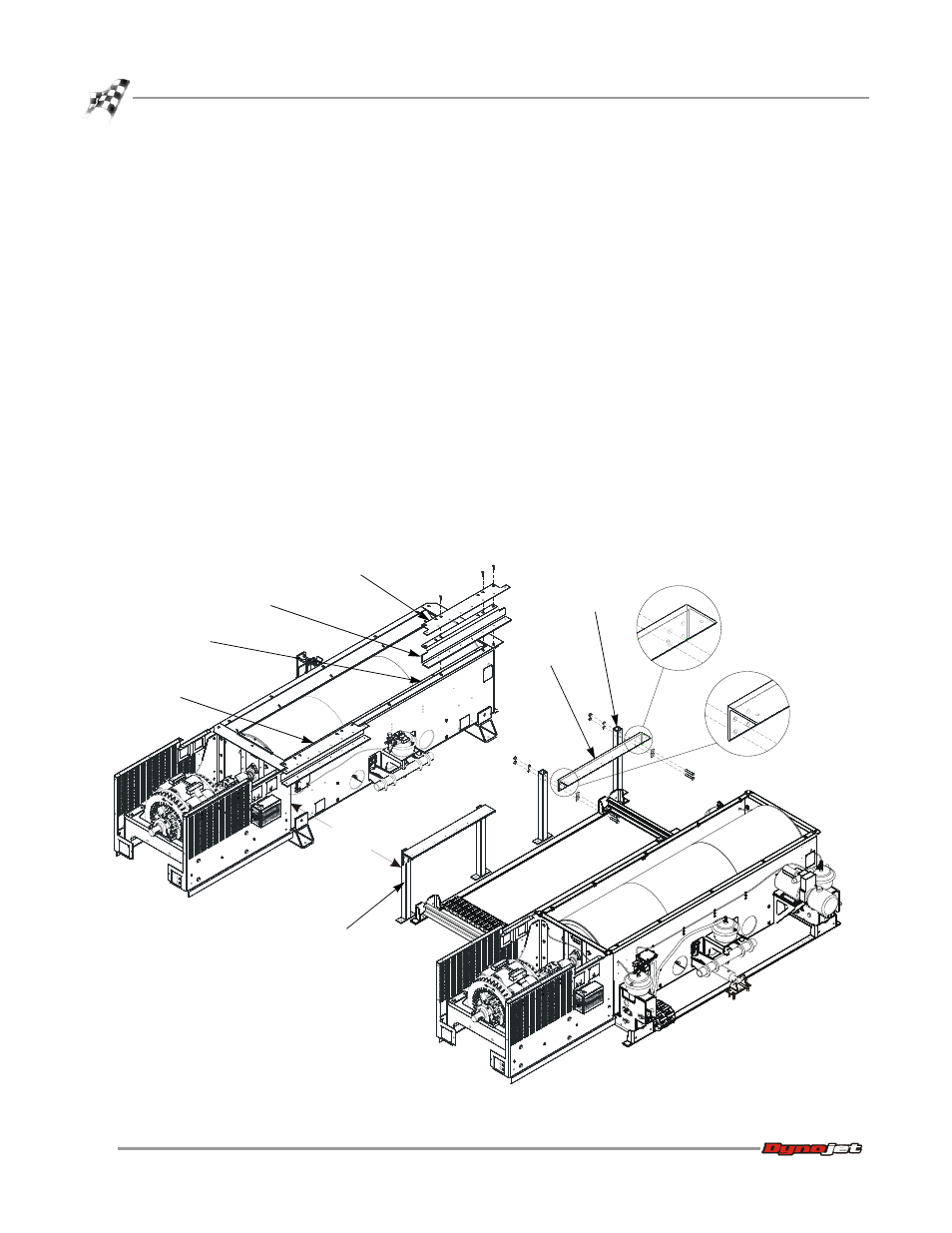

Figure 3-24: Install the Runner Mounts and Runner Supports
AD491
runner mount
assembly
runner clamp
runner mount
runner
support
runner support
pillar
runner support
assembly
drum guard
119.38cm
(47.00 in.)
inner holes on
runner support
outer holes on
runner support
