4 W D D Y N O I N S T A L L A T I O N
Hydraulic Movement Installation
Version 8 Above Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
3-27
4 Using the floor cylinder mount as a template, mark each hole needed to secure
the mount to the floor.
5 Remove the clevis pin, spacers, and floor cylinder mount.
6 Move the hydraulic ram out of the way.
7 Drill the holes marked in step #4.
8 Install the Red Head anchors. Refer to Appendix A for installation instructions.
9 Secure the floor cylinder mount to the floor using four 3/8-16 x 1-inch hex bolts
and four 3/8-inch flat washers.
Note: Four 3/8-16 x 1.25-inch hex bolts were included if you find the anchors are
too deep for the 3/8-16 x 1-inch hex bolts.
10 Secure the hydraulic ram to the floor cylinder mount using the clevis pin and two
spacers removed in step #5 and one hairpin cotter.

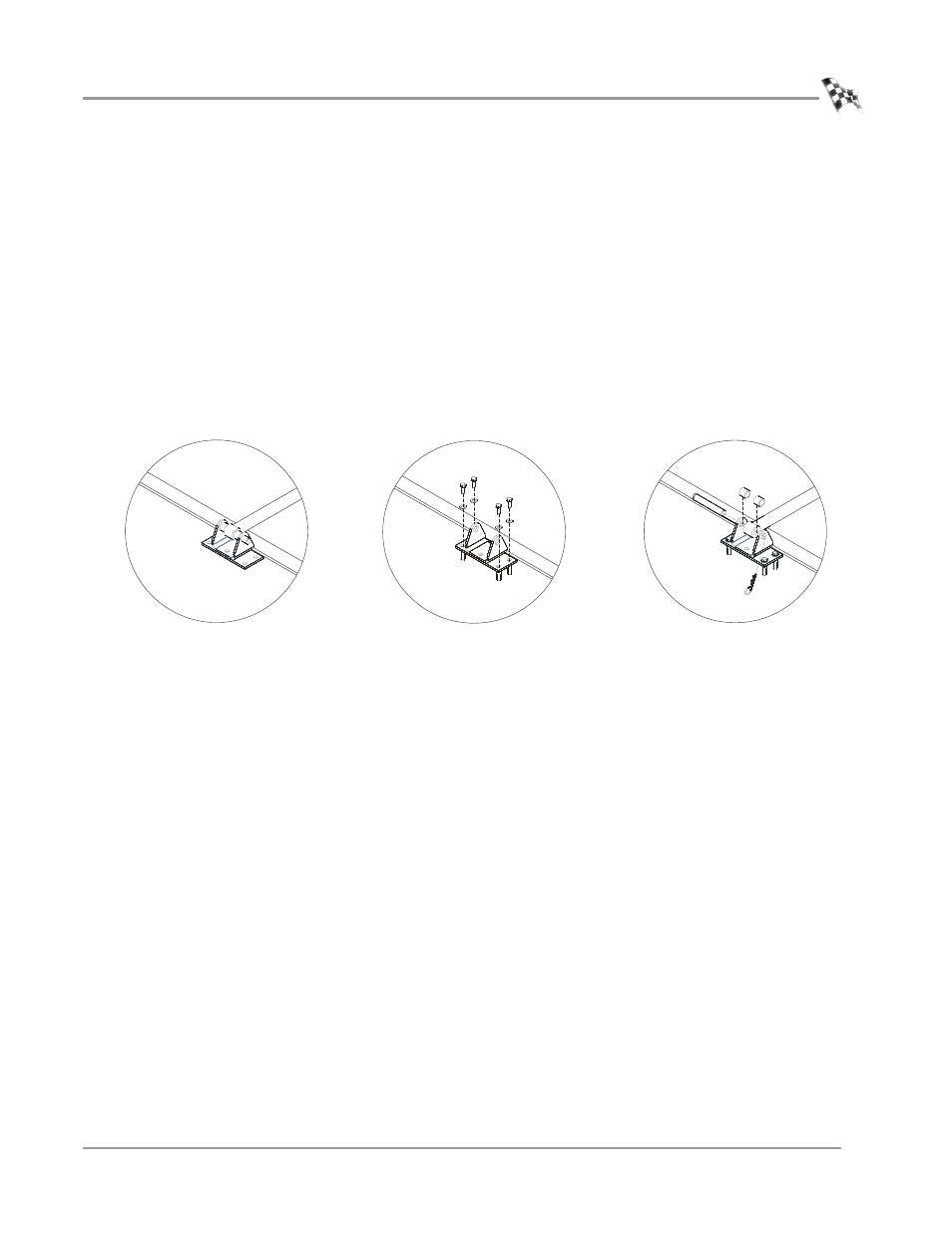

Figure 3-17: Secure the Floor Cylinder Mount to the Floor
AD472
secure the hydraulic ram to
the floor cylinder mount
use the floor cylinder
mount to mark holes
install the anchors and secure the
floor cylinder mount to the floor
