Dyno Installation
Version 8 Above Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
3-9
P LACING THE D YNO ON THE T RACK
You will need to keep the cable track routed underneath the dyno and towards the
stationary dyno.
You will need the following parts:
• 26152020 Spacer, Rail Clamp (8)
• 36800973 Bolt, Shoulder, 3/8-16, 1/2"D x 1"L (8)
1 Remove the cotter pin and pin from all four cradle assemblies as shown in
Figure 3-5.
2 Verify the rail clamps are positioned as shown in Figure 3-5.
3 Verify the hydraulic movement motor is facing away from the stationary dyno.
4 Using the forklift, gently lower the dyno onto the rails.

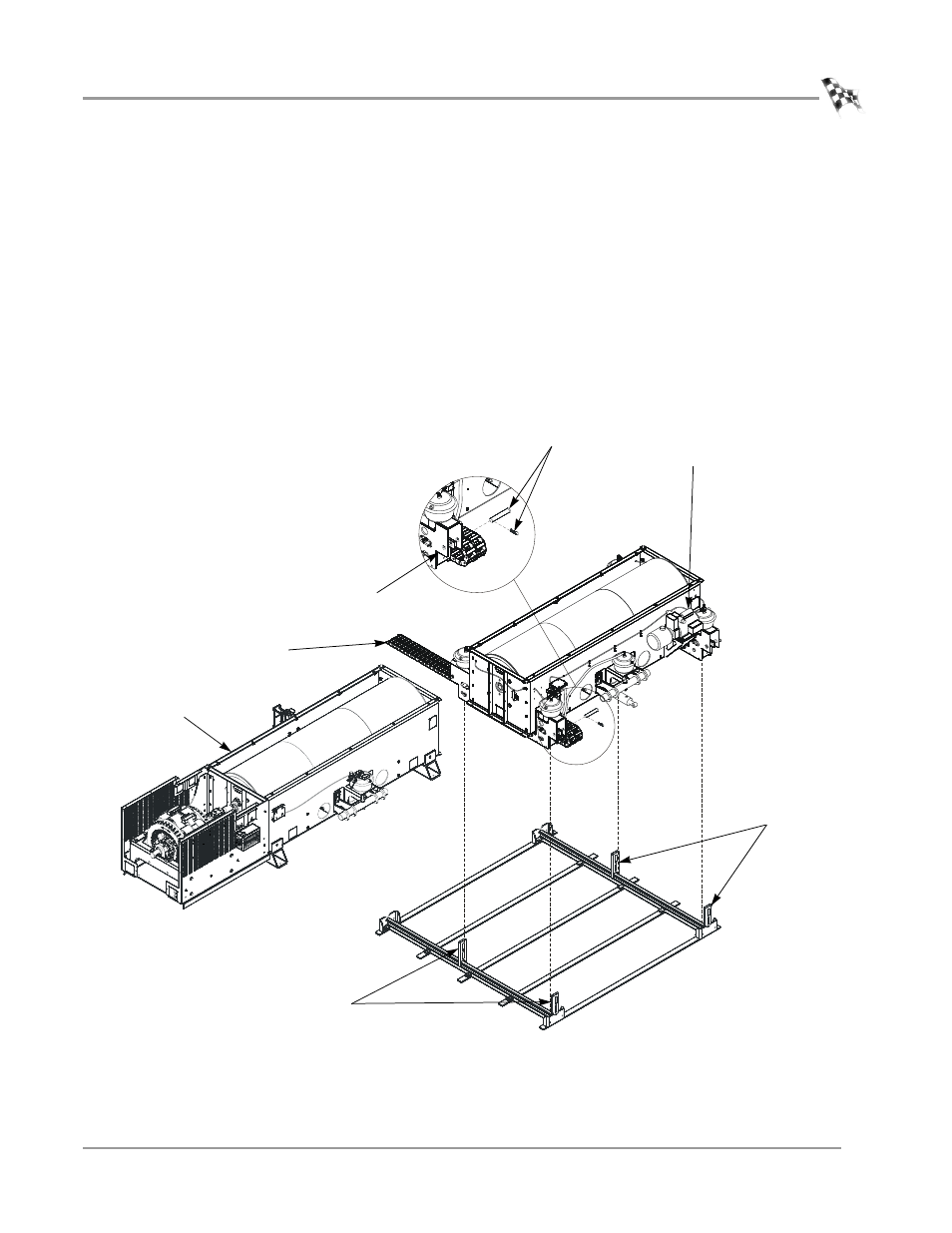

Figure 3-5: Lower the Dyno onto the Rails
AD352
rail clamp
hydraulic movement
motor facing away
from stationary dyno
cable track under dyno and
towards stationary dyno
rail clamp
cradle
assembly
pin and cotter pin
stationary dyno
