S T A T I O N A R Y D Y N O I N S T A L L A T I O N
Dyno Installation
Version 8 Above Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
2-11
3 Align the interface guide pin on the lift cross member with the interface bracket
on the dyno. The interface bracket is already installed on the dyno.
Note: The distance between the dyno and the lift may need to be adjusted.
4 Lower the lift until the interface guide pin just starts to enter the interface bracket
on the dyno.

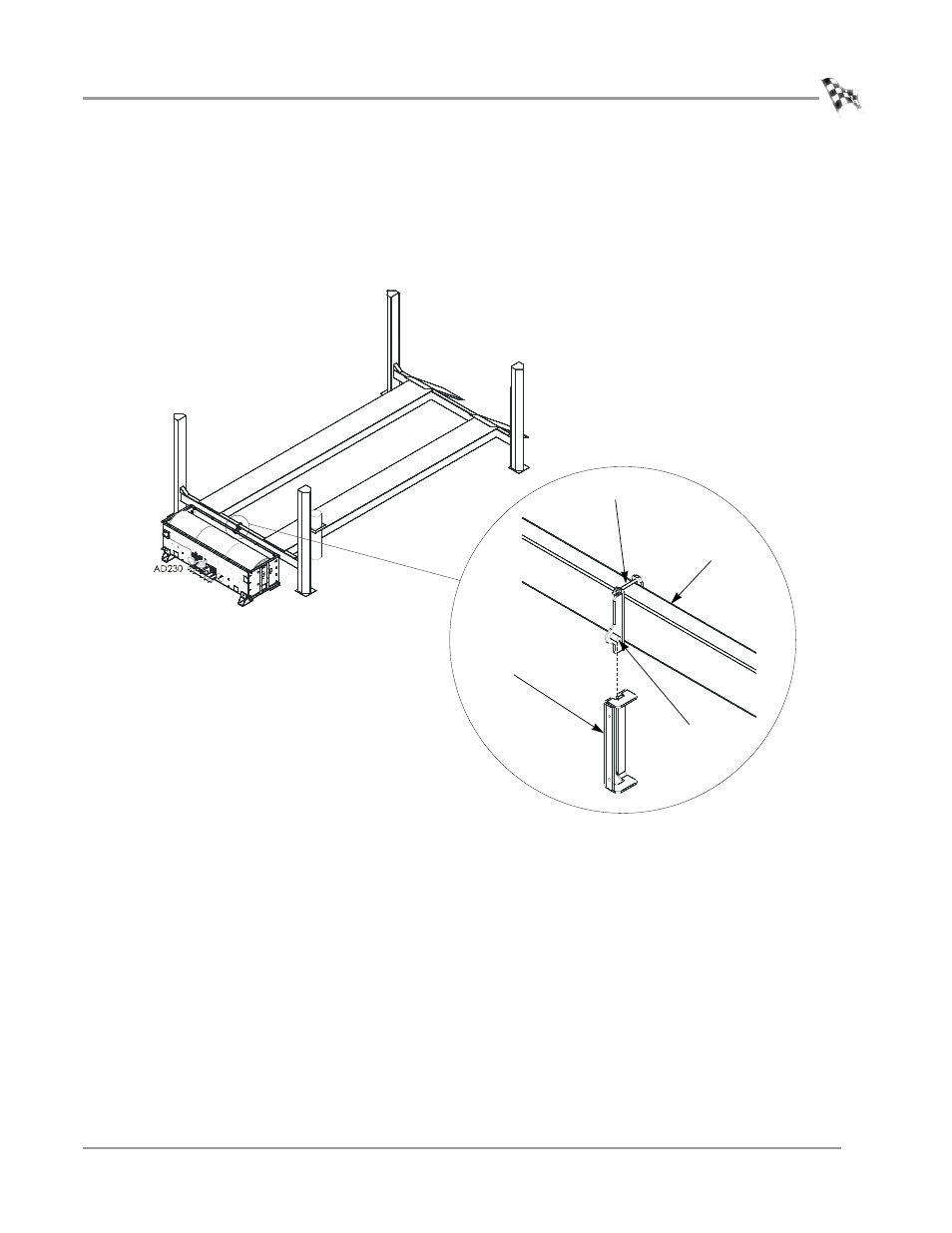

Figure 2-5: Align the Interface Bracket and the Interface Guide
interface bracket
on dyno
(dyno not shown
for clarity)
pin
mounting bolt
lift cross member
