Above Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
C H A P T E R 3
Cable Routing
3-16
12 Route the temperature sensor cable (N) from the stationary dyno to the Breakout
board.
Refer to page 3-14 for more information on wiring the Breakout board.
13 Route the theta power cable (P) from the stationary dyno to your 240V power
source.
14 Route the controller cable (R) from the stationary eddy current brake to the theta
controller. Connect the cable to the theta controller.
15 Route the power cable (G) from the first cable track and connect to the power
supply. Plug the power supply into your power source.
16 Connect the power supply to the dyno electronics. Plug the power supply into
your power source.

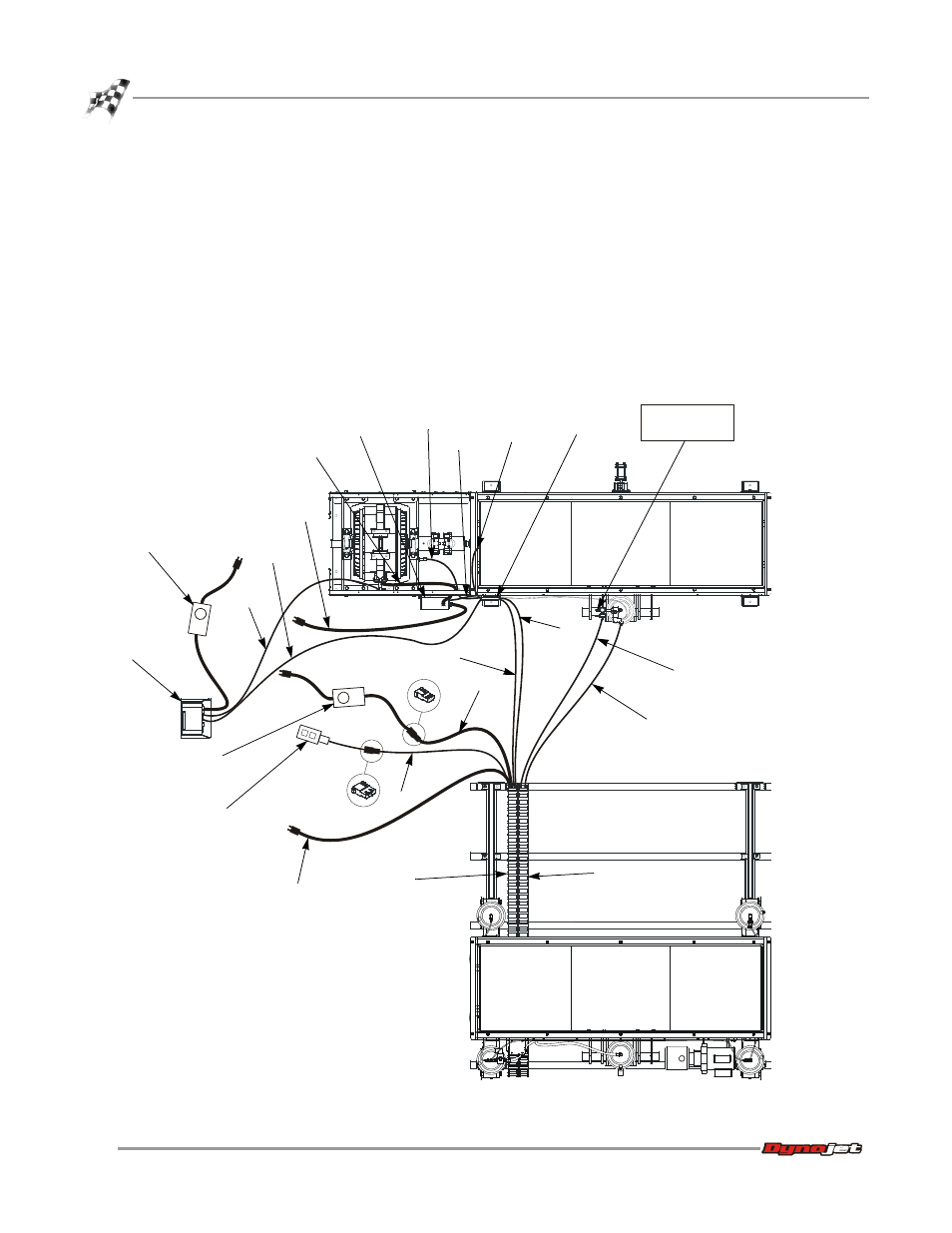

Figure 3-9: Routing the Cables—With One Eddy Current Brake
DRY AIR IN
100-140 PSI
AD372
E
C
D
dyno
electronics
stationary dyno
4WD dyno
first cable
track
F
power supply
dyno movement
pendant
power supply for
dyno electronics
breakout
board
second
cable track
J
G
I
B
P
A
N
L
theta
controller
H
R
