Above Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
A P P E N D I X C
Deck Relocation
C-8
7 Remove the outside panels.
7a
Remove the 3/8-16 x 1-inch button-head flange bolt, washer, and nut
securing the inside of the panel to the inner brace and set aside.
7b Remove the two 3/8-16 x 1-inch button-head flange bolts, two 3/8-inch
washers, and two 3/8-inch nylock nuts securing each tie down to the panel
and deck braces and set aside.
7c Remove the three 3/8-16 x 1-inch button-head flange bolts securing the
panel to the dyno frame and set aside.
7d Remove the panel and set aside.

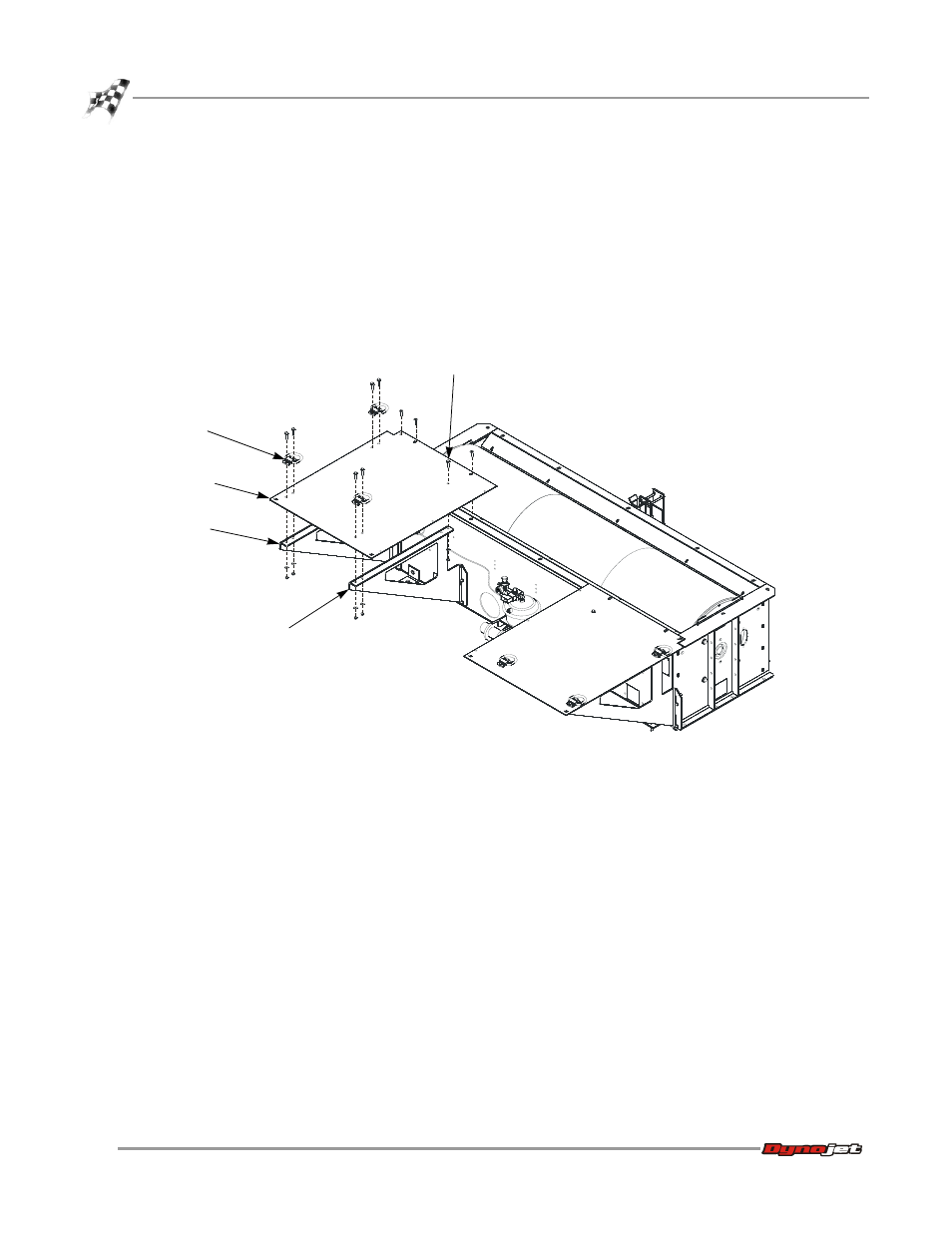

Figure C-7: Remove the Outside Panels
AD098
inside bolt
tie-down
outside panel
outer brace
inner brace
