S P E C I F I C A T I O N S A N D O P E R A T I N G R E Q U I R E M E N T S
Dynamometer Specifications and Requirements
Version 8 Above Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
1-5

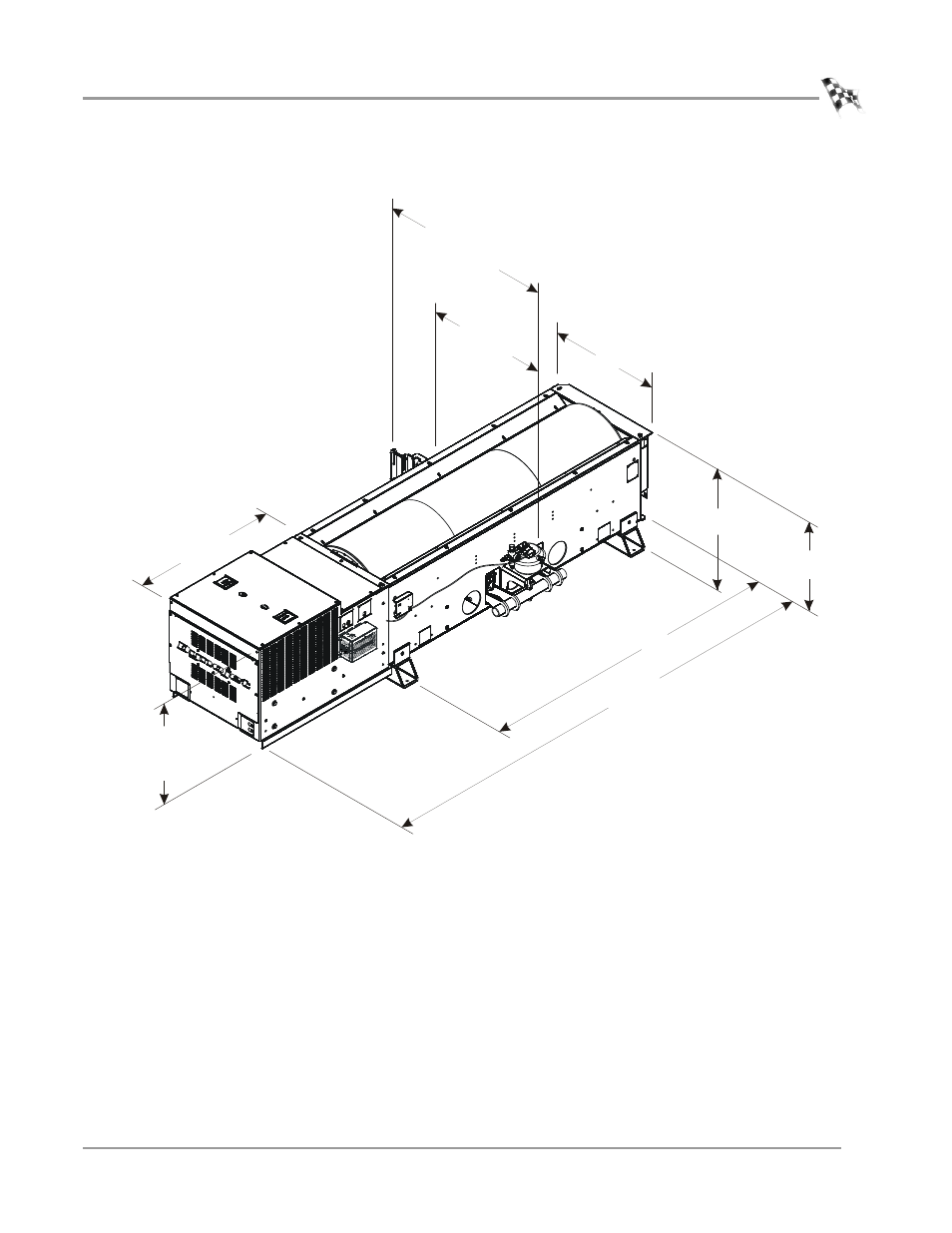

Figure 1-1: Model 424 Stationary Dyno Dimensions
AD279
93.83 cm
(36.94 in.)
frame and
air brake
115.49 cm (45.47 in.)
frame, air brake, and
interface kit
321.23 cm (126.47 in.)
frame and brake
65.58 cm (25.82 in.)
brake only
80.01 cm (31.50 in.)
brake to floor
106.93 cm (42.10 in.)
brake
218.44 cm (86.00 in.)
73.66 cm (29.00 in.)
72.02 cm (28.375 in.)
frame to floor
58.42 cm (23.00 in.)
frame only
