E D D Y C U R R E N T B R A K E I N S T A L L A T I O N
Eddy Current Brake Installation
Version 8 Above Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
4-11
I NSTALLING THE E DDY C URRENT B RAKE
You will need the following parts:
• 36708100 Nut, 1/2-13, Nylock-Hex (4)
• 36801080 Bolt, 1/2-13 x 1.5", Flange-Hex (4)
• 36923100 Washer, 3/8", Hardened, Flat (8)
• 36943102 Washer, 1/2", Hardened, Flat (4)
• 37620844 Woodruff Key, 1/2 x 2.75"
• DM150-019-012 Bolt, 3/8-16 x 1", Hex (8)
1 Place the key in the eddy current brake shaft keyway.
2 Place the keyed yoke onto the eddy current brake shaft.
3 Line up the eddy current brake yoke with the driveline assembly.
4 Slide the brake frame towards the dyno frame until they touch. Make sure the
brake yoke is aligned with the driveline.
Note: The stiffener plate lip slides under the dyno frame.

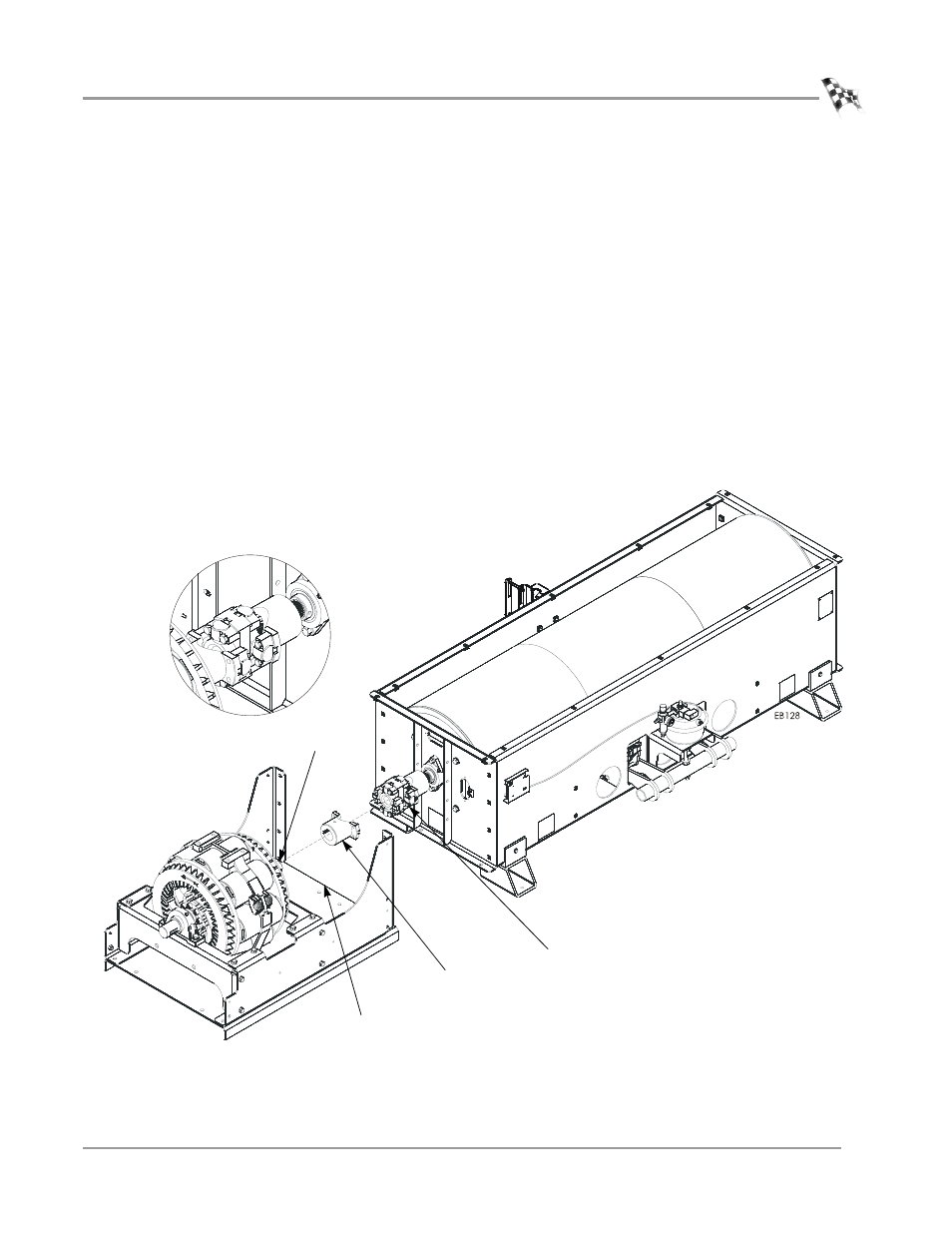

Figure 4-11: Install the Brake Assembly
yoke
driveline assembly
stiffener plate lip
place key in
keyway
