Above Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
A P P E N D I X C
Lift Kit Installation
C-16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LIFT KIT INSTALLATION
Once the deck has been removed, the lift kit must be installed. The lift kit will raise
the stationary dyno to match the 4WD dyno.
1
Remove the four Red Head anchors securing the dyno to the floor and set aside.
2
Using single loop straps and a forklift, raise the dyno off the floor.
3
Remove the bolts and washers securing the existing feet and remove the feet.
4
Secure the four new lifting feet to the bottom of the dyno using one
3/8-16 x 1.5-inch bolt, lock washer, and washer each.
5
Lower the dyno back in place in front of your lift.
6
Secure the dyno to the floor using the Red Head anchors you removed earlier.
7
Continue with upgrading your air fittings on page C-17.

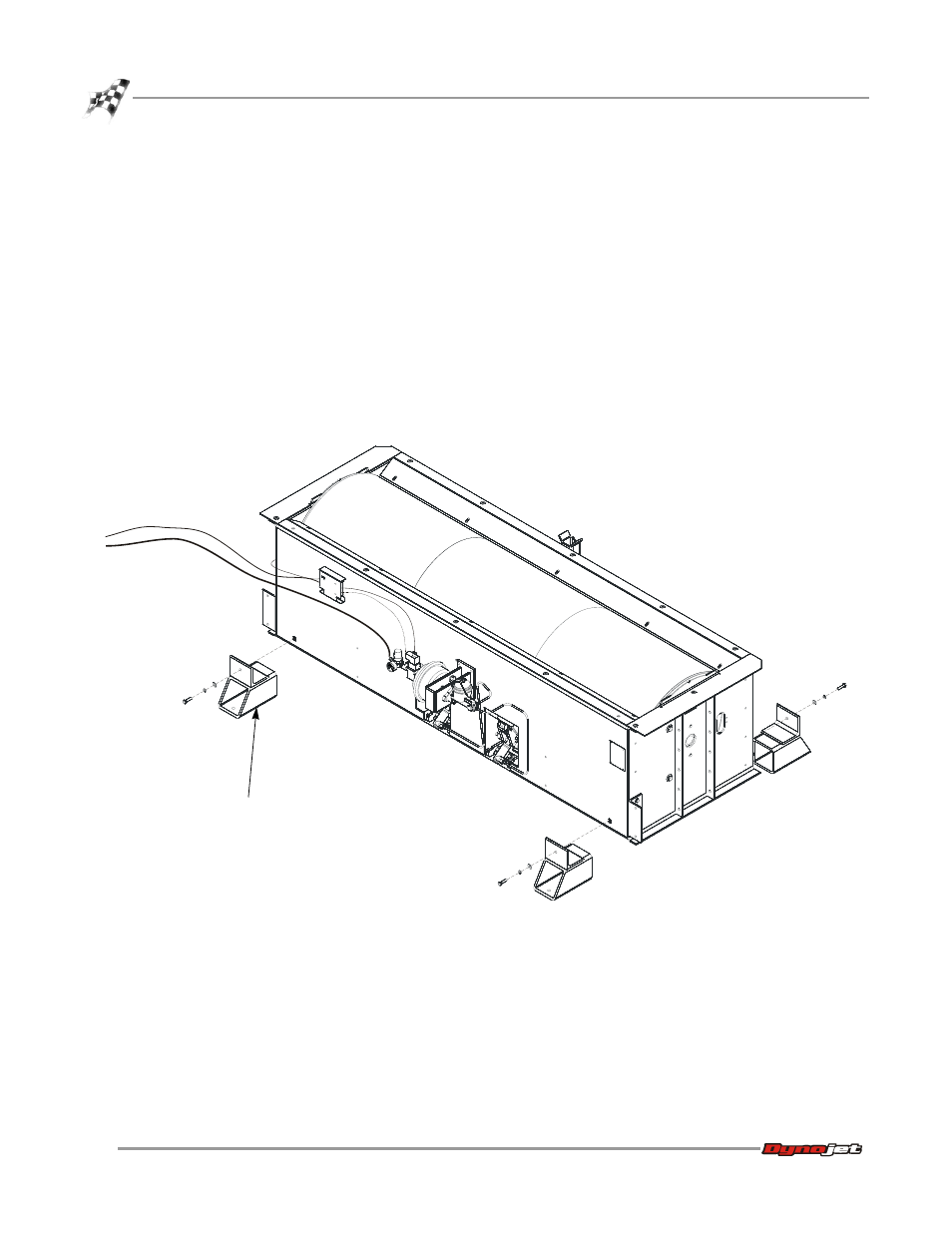

Figure C-15: Install the Lifting Feet
AD102
lifting foot
